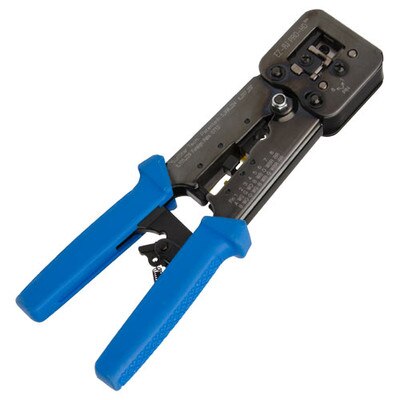

Platinum Tools EZ-RJPRO HD Crimp Tool

SKU: PL100054B

This is a popular product! Shipping is currently delayed by a few weeks, but you can still place your order. Please feel free to contact us for more information.

$78.02

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

Ratched, High Leverage Termination Platform

Crimp EZ connectors and standard modular plugs onto cables with larger jacket and conductor ODs using the Platinum Tools EZ-RJPRO HD Crimp Tool. Perfect for Cat5e, CAT6, and Cat5e/Cat6 shielded cables, the tool delivers a clean, flush trim with a patented "crimp and trim system". Its ratched, high leverage design helps professional installers achieve consistent terminations that meet FCC specifications every time.

  • Terminates larger cables
  • Built-in wire cutter and strippers
  • Meets FCC specifications

The EZ-RJPRO HD Crimp Tool is compatible with all EZ-RJ45 and EZ-RJ12/11 connectors as well as all standard modular plugs (except AMP). Its tool steel die head assembly supports the connector a full 360-degrees during the crimp. Torque loss is prevented by the tool’s zero flex frame. The EZ-RJPRO HD Crimp Tool also offers a wide surface area on contact drivers to deliver strong, reliable crimp force.

Platinum Tools Makes Connections Easy!

Platinum Tools, founded in 1997, was created based upon two very simple objectives. First, develop and source the absolute best possible solutions for the preparation, installation and hand termination of wire and cable. Second, implement an operational infrastructure that can deliver these products in an efficient, timely and high quality manner. All of our products absolutely must satisfy three critical benchmark criteria – Utility of function, Quality of function, and Economic value.

Specifications

  • Dimensions: 8½ x 2½ inches
  • Weight: 1 pound, 2.3 ounces

Compatible Connectors

  • EZ-RJ45 CAT 5E connectors
  • EZ-RJ45 Shielded CAT 5E connectors
  • EZ-RJ45 CAT 6+ connectors
  • EZ-RJ12/11 connectors and all other RJ45, RJ12 and RJ11 modular plug connectors except AMP
