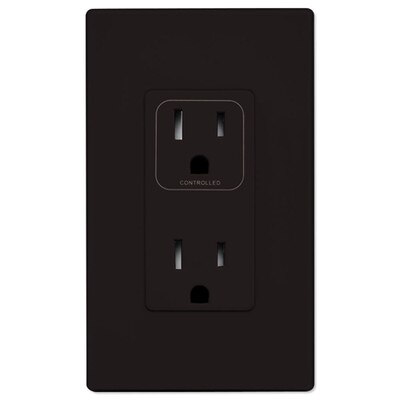

PCS SimpleWorx Split Duplex Wall Receptacle (Open Box)

SKU: PCRAM15BR_OB

Huge Savings! (All Sales Final.)

3 available at this price.

$56.00 $75.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

OPEN BOX ITEM

This product is brand new; however, we did ship it to a previous customer who promptly returned it. The product is still in great condition, but the original box may be damaged or missing. We offer FREE tech support and are selling this as is, with no returns.

Enable Remote Control for Plug-In Devices

Instantly add remote control to a plug-in device by plugging it into the PCS SimpleWorx Receptacle Module. This single-gang receptacle can replace a traditional receptacle using the existing wiring. The top outlet responds to commands from a SimpleWorx (SPC) transmitter (sold separately), while the bottom pass-through outlet stays powered continuously like a standard power outlet. It's great for controlling non-dimming lights, fans, radios, and other small household appliances.

  • Top outlet responds to SimpleWorx commands
  • Bottom outlet stays powered independently
  • Supports 120V loads up to 15A
  • Links with up to 8 SimpleWorx (SPC) transmitters
  • Meets the expanded NEC Tamper Resistant requirement

Tamper-Resistant to Protect Children

Designed with safety in mind, the module is constructed from high-impact resistant thermoplastic and is tamper-resistant to protect children, automatically shuttering its receptacles when a plug is removed. This meets the National Electrical Code standards required for residential installations.

NOTE: Wallplate not included. Requires a compatible SimpleWorx transmitter.

About SimpleWorx

SimpleWorx is a revolutionary digital point to points control system that cost-effectively provides basic on/off lighting control. SimpleWorx is powered by SPC (Simple Powerline Communication), a rock solid proven technology that offers efficient solutions for remotely turning lights on and off. SPC provides super reliable one-way control of lights and appliances using existing 120V wiring, and offers significant benefits above older powerline technologies or traditional Wired and RF solutions.

Specifications

  • Manufacturer Part #: SWX-RAM-15-BR
  • UPC: 811976014157
  • Color: Brown
  • Size: 1-Gang
  • Warranty: 5-Year

Electrical

  • Power Requirements: Primary: 120 Volts AC, 50/60Hz
  • Max. Controlling Load: 15-Amp or 1/2 hp maximum loading
  • Transmission Channels: None
  • Connections: Colored Screws
    • Brass Screw (Lower Right) – Hot/Line
    • Brass Screw (Upper Right) – Load
    • Silver Screw (Upper/Middle Left) – Neutral
    • Green Screw (Lower Left) – Ground
  • Standby Power: <0.8 Watts
  • Environmental Conditions: Indoor Use Only
  • Temperature: -40° to 140° F (-40° to 60° C)
  • Humidity: 10% to 90% RH (non-condensing)
  • Certifications: Pending; ETL tested to UL508; UL-508-2010 CSA C22.2 #14-2010

Operation

  • Status LED Indicator: Red
  • During Power Outage: Retains all settings in Non-volatile EERPOM
  • Setup Mode: Hold the setup button for 8 seconds. Located in upper ground hole

Mechanical

  • Colors: White, Light Almond, Ivory, Black, Brown, Grey
  • Mounting: Single Gang or multi-ganged junction box
  • Dimensions: 3.31(H) x 1.20(W) x 1.90(D) inches
  • Weight: 3.4 ounces
  • Warranty: 5 Years
  • US Patent No.: 6,734,784; 6,784,790; 7,265,654; 7,688,183. U.S. and foreign patents may be pending.
