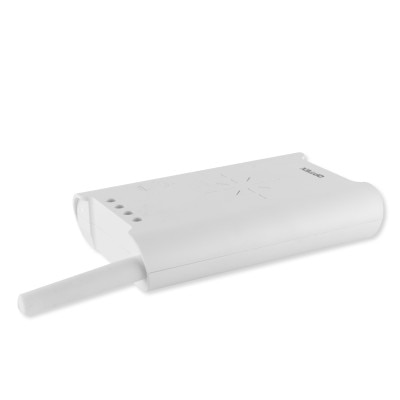

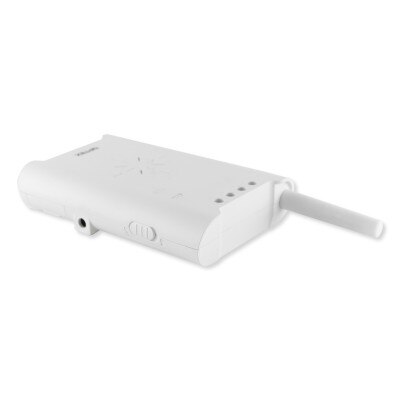

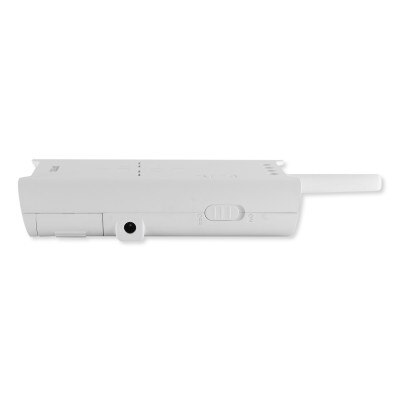

Optex Wireless 2000 Repeater

Extends Wireless Range By Up To 1,000 Feet

The Optex Wireless 2000 Repeater adds approximately 1,000 feet of wireless range between your Optex Wireless 2000 receiver (RC-20U) and Optex transmitters. The repeater supports up to four transmitters, and indicates each channel’s status with multiple LEDs. This unit is compatible with the Optex Motion Sensor (TD-20U), the Handheld Transmitter (TS-10U), and the Door/Window Transmitter (TC-10U).

• Extends wireless range for 4 transmitters
• Push button switches to select function
• Low battery and zone status LED indicators
• Powered by AC adaptor (included)

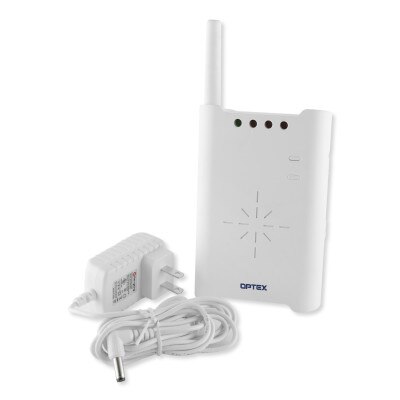

Contents

• Repeater
• AC Adaptor
• Mounting Screw

Optex – The Quality Products People Expect

Optex, Inc. markets products manufactured by Optex Company Limited. The company specializes in passive and active infrared technology, control systems, and CCTV products. Since its founding in 1979, Optex has established a worldwide reputation for quality, innovation, and technical excellence. Its products always represent an investment in performance and long-term satisfaction.

• Manufacturer Part #: TR-20U
• Power Source: 9VDC (Exclusive AC Adaptor)
• Power Consumption: 3W Max. (Including AC Adaptor 120V, 60Hz)
• Status Indicator:
• Power: Green
• Channel: Red x 3
• Frequency: 418MHz
• Operating Temperature: 15 to 120° F (-10 to 50° C)
• Installation Location: Indoors
• Weight: 6 ounces (170g)
• Warranty: 2 Year

»Optex Wireless 2000 Repeater Installation (.pdf)
