Optex BXS Back Box

Install a Secure Mount for Your Optex Device

Install a secure mount for your Optex device with the Optex BXS Back Box! This mount provides a secure install location for BXS series sensors, including wired or wireless models. The back box simplifies and secures installation of your Optex sensor so you won't have to worry about precarious installation.

• Installation box for Optex BXS sensors
• Mounts onto walls, poles, or flat surfaces (pole mount requires additional hardware)
• Houses battery or transmitter for wireless models

The Optex BXS Back Box mounts onto a wall, pole, or flat surface. Before mounting the back box, open the wiring and water drainage knockouts. For wired Optex devices, install the base unit onto the back box and complete wiring and assembly. For battery powered Optex devices, place the battery or transmitter within the back box. Once mounted, install the base unit onto the back box and complete wiring and assembly.

Contents

• Back Box Unit
• Screw Kit
• (2) Velcro Tape

NOTE: Pole mounting requires PMP-01 mounting plate, sold separately.

Optex: The Quality Products People Expect

Optex specializes in passive and active infrared technology, control systems and CCTV products for home and business security. Since its founding in 1979, Optex has established a world-wide reputation for quality, innovation and technical excellence. Their products always represent an investment in performance and long-term satisfaction.

• Manufacturer Part #:

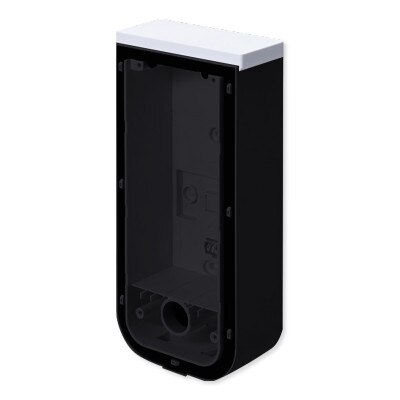

• BXS-BB (BL): Black

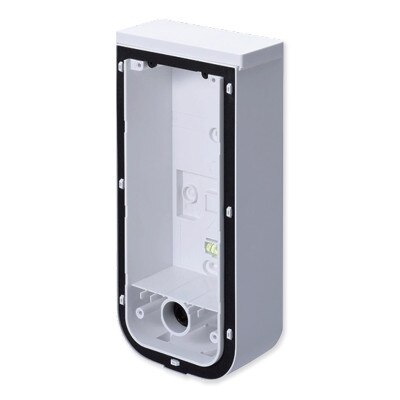

• BXS-BB (W): White

»Optex BX Shield Series Boundary Outdoor Detector Installation Manual for Battery Operated Model (.pdf)
