On-Q/Legrand Hinged Door and Trim for Plastic Enclosure

SKU: OQENPx60NA

Please Select Option To View Availability

$36.33 to $74.67

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

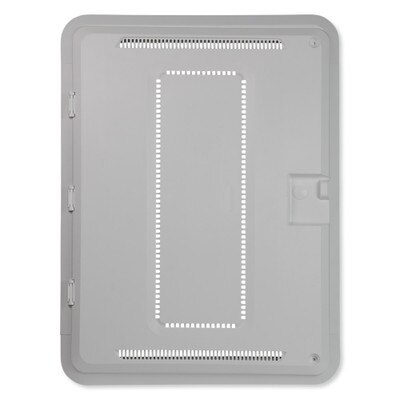

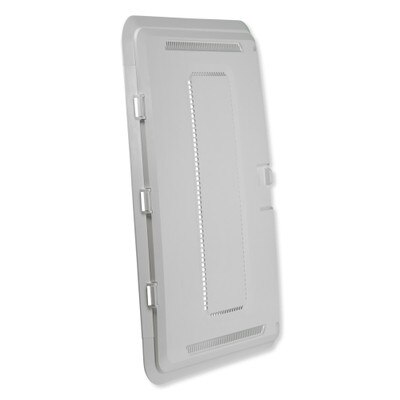

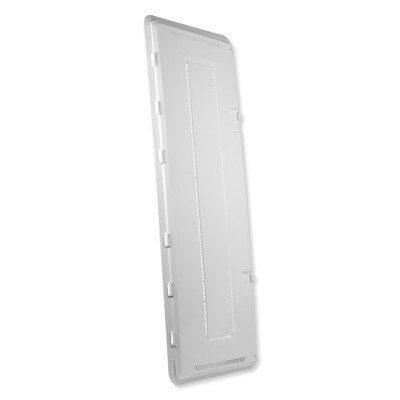

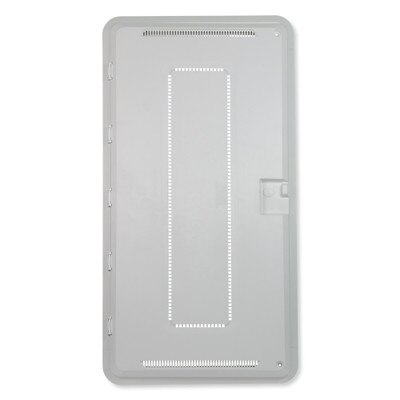

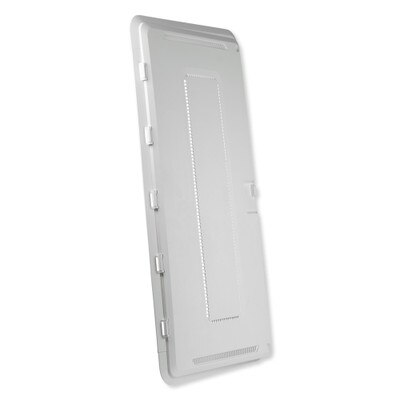

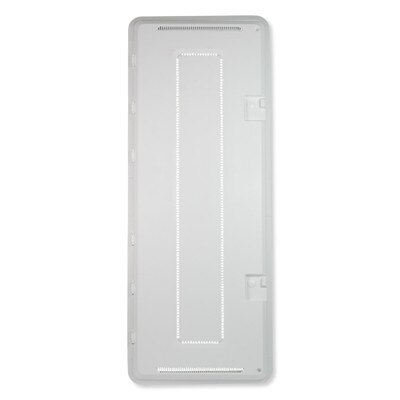

Hinged Door and Trim For On-Q/Legrand Plastic Enclosure

The On-Q/Legrand Hinged Door and Trim for Plastic Enclosure protects your structured wiring components all while maintaining easy access and adding 1.2 inches of enclosure depth. Available in three different sizes, this door covers the ENPxx80-NA plastic enclosure. It easily attaches to the 20-inch enclosure (ENP2080-NA), 30-inch enclosure (ENP3080-NA), or 42-inch enclosure (ENP4280-NA). No tools or screws are needed.

  • For use with On-Q Plastic Enclosures 20-inch (ENP2080-NA), 30-inch (ENP3080-NA), or 42-inch (ENP4280-NA)
  • Easily attaches to enclosure; no need for tools or screws
  • Adds 1.2 inches (30mm) of enclosure depth
  • Made of wireless transparent and UL-rated ABS plastic
  • Vented to provide heat dispersion for powered devices
  • Built-in latch holds the door shut and flush to the drywall

The durable ABS plastic hinged door and trim are slightly larger than the enclosure, effectively hiding rough drywall edges to create a clean, professional appearance. The design also allows for extra headroom for cables and space for third party devices. Locking can be accommodated with the provided screw holes or optional keyed lock (part # 364478-01, sold separately).

Contents

  • Hinged Door and Trim for Plastic Enclosure

Notes

  • Enclosure not included.
  • Used with On-Q Plastic Enclosures (ENP2080-NA, ENP3080-NA, and ENP4280-NA).
  • ENPxxxx-NA models are not backward compatible with previous ENPxxxx models.
  • Specified for non-fire rated walls.

Start With A Strong Foundation

From innovative enclosures to high-performance connection outlets, On-Q/Legrand products guarantee a smooth installation. Your home is a refuge from the world, a sanctuary from the elements, a place you can relax in comfort. Maximize your home living experience with innovative solutions from On-Q/Legrand. Let your family enjoy the convenience they want with the added peace-of-mind they need. On-Q/Legrand is changing the definition of home living.

Specifications

  • Manufacturer Part #:
    • 20-Inch: ENP2060-NA
    • 30-Inch: ENP3060-NA
    • 42-Inch: ENP4260-NA
  • Color: White (Paintable)*
  • Type: Enclosure

*Paintable: Rust-Oleum Paint for Plastic or Equivalent

Listing Agencies/Third-Party Certifications

  • UL 985, Household Fire-Warning System Units. ULC-S545, Residential Fire Warning System Control Units
  • UL 1023, Household Burglar-Alarm System Units. CAN/ULC/ORD-C1023, Household Burglar Alarm System Units
  • UL 2416, Audio/Video, Information and Communication Technology Equipment Cabinet, Enclosure and Rack Systems
  • UL60950-1 & CAN/CSA C22.2 No. 60950-01-07, Information Technology Equipment, Including Electrical Business Equipment
  • RoHS Compliant

Construction

  • Material: ABS Plastic
  • Product Dimensions:
    • 20-Inch: 5.77(D) x 21.77(H) x 17.1(W) inches (104 x 552.9 x 434.3 mm)
    • 30-Inch: 5.77(D) x 31.75(H) x 17.1(W) inches (104 x 807 x 496 mm)
    • 42-Inch: 5.77(D) x 43.5(H) x 17.1(W) inches (147 x 1105 x 434 mm)
  • Product Weight:
    • 20-Inch: 4.5 pounds (2.04 kg)
    • 30-Inch: 6.17 pounds (2.8 kg)
    • 42-Inch: 8.64 pounds (3.2kg)

Technical

  • Material: ABS Plastic
  • Operating Temperature: 32° to 122°F (0° to 50°C)

Eco-Benefit

  • RoHS Conformant: Yes

Downloads

»On-Q/Legrand Plastic Media Enclosures and Accessories Spec Sheet (.pdf)
