On-Q/Legrand Fiber Management Spools (Pair)

Properly Organize & Manage Fiber in Structured Wiring Enclosure

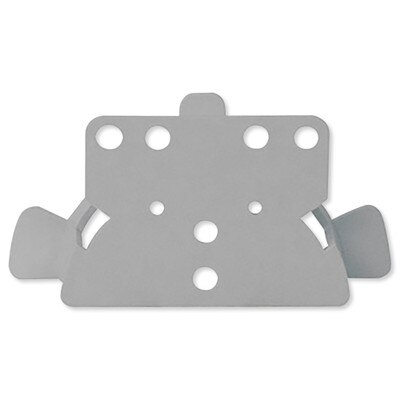

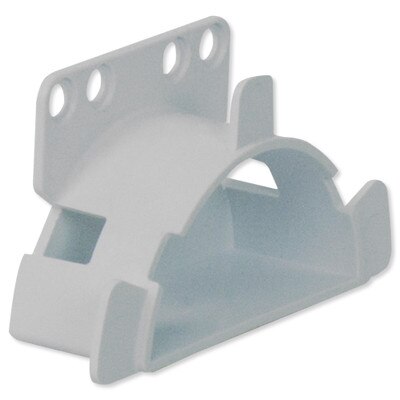

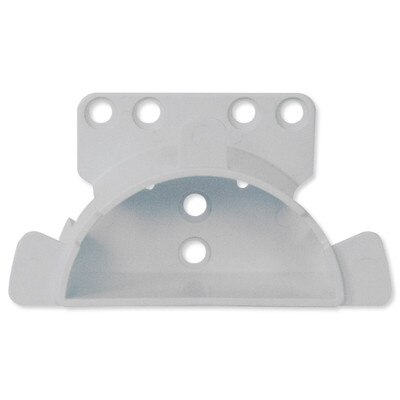

The On-Q/Legrand Fiber Management Spools (Pair) are specifically designed to help manage and organize fiber within a structured wiring enclosure. Two half-round spools are included with hole spacing to allow for either horizontal or vertical installations. The spools are designed with a 1.5-inch spool radius to maintain proper bend requirements for fiber or category cable. The spools have a 1/2-inch retention tab (helps contain excess fiber) and a notch opening to neatly secure the fiber in place with the included cable ties.

• Neatly organizes and manages fiber within a structured wiring enclosure
• Includes (2) half-round spools with multiple holes for versatile installation
• 1.5-inch spool radius maintains proper bend requirements
• Made with durable ABS Plastic
• Includes (4) plungers and grommets, and (2) 4-inch cable ties

Contents

• On-Q/Legrand Fiber Management Spools (includes 2)
• (4) Plungers and Grommets
• (2) 4-inch Cable Ties
• User Manual

Start With A Strong Foundation

From innovative enclosures to high-performance connection outlets, On-Q products guarantee a smooth installation. Your home is a refuge from the world, a sanctuary from the elements, a place you can relax in comfort. Maximize your home living experience with innovative solutions from On-Q/Legrand. Let your family enjoy the convenience they want with the added peace-of-mind they need. On-Q/Legrand is changing the definition of home living.

• Manufacturer Part #: AC1041
• Material: ABS Plastic
• Color: White
• Operating Temperature: 32° to 122° F (0° to 50° C)
• Dimensions: 4(W) x 2(H) x 1.25(D) inches (101 x 51 x 32 mm)
• Certifications: RoHS

»On-Q/Legrand AC1041 Fiber Management Spools Spec Sheet (.pdf)
»On-Q/Legrand AC1041 Fiber Management Spools Installation Manual (.pdf)
