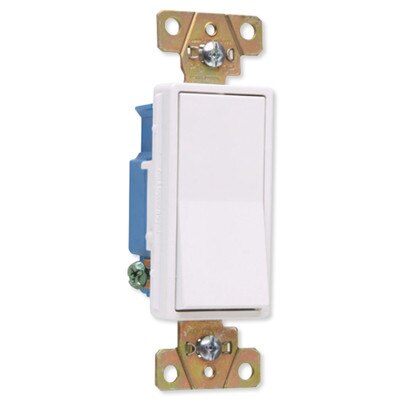

On-Q/Legrand 3-Way Decorator Wall Switch, Construction Grade
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Heavy-Duty 3-Way Rocker Switch
Built for durability, the heavy-duty On-Q/Legrand 3-Way Decorator Wall Switch (Construction Grade) is ideal for applications where long-term durability is a must. As a 3-way device, this rocker switch supports installations where two switches are needed for a single light/load, such as a hallway, staircase, etc. (Switches are sold individually.)
- Enables multi-location, 3-way control for a non-dimming load
- Impact-resistant polycarb back body and frame with heavy-gauge steel straps
- Single rocking butterfly contact design has fewer moving parts
- Cushioned thermoplastic paddle ensures smooth, quiet operation
- Supports screw-pressure-plate back wiring or side wiring
- Mounts in a standard electrical box (single-gang in size)
- Fits in any standard decorator wallplate
Uniquely Built to Endure Longer Than the Rest
The 2603 Construction-Grade 3-Way Decorator Wall Switch features smooth style and quiet operation, provided by its cushioned thermoplastic paddles. For long-lasting durability, the switch has an impact-resistant polycarbonate back body and frame, complemented by a distinctive single rocking butterfly contact, which has fewer moving parts than typical switches to ensure the rocker switch itself performs consistently over years of use. Integrally formed to the butterfly actuator are the switch's silver-alloy contacts combined with heavy-gauge straps, further bolstering durability.
Installation Details
The switch is designed for easy installation and solid connections with its internal screw-pressure-plate back and side wire capability. It requires #14 – #10 stranded or solid copper/copper clad wire, which connects to terminals made of high conductivity brass, serrated for maximum wire gripping.
Additional installation features:
- Integral auto-ground clip for positive ground to metal boxes
- Tri-drive ground, terminal, and mounting screws
- All terminal screws backed out, ready-to-install
NOTE: Wallplate not included; fits standard decorator style wallplates. 3-way operation requires more than one switch; additional switch sold separately.
Start With A Strong Foundation
From innovative enclosures to high-performance connection outlets, On-Q/Legrand products guarantee a smooth installation. Your home is a refuge from the world, a sanctuary from the elements, a place you can relax in comfort. Maximize your home living experience with innovative solutions from On-Q/Legrand. Let your family enjoy the convenience they want with the added peace-of-mind they need. On-Q/Legrand is changing the definition of home living.
Specifications
- Manufacturer Part #: 2603W
- Number Of Poles: 3-way
- Wiring: Back and Side
- Style: Decorator
- Color: White
- Amps: 15A
- Volts: 120/277VAC
- Dimensions: 1.06(D) x 3.531(H) x 1.3(W) inches
- Country Of Origin: Mexico
- Buy American Act Status: Trade Agreement Act Compliant
- Approvals: UL Listed, File Number E140597, Standard UL20, General Use Snap Switches. CSA Certified, File Number LR17446, Standard CSA-C22.2 No. 111
- General Use Snap Switches.
- CSA Listing Info: C22.2 111
- CSA Standard: Yes
- UL Listing No: 20
- UL Standard: Yes
- UN SPSC: 39121507
- Warranty: 1 Year
Electrical
- Dielectric Withstand Voltage: 1500V Minimum
- Maximum Working Voltage: 277VAC
- Overload: Minimum 4.8 times rated current for 100 cycles
- Temperature Rise: 30°C maximum at rated current
- Maximum Continuous Current: 277VAC
- Endurance: 10,000 cycles minimum, resistive, inductive, tungsten filament lamp load
Mechanical
- Terminal Accommodations: #14 AWG – #10 AWG
Environmental
- Flammability: UL94 V2
Materials
- Back Body: Polycarbonate
- Frame: Polycarbonate
- Paddle: Thermoplastic
- Terminals: Brass
- Terminal Screws: Tri-Drive Brass-Plated Steel
- Strap: Steel
- Pressure Plate: Steel
- Contacts: Silver Cadmium Oxide
- Spring Arm: Brass
- Bumper: Rubber
- Spring: Zinc-Plated Steel
- Ground Terminal: Brass
- Ground Screw: Tri-Drive Zinc-Plated Steel
