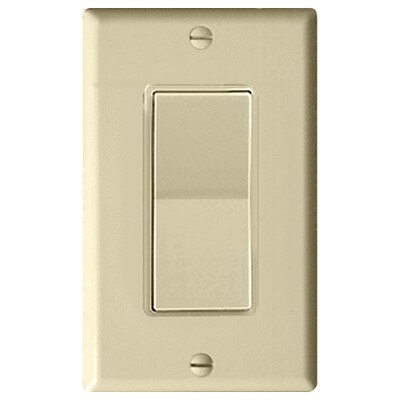

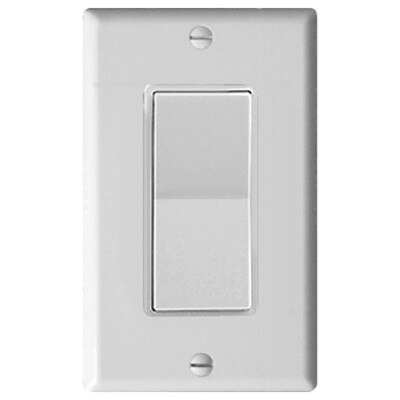

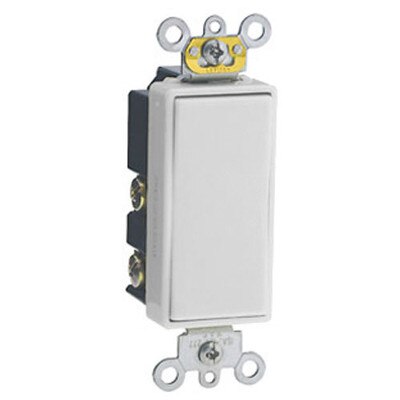

Leviton Decora Plus Wall Switch for Window Motors, Momentary Contact
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Momentary Contact Wall Switch, Single-Pole, Double-Throw
The Leviton Decora Plus Wall Switch is a momentary switch used to control window motors. It is a 15 Amp, 120 / 277 Volt, Double-Throw, Center-Off, Single-Pole AC Quiet Wall Switch. This Window Motor Control Rocker Switch is Commercial Grade and self grounding.
Complete Scene Solutions
Leviton's Decora Home Controls (DHC) Residential Powerline Carrier components provide homeowners with everything needed for programmed and manual control of lighting and appliances using their home's existing AC wiring.
Leviton's DHC components feature new programmers, controllers and receivers with Scene Lighting Capability for coordinated, whole-house lighting control.
Specifications
- Manufacturer Part #:
- Ivory : 5657-2I
- White : 5657-2W
- Ground: Self Grounding
- Feature: Double-Throw Ctr-OFF Momentary Contact
- Amperage: 15 Amp
- Voltage: 120/277 Volt
- HP Rating: 1/2HP-120V 2HP-240V-277V
- Max Amp: 12 Amp
- Termination: Back and Side
- Standards and Certifications: UL/CSA
