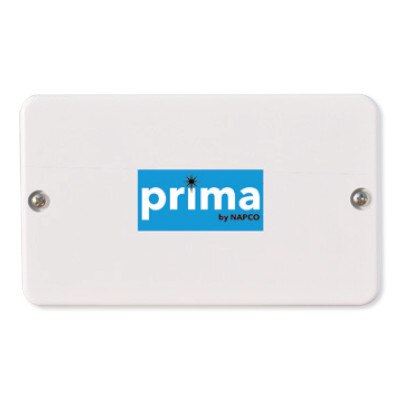

Napco Prima Hardwired 8-Zone Takeover Conversion Module, 433 MHz

Convert Wired Sensors Into Wireless 433MHz Sensors

Add wireless connectivity and Napco Prima compatibility to existing wired sensors with the Napco Prima Hardwired 8-Zone Takeover Conversion Module. This signal conversion module converts up to 8 wired sensors into wireless 433MHz transmitters to include into your Napco Prima system via the Prima Super Panel. This device helps reduce installation costs of new or retrofit systems by making use of any existing wired devices. Only one fire zone, e.g. a smoke alarm, can be paired with a single Takeover Module, and only 4 Takeover Modules can be installed into a single Napco Prima system.

• Converts 8 hardwired devices/zones into 8 wireless zones
• Ideal for Retrofitting Existing Systems' Hardwire Sensors into the Prima Wireless System to save costs & time
• Only 4 Takeover Modules can be installed into a single Napco Prima system
• Status LED shines through housing cover

Installation Details

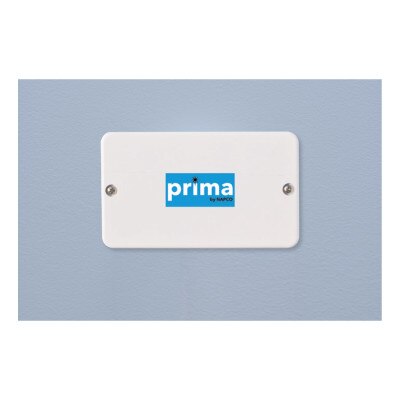

The Napco Prima Hardwired 8-Zone Takeover Conversion Module mounts near the Napco Prima Super Panel with the included mounting hardware. The module supports up to eight hardwired zones total, and all zones act as supervised wireless zones.

Napco Prima App

The Napco Prima App, for iOS and Android devices, gives you full control from any remote location via a smartphone. Arm or disarm your alarm system, lock or unlock doors, control your smart lighting, and interact safely with visitors at your front door through the video doorbell. You'll be able to keep an eye on what matters the most at home with indoor/outdoor cameras, plus, save energy costs by adjusting the smart thermostat or setting schedules to manage heating and cooling automatically. The Napco Prima App provides real-time alarm status of your security system and sends instant alerts whenever your security alarm detects an event.

Contents

• Takeover Module
• Mounting Hardware
• User Manual

NOTE: Use 2.2K eol resistor for Fire applications.

Prima Wireless: Proven To Outperform The Competition

Prima by Napco is Napco Security Technologies's professional line of home security products that provide everything you need in a smart security system. Prima by Napco systems utilize multiple wireless communication protocols, including Z-Wave, Wi-Fi, and cellular networks to remain always online to alert you of emergencies, changes in device statuses, and more. Control Prima systems on-site using touchscreen controller panels such as Napco's Prima Super Panel or the iBridge Touchscreen. Stay remotely connected to your Prima system from anywhere with the Prima mobile application; from the app you can check on your system and connected devices, review notifications, and make settings or active device adjustments. Prima systems include optional central station monitoring for additional security monitoring and integration with home automation systems.

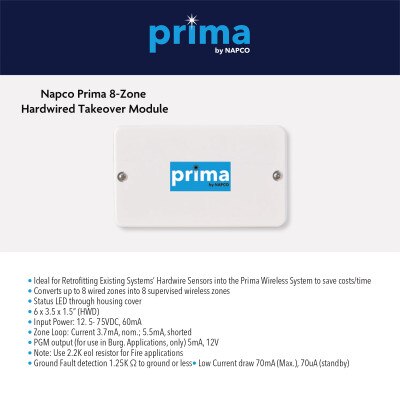

• Manufacturer Part #: PHW8RETRO
• UPC: 785026613211
• Wireless Frequency: 433 MHz Long Range Wireless
• Wireless Signal Range: Up to 492 ft.*, open air, with Security Panel
• Dimensions: 6" H x 3.5" W x 1.5" D
• Input Power: 12VDC Nominal, 650mA max.
• Zone Loop: Current 3.7mA, nom.; 5.5mA
• Warranty: 2 Year

»Napco PHW8RETRO Prima 8-Zone Hardwired Takeover Module Spec Sheet (.pdf)
»Napco Prima Series Brochure (.pdf)
»Napco Prima Series Installation Manual (.pdf)
