Napco Prima System with 3 Door/Window Transmitters & Motion Sensor, AT&T Network

All-In-One Home Security And Automation Kit With AT&T Connectivity

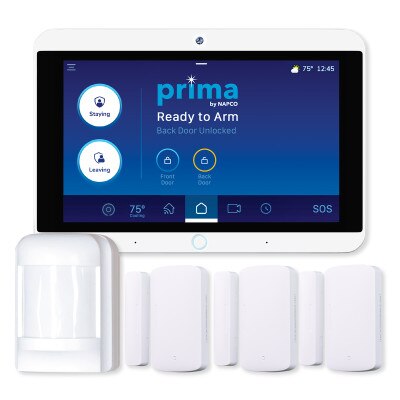

Add an all-in-one home security and automation solution to your property with the Napco Prima System with Window/Door & Motion Sensors, AT&T Network. This kit includes a Napco Prima 7" Super Panel, 3 Window/Door Transmitters, a Motion Sensor, and an HD Video Doorbell – all of which provide an excellent foundation for a reliable home security system. The Napco Prima Super Panel is designed to work as an all-in-one solution to control smart devices for security, fire, HD Video, and Z-Wave Plus automation. It uses dual-path connectivity through Wi-Fi and AT&T's cellular network to ensure a strong, fast, and reliable connection so that if one communication path fails, the other will continue to keep the system monitored. With Z-Wave Plus control, you'll be able to integrate many smart devices such as smart thermostats, smart locks and garage doors, smart lighting and appliances; plus, utilize voice control with personal speaker devices from Amazon Alexa. You'll be able to control the system locally from the panel or via your smartphone using the Napco Prima mobile app, for iOS and Android devices. With the app, you can customize your settings, manage multiple accounts, receive real-time alarm status and alerts, arm your home security, monitor your home with indoor/outdoor cameras, and much more.

• Home security and automation kit includes the Prima 7" Super Panel, a motion sensor, and 3 door/window transmitters
• Dual connectivity with Wi-Fi and AT&T's cellular network provides a fast and reliable connection
• 7-inch full-screen capacitive color display (1024 x 600) with clear, graphical buttons
• Built-in camera, microphone, and speaker allows 2-way video communication with connected cameras and video doorbells
• Self-Healing, for Wi-Fi Video Doorbell and Cameras, auto-corrects network connectivity behind-the-scenes
• PIR Motion Sensor detect human-shaped movement up to 32.8 ft. (10m) away
• 433MHz Window/Door Transmitter alerts you to changes in status of monitored door or window
• HD Video Wired Doorbell with Self-Healing Wi-Fi captures footage in clear 1080p HD video from its 2MP camera
• Receive notifications and manage devices remotely through the Napco Prima App for iOS and Android devices

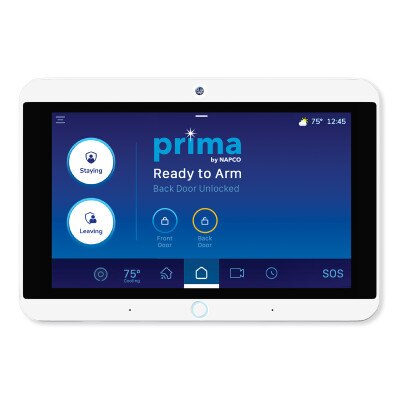

Napco Prima 7" Super Panel

The Napco Prima 7" Super Panel works as a self-contained security video and smart home automation system. It's powered by Android's 7.1 OS and features a 7" color capacitive touchscreen display (1024x600) and a built-in 5MP color camera that allows two-way live video communication with other connected indoor/outdoor cameras or video doorbells. The panel can support up to 128 security zones with Encryption and up to 40 users: one master, one duress, and 38 normal users. It comes with connectivity for Wi-Fi dual band 2.4 and 5 GHz (802.11 a/b/g/n), cellular AT&T, and Z-Wave Plus with S2 Encryption (BT enabled). Its wide 7" design allows users to easily see the graphical buttons and status bar icons so that navigating the security and automation system is a breeze. The Napco Prima Super Panel includes a Desktop Mounting Bracket and a Flush Wall Mount Backboxx to help make installation quick and easy.

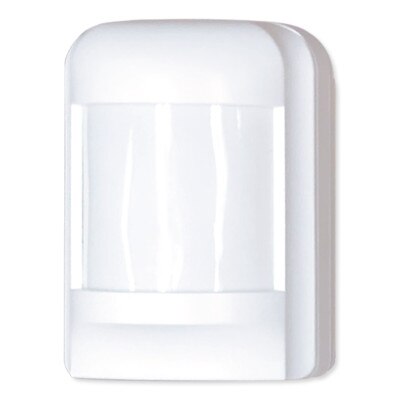

Napco Prima Wireless Motion Sensor

Receive reports when movement is detected within your building with the Napco Prima Wireless Motion Sensor with Pet Immunity, 433 MHz. This passive infrared (PIR) motion sensor detects human sized movement and alerts a connected Prima receiver or security panel when it is triggered. The sensor has a detection range of 32.8 feet and ignores movement from pets or small animals weighing up to 65 pounds. The PIR Sensor is housed in an insect-safeguarded enclosure which prevents insects, draft and dust from damaging internal components, ensuring reliable performance. The sensor also sends alerts when someone is attempting to tamper with or damage the sensor.

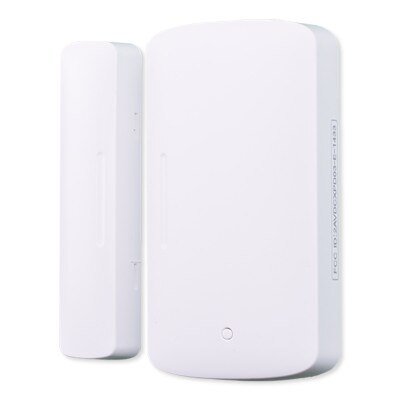

Napco Prima Wireless Window/Door Transmitter

Expand the coverage of your Napco Prima Security System with the Napco Prima Wireless Window/Door Transmitter. The wireless door/window sensor is used to monitor a door or window and alert you to changes in status or when the sensor is being tampered with. The sensor consists of two components, a magnet and sensor, which trigger an alert that is sent to a connected Prima receiver to indicate a change in position status. The sensor includes 1-way encryption to protect it from unauthorized intrusions or hacking, and will also notify you if the sensor is tampered with. Two CR2032 lithium coin cell batteries ensure long-lasting performance and minimizes the hassle of regular battery replacements.

Napco Prima App

The Napco Prima App, for iOS and Android devices, gives you full control from any remote location via a smartphone. Arm or disarm your alarm system, lock or unlock doors, control your smart lighting, and interact safely with visitors at your front door through the video doorbell. You'll be able to keep an eye on what matters the most at home with indoor/outdoor cameras, plus, save energy costs by adjusting the thermostat or setting schedules to manage heating and cooling automatically. The Napco Prima App provides real-time alarm status of your security system and sends instant alerts whenever your security alarm detects an event.

Contents

• Napco Prima 7" Super Panel
• (3) Napco Prima Window/Door Sensors
• Napco Prima Motion Sensor
• Desktop Mounting Bracket
• Flush Wall Mount Backboxx
• Mounting Hardware
• Manual

Notes

• Requires Napco Prima App (iOS and Android) for remote management and control.
• Prima Plans are available and can be activated on NapcoComnet.com.

Prima Wireless: Proven To Outperform The Competition

Napco's crystal-control Prima wireless products have been proven by an independent testing laboratory to outperform competitive products, with long-range RF reliability, as much as 50% higher than other brands. Prima's uncommon crystal-control precision and omnidirectional circuitry, ensures the wireless/hardwire systems you provide your customers will dependably deliver the security and trouble-free, peace-of-mind they deserve for many years to come. All Prima panels and receivers seamlessly support the full line of Prima transmitters and virtually all panels, keypads, receivers and peripherals are compatible with each other and work the same, model to model.

• Manufacturer Part #: PKIT1A
• UPC: 785025612429

Napco 7" Super Panel

• OS: Android 7.1
• Storage: 8GB EMMC
• LCD: 7" Color, 1024 x 600, Capacitive Touch
• LED: RGB, Status Indicator
• Camera: 5MP Color
• LEDs: RGB Main Button, Status Indicator
• Microphone: x2 Stereo Microphones, Echo Cancellation
• Speaker: x2 Stereo Speakers, 1W
• Siren: Piezo Buzzer, SPL 85dB, min.
• Main Button: Multi-functional
• Secondary Button: Reset, Pinhole
• Tamper: Switch + G-Sensor
• Wi-Fi: Dual Band 2.4GHz & 5GHz, 802.11 a/b/g/n
• Ethernet: 1000 Base via Type-C to RJ45 cable
• Cellular: AT&T
• Z-Wave: Z-Wave Plus, S2 Encryption and BT Enabled
• Transmitters: Patented "Super-D" 3D Antenna, 433 MHz, Encrypted, Up to 820 feet
• Case: PC+ABS, White
• Mounting Options: Tabletop, Wall Backbox (both included)
• Battery: Rechargeable 3600mAh 3.7V Li-poly Battery, Min. 24Hr Backup
• Smart OTA Updates: 'Future-Proofs' system & enables push of new updates
• Power Supply: 12V 2.5A DC Adaptor, Input 100-240VAC 50/60Hz
• Power Inputs: Micro USB, Screw Terminal
• Operating Temperature: 14° to 122°F (-10° to 50°C)
• Storage Temperature: -40° to 176°F (-40° 80°C)
• Height: 5.4(H) x 7.7(W) x 0.75(D) inches (137 x 196 x 19mm)
• Weight: 1.1 lbs (without accessories)
• Compliances/Regs: ETL Listed to UL 985, 1023, 1637; SIA CP01, Z-Wave, FCC, CE
• Warranty: 2 years

Napco Prima Wireless Window/Door Transmitter

• Sensor Type: Window/Door Transmitter
• Connectivity: 433MHz
• Long Range: 820 feet
• Security: 1-Way Encryption, Tamper Supervised
• Battery Life: 7yrs
• Warranty: 2 years

Napco Prima Wireless Motion Sensor

• Range: Up to 32.8 ft. (10m)
• Sensitivity Modes: Low & High, Pet Friendly
• Long Range: Up to 820' open air
• Encryption: 1-Way
• Long Battery Life: 5yrs
• Battery: Includes CR123A Lithium Battery 3V
• Mounting: Self-Stick Tape and/or optional screws
• Complies: UL 639,ULC S306
• Warranty: 2 years
