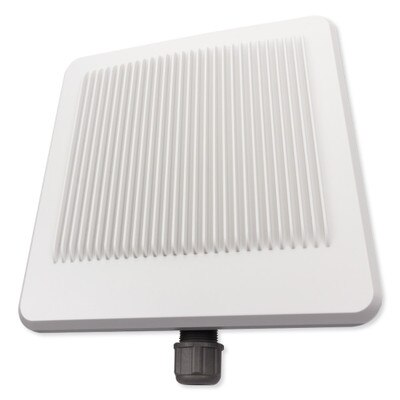

Luxul AC1200 High Power Dual-Band Outdoor Access Point

SKU: LXXAP1440

Usually ships in 3-5 days.

$Dealer

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

DEALER ONLY ITEM: Not Available Directly to End Users.

Dealers, please call to purchase. »Sign up to become an authorized installer.

Deliver Dual-Band High Speed WiFi Outdoors

Deliver high speed Wi-Fi coverage across outdoor areas with the Luxul High Power Dual-Band Outdoor Access Point. This wireless access point delivers superior WiFi coverage across 2.4GHz and 5Ghz frequencies to outdoor areas with speeds up to 866 Mbps. The Outdoor Access Point can be set up as the single wireless gateway to your local network or as one of multiple access points within a single network. It's weather resistant design allows it to be either wall or pole mounted.

  • Weather resistant IP-65 rated wireless access point brings WiFi coverage outdoors
  • Deliver data up to 300 Mbps at 2.4GHz and 866 Mbps at 5GHz
  • Supports high-bandwidth tasks including HD streaming, video surveillance, or gaming applications
  • Supports up to 4 SSID's per Band, up to 8 SSIDs total
  • VLAN supports creation of a secure guest network
  • Compatible with the Luxul XWC-1000 Wireless Controller
  • PoE connection simplifies installation

Luxul ProWatch Provides Off-Site Monitoring

ProWatch is a free cloud management solution that provides app-based remote monitoring and management of your network devices from anywhere with an Internet connection. ProWatch consists of three classifications: ProWatch Enabled, ProWatch Integrated, and ProWatch+.

  • ProWatch Enabled products are designed with ProWatch compatibility to provide remote access and monitoring of the device, deliver alert notifications and firmware updates, and allow for remote rebooting of the device.
  • ProWatch Integrated products are devices that have been added into a ProWatch connected network and are capable of reporting information to the network.
  • ProWatch+ products allow non-ProWatch enabled devices to be controlled remotely and report information as if they were native ProWatch Enabled devices.

As a ProWatch Enabled device, this device can be remotely monitored and controlled via the ProWatch software, receive OTA firmware updates, deliver notifications, and remotely restarted.

Contents

  • High Power Dual-Band Outdoor Access Point
  • PoE injector
  • Mounting kit
  • Water resistant cable gland
  • Ethernet Cable
  • Quick Install Guide

Notes

    Simply Connected Network Design

    Luxul is a leading innovator of custom IP networking solutions and installations. Luxul provides a complete line of network devices and accessories for residential and commercial applications that serve to streamline network design and functionality. With Luxul, installers can deliver scalable IP networks that are easier to install and configure compared to traditional networking systems.

    Specifications

    • Manufacturer Part #: XAP-1440
    • UPC: 655003920376
    • Standards: IEEE, 802.11b/g/n
    • Interface: One 10/100/1000M Port
    • Antennas:
      • Two Internal Antennas (2.4GHz, 5bdi)
      • Two Internal Antennas (5GHz, 7bdi)
    • Button: Reset
    • Power Supply: 802.3 at PoE (injector included)
    • Power Consumption:
      • Average Power Consumption: 12W
      • Max Power Consumption: 17W
    • Frequency: 2.4GHz and 5GHz
    • Wireless Speed:
      • 2.4GHz: 300Mbps
      • 5GHz: 866Mbps
    • Wireless Security: WPA-PSK, WPA2-PSK, WPA/WPA2/AES
    • Operating Mode: Wireless AP (doesn't support bridging)
    • Other Functions and Features:
      • Remote Web Management
      • System Logging
      • Backup & Restore Configurations
      • VLAN/Guest Network Support
      • QoS Support
      • Up to 4 SSIDs
      • Firmware Upgradeable via Browser
    • Operating Temperature: -4°F to 122°F (-20°C to 50°C)
    • Dimensions: 9 (L) x 9 (W) x 2.13 (H) inches (229 x 229 x 54 mm)
    • Certification: FCC, RoHS, IC, RCM
    • Warranty: 3-Year Limited
