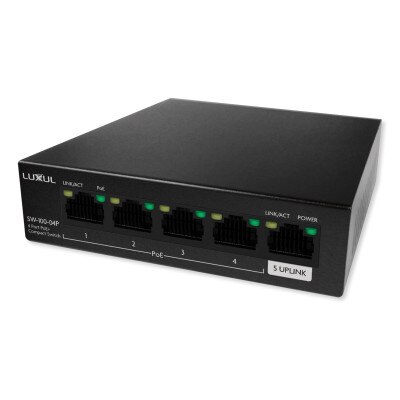

Luxul 4 Port Unmanaged PoE+ Switch

SKU: LXSW10004P

Usually ships in 3-5 days.

$Dealer

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

DEALER ONLY ITEM: Not Available Directly to End Users.

Dealers, log on to see pricing. »Sign up to become an authorized installer.

Power Ethernet Connected Devices Through Your Network Switch

Power and connect Internet-connected devices with the Luxul 4 Port Unmanaged PoE+ Switch. This plug-and play network switch supports Gigabit speeds to distribute between 4 connected devices. Each Ethernet port supports Power-over-Ethernet (PoE) for powering PoE-enabled devices such as automation hubs, video surveillance cameras, WiFi routers, and more. All network ports are located on the rear of the device, while front facing LEDs display connection and power status for each connected device, and can be chosen to be either green or blue. The switch can be placed onto a level surface or mounted into a standard equipment rack.

  • Gigabit network switch supports up to 4 PoE-Enabled Devices (Max Output 58 Watts)
  • Supports various applications including home automation, video streaming, video surveillance, etc
  • Surge-Protection for each individual port
  • Detachable wing brackets and magnet feet allow for multiple mounting options
  • Fanless design for silent operation

Contents

  • Network Switch
  • Power Supply
  • Rubber feet
  • Quick Install Guide

Notes

  • Ethernet cable (sold separately).
  • Requires Internet connection to view documentation online.

Simply Connected Network Design

Luxul is a leading innovator of custom IP networking solutions and installations. Luxul provides a complete line of network devices and accessories for residential and commercial applications that serve to streamline network design and functionality. With Luxul, installers can deliver scalable IP networks that are easier to install and configure compared to traditional networking systems.

Specifications

Requirements

  • Devices supporting 802.3 Ethernet, 802.3u Fast Ethernet, or 802.3ab gigabit Ethernet
  • Ethernet cable (sold separately)
  • Internet connection to view documentation online

Technical Details

  • Manufacturer Part #: SW-100-04P
  • Number of Ports: 4 port Gb PoE+ with uplink
  • Switching Capacity: 0 Gbps
  • LEDs:
    • Power
    • Link/Act
    • PoE Status
  • Power Supply: External power supply
    • Input: 100-240VAC, 50/60Hz

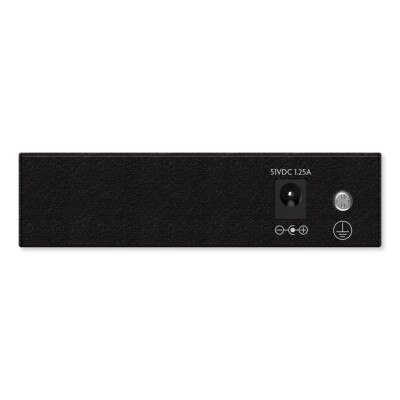

    • Output: 51VDC, 1.25A
  • External Power Supply:
    • Input: 100-240VAC, 50/60Hz
    • Output: 51VDC, 1.25A
    • Max Power Consumption: 5.8W min to 63W max
  • Power Budget: 58W
  • Surge Protection: 6KV
  • Dimensions: 3.9" L x 3.9" W x 1.1" H (100 L x 100 Wx 26 H mm)
  • Weight: 1.25 lbs (0.57 kg)
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Operating Humidity: 10% to 90% (Non-condensing)
  • Standards: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af, IEEE 803.at, IEEE802.3ab
  • Certifications: CB Report, CE, CE-EMC, CE-LVD, FCC, IC, RCM, RoHS, UKCA
  • Warranty: 3-Year Limited

Downloads

»Luxul SW-100-04P 4 Port Gb PoE+ Switch w/ Uplink 58W Spec Sheet (.pdf)
»Luxul SW-100-04P Compact Desktop PoE+ Switch Quick Start Guide (.pdf)
