Linear Multi-Code Key Ring Transmitter, 1-Channel

Miniature Key Ring Transmitter

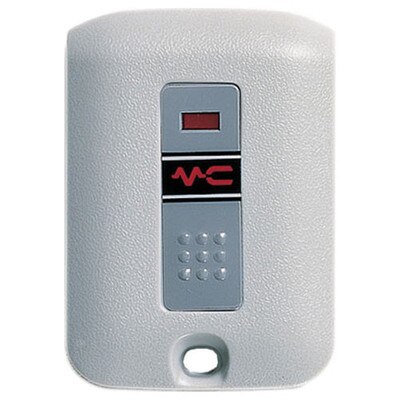

The Linear 307010 1-Channel Key Ring Transmitter is a miniature style transmitter designed for automatic door and gate operator applications.

This transmitter is a single-channel device, pressing the pushbutton will send a signal to the receiver. The transmitter has a red test/operate indicator and is powered by a 12-volt battery. A molded-in hole in the case is for attaching the transmitter to a key ring.

The transmitter is Multi-Code format with one 10-position coding switch providing 1,024 possible codes. The transmitter will only activate receivers set with the same code.

The 307010 is compatible with 300 MHz Multi-Code receivers and Model 109950 and 302850 receivers.

Security Products, Access Control & More By Linear

For more than forty years Linear LLC has been known as a worldwide provider of radio based transmitters and receivers for the traditional security market. Millions of Linear transmitters have been sold over the years. Linear security products are offered via a worldwide network of distribution. While Linear continues to be a leading supplier of devices for the security market, we have expanded our product lines to include focused product lines in the Access Control, Remote Control and Garage Door Operator markets.

• Compatible with 300 MHz Multi-Code receivers
• Powered by 12-volt battery
• Easy access to battery and coding switch
• 1,024 codes RF frequency: 300 MHz
• 1.5" W x 2" H x 0.625" D

»Linear 3070 Multi-Code Key Ring Transmitter, 1-Channel Installation Manual (.pdf)
