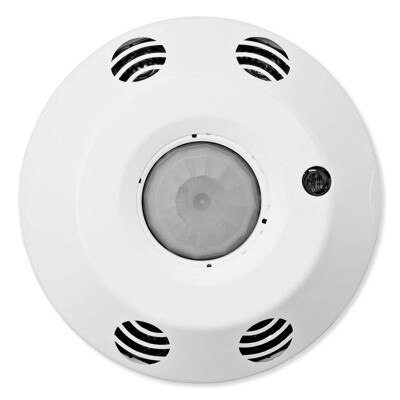

Leviton Smart Ceiling Mount Sensor (CMS), Multi-Tech, Switching, 2000 Sq. Ft. Coverage

Program Lights In Occupied Or Vacant Rooms

Trigger various smart devices in your building with the Leviton Smart Ceiling Mount Sensor! This multi-technology occupancy sensor utilizes passive infrared (PIR) and ultrasonic detection methods to accurately sense occupancy and vacancy in areas up to 2,000 square feet in order to enhance energy efficiency and lighting control. Its sleek, low-profile ceiling-mount design ensures discreet installation while providing reliable, hands-free lighting control. The CMS's advanced technology allows it to perform in standalone settings thanks to its occupancy/vacancy sensing and versatile automation settings. Through the Smart Sensor mobile application, the CMS is easily configured for occupancy/vacancy sensing, controlling one or two ambient light hold-OFF zones, triggering compatible devices such as plug-in modules or smart receptacles, and UL924 emergency lighting.

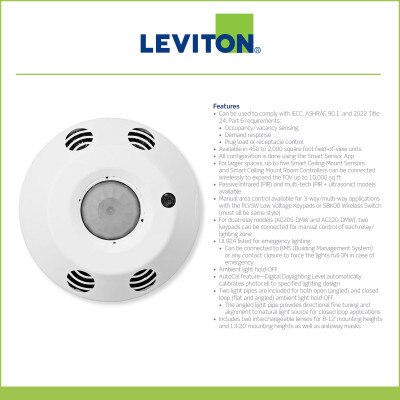

• PIR and Ultrasonic sensor detects motion, light, and sound to report changes in status and trigger preconfigured automations
• Configure automated scenes with defined inputs (manual control, demand response, or emergency lighting)
• Auto calibration feature, Digital Daylighting Level, automatically calibrates photocell to specified lighting design
• Includes two interchangeable lenses for 8-12' mounting heights and 13-20' mounting heights as well as aisleway masks

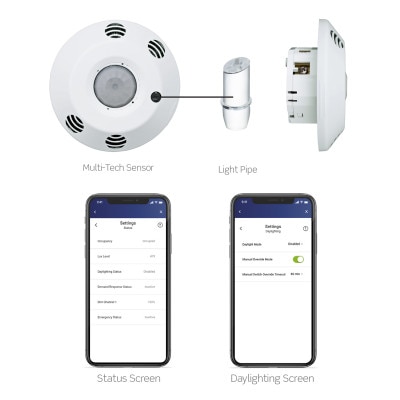

• Configure automations, adjust settings, and receive alerts through the Smart Sensor app for iOS and Android
• Pair the CMS Sensor with other compatible Leviton devices (keypads, switches, receptacles, room controllers) for multi-way applications and automated scenes
• Network up to five Smart Ceiling Mount Sensors and Smart Ceiling Mount Room Controllers to expand the FOV up to 10,000 sq ft

Multi-Technology Motion Detection

Multi-technology motion sensors utilize both PIR and ultrasonic technologies for advanced false alarm immunity. The sensor receives infrared (IR) signals to detect distortion of the infrared area and identify movement by a heat source. Ultrasonic (doppler shift) motion sensing, in contrast, works like radar by sending out high-frequency sound waves and detecting how fast those waves bounce back to the sensor.

Multi-technology motion detectors are best suited to enclosed spaces where occupants show only low levels of motion (classroom, conference room, etc.). These motion detectors are not well-suited to environments with high air flow levels, such as a warehouse.

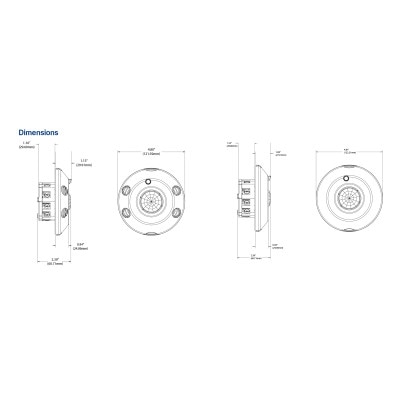

Installation Details

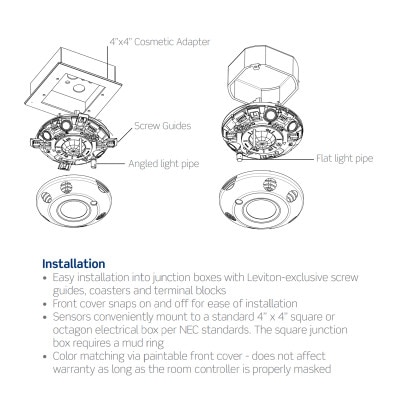

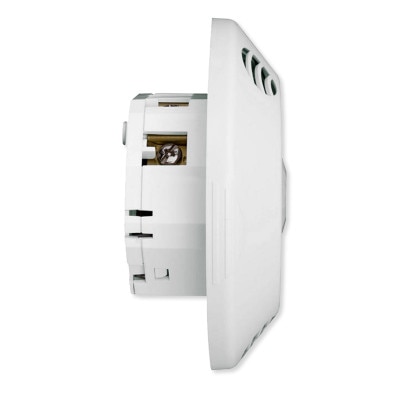

The Leviton Smart Ceiling Mount Sensor (CMS) features easy installation into junction boxes with Leviton-exclusive screw guides, coasters and terminal blocks. The CMS Sensor conveniently mounts to a standard 4" x 4" square or octagon electrical box per NEC standards. An included front cover snaps on and off for ease of installation. The Sensor's front cover is paintable to match your ceiling or wall colors and blend in seamlessly.

Contents

• Sensor
• 4" x 4" Mounting Plate
• (2) #6-32 x 1-1/2" Screw
• Mid-Range Lens [red frame]
• Extended Range Lens [black frame] (assembled)
• High voltage terminal covers
• Angled Light Pipe
• Flat Light Pipe (assembled)
• 360° Perforated Mask
• Low-voltage Connector
• Half Mask
• Tubing Barrier

NOTE: Requires a mud ring for installation into a square junction box.

About Leviton

Leviton is the smart choice, providing the most comprehensive range of solutions to meet the needs of today's residential, commercial and industrial buildings. Leveraging more than a century of experience, Leviton helps customers create sustainable, intelligent environments through its electrical wiring devices, network and data center connectivity solutions, and lighting energy management systems. From switches and receptacles, to daylight harvesting controls, networking systems, and equipment for charging electric vehicles, Leviton solutions help customers achieve savings in energy, time and cost, all while enhancing safety.

• Manufacturer Part #: ACS20-DMW
• UPC: 078477355237
• Electrical:
• Input Voltage:
• 120V, 50/60Hz
• 230V, 50Hz
• 277V, 50/60Hz
• Load Rating:
• 8A, LED/Electronic Ballast, 800W/VA, Tungsten, Ballast, 1/4 HP Motor
• 6A/6AX, LED/Electronic Ballast, Magnetic Ballast, 1,200W/VA, 1/3 HP Motor
• 5A, LED/Electronic Ballast, 1,200VA, 1/3 HP Motor
• Current Consumption: 60-30mA
• General:
• Daylighting Zones: Single and dual zone ambient light hold-OFF available
• Field of View:
• PIR: 450 sq ft to 1,500 sq ft with included lenses
• MT: 500 sq ft and 2,000 sq ft
• Ultrasonic Frequency: 32 Khz
• Photocell: 0-200FC (0-2,000 LUX)
• Wireless: Bluetooth 2.4 Ghz, 50ft max
• Environmental
• Operating Temperature: 32 to 104°F (0 to 40°C)
• Storage Temperature: -15 to 160°F (-26 to 71°C)
• Relative Humidity: 0-90% non-condensing
• Other:
• Energy Codes: Can be used to comply with IECC, ASHRAE 90.1 and 2022 Title 24, Part 6 occupancy/vacancy sensing, demand response and plug load or receptacle control requirements
• Listings: UL773A (Occupancy Standard), UL924 (Emergency Equipment), cUL listed, NOM certified, RoHS compliant, NY LLC48 compliant
• Warranty: 5-Year Limited

»Leviton ACS20-DMW Smart Ceiling Mount PIR and Multi-Technology (M/T) Sensors (CMS) Spec Sheet (.pdf)
»Leviton ACS20-DMW Smart Line Voltage Occupancy Sensors Installation Manual (.pdf)
