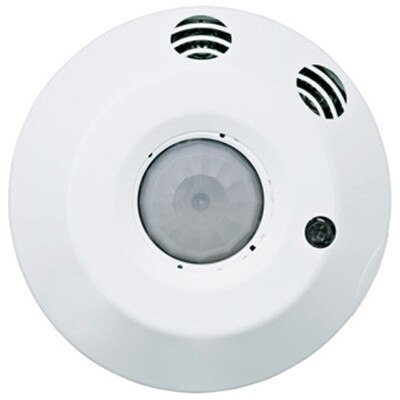

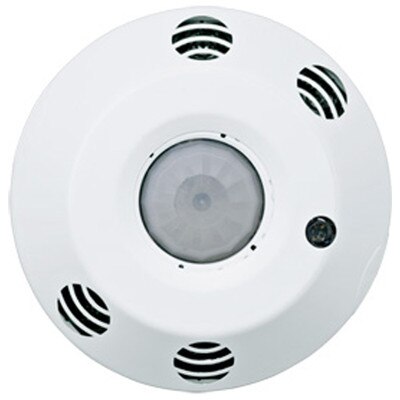

Leviton ODC Multi-Technology Ceiling-Mount Occupancy Sensor
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Automatic Lighting With Daylight Harvesting
Automate your lighting without risking wasted energy by using the Leviton ODC Multi-Technology Ceiling-Mount Occupancy Sensor. When lights turn ON/OFF according to motion detection, they are sometimes left on for too long due to false detections. This sensor's multi-technology motion detection overcomes that challenge with advanced false alarm immunity.
- Motion detection turns lights ON
- Lights turn OFF when room is vacant
- Advanced false alarm immunity
- Presentation Mode provides manual control
- Daylight harvesting capabilities
- Suitable for new construction or retrofit
Available Detection Ranges (Sq. Ft.): 500, 1,000, 2,000
Leviton's series of ODC occupancy sensors feature daylight harvesting capabilities to help you further reduce energy consumption. When daylight harvesting is integrated into your lighting control system, the sensor can adjust wired lighting according to natural daylight levels. When daylight is abundant, lights stay off. When daylight is scarce, lights turn on! And for special occasions, the sensor includes "Presentation Mode", which allows you to turn lights OFF manually and keep them OFF even while the room is occupied.

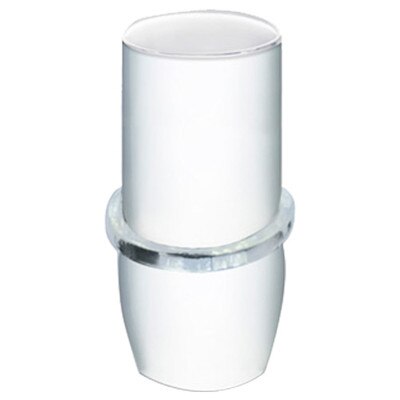

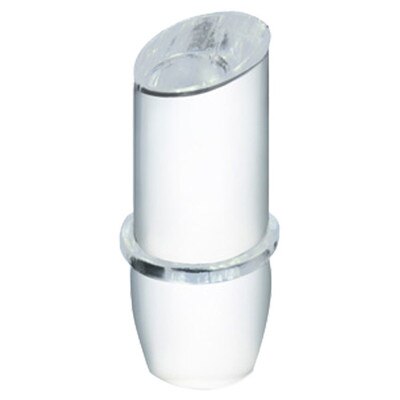

The Leviton ODC Multi-Technology Ceiling-Mount Occupancy Sensor includes an angled light pipe and flat light pipe for open loop and closed loop daylight harvesting applications. The sensor features adjustable daylight design levels: Normal (OFF), Manual (ON/OFF) and Auto Calibration. Its photocell provides Auto-Calibration (Automatic Daylight Calibration) to intelligently measure light levels and determine optimal daylight design levels for closed loop applications.
Multi-Technology Motion Detection
Multi-technology motion detectors utilize both PIR and ultrasonic technologies for advanced false alarm immunity. Passive infrared (PIR) motion sensing is the most common form of motion detection technology. The sensor receives infrared (IR) signals to detect distortion of the infrared area and identify movement by a heat source. Ultrasonic (doppler shift) motion sensing, in contrast, works like radar by sending out high-frequency sound waves and detecting how fast those waves bounce back to the sensor.
Multi-technology motion detectors are best suited to enclosed spaces where occupants show only low levels of motion (classroom, conference room, etc.). These motion detectors are not well-suited to environments with high air flow levels, such as a warehouse.
Advanced Energy-Saving Features
The Leviton ODC Multi-Technology Ceiling-Mount Occupancy Sensor features four key automated functions that maximize lighting efficiency:
- Delayed OFF Timer: The sensor will turn lights OFF if no motion is detected after a specified time. Choose a time delay of 30 seconds, or 5, 10, 20, or 30 minutes.
- Auto-Adapting: Using microprocessor-based technology, the sensor continually analyzes occupancy pattern of use and adjusts its time delay and sensitivity accordingly.
- Walk-Through: After only momentary occupancy, the sensor knows not to leave the lights ON for an extended period of time.
- False Detection Timer: Exactly 31 minutes after the lights are turned ON, the sensor scans for motion and shuts lights off, preventing false triggers from HVAC systems.
In the event of a power outage, time delay and other settings are saved. The sensor will return to its last known state when power is restored.
Installation Details
The occupancy sensor is compatible with incandescent lamps, electronic and magnetic ballasts, electronic and magnetic low-voltage transformers, and fans. It features H.I.S. (High Inrush Stability) technology designed to handle high inrush electronic ballast loads. No minimum load is required. The sensor's mechanically held 10A latching relay ensures reliable operation for any load type and reduces energy consumption better than electronically held relays.

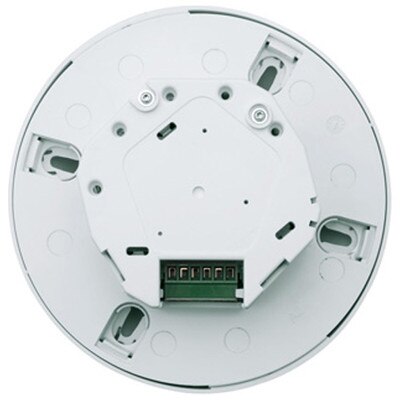

- Installs into "j" boxes with Leviton screw guides, coasters and terminal blocks
- Front cover snaps on/off for ease of installation

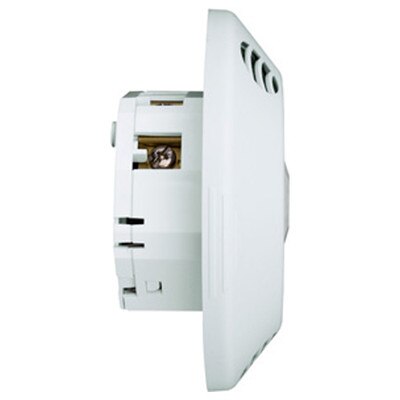

- Mounts to a standard 4" x 4" square or octagon electrical box
Because this line voltage vacancy sensor is self-contained, there is no need for an external power pack or vacancy sensor wiring.
Contents
- Occupancy Sensor
- Mid-Range Lens
- 360° Perforated Mask
- Mounting Plate (4" x 4")
- Emergency Label
- Low Voltage Connector
- (2) #6-32 x 1-1/2" Screws
- Light Pipes
- Half Mask
- Tubing Barrier
About Leviton
Leviton is the smart choice, providing the most comprehensive range of solutions to meet the needs of today's residential, commercial and industrial buildings. Leveraging more than a century of experience, Leviton helps customers create sustainable, intelligent environments through its electrical wiring devices, network and data center connectivity solutions, and lighting energy management systems. From switches and receptacles, to daylight harvesting controls, networking systems, and equipment for charging electric vehicles, Leviton solutions help customers achieve savings in energy, time and cost, all while enhancing safety.
Specifications
Product Features
- Test Mode for simplified commissioning
- Manual Switch and Emergency Override are Class 1 or Class 2 circuits
- Output short circuit protection
- Self-configuring local manual switch input
- Momentary or maintained switches are supported
- "Fail-Safe" Circuitry: In the event of product failure, Return-to-Closed feature causes the relay to default ON which eliminates safety concerns.
Technical Details
- Technology: Multi-Technology PIR/Ultrasonic
- Line Voltage: Yes
- Mount: Ceiling
- Adjustment: Self-Adjusting
- Pattern Degrees: 180
- Grade: Commercial
- Color: White
- Title 24 Compliant: Yes
Electrical
- Input Voltage: 120V, 50/60Hz; 230V, 50Hz; 277V, 50/60Hz
- Load Rating:
- 120V Input: 8A, Electronic Ballast, 800W/VA, Tungsten, Ballast, 1/4 HP Motor
- 230V Input: 6A/6AX, Electronic Ballast, Magnetic Ballast, 1/3 HP Motor
- 277V Input: 5A, Electronic Ballast, 1200VA, 1/3 HP Motor
- Current Consumption: 60-30 mA
Environmental
- Operating Temperature: 32° to 104° F (0° to 40° C)
- Storage Temperature: -15° to 160° F (-26° to 71° C)
- Relative Humidity: 0% to 90% non-condensing
Other
- Listings: CA Title 20 Compliant, UL 773A (Occupancy Standard), UL 924 (Emergency Equipment), cUL Listed, CE Compliant, NOM Certified, RoHS Compliant, NY LLC 48 Compliant
- Warranty: 5 Years Limited
