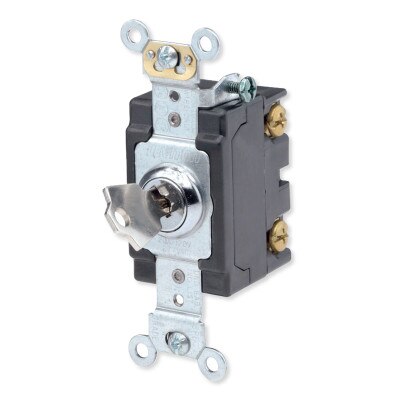

Leviton Extra Heavy-Duty AC Key Locking Switch
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Provide ON/OFF Access To Authorized Personnel Only
Never have to worry about unauthorized personnel having access to connected lights, devices, or systems with the Leviton Extra Heavy-Duty AC Key Locking Switch. This locking switch is ideal for public areas, schools, loading docks, freight yards and other areas where only authorized personnel with a key can have access to turn On or Off the locking switch to avoid accidental use or misuse of the switch. The mating key is removable in the ON position or the OFF position and the switch if constructed out of durable steel and thermoplastic materials for long-lasting protection.
- On/Off only with authorized personnel using the mating key
- Single pole AC quiet switch (20 Amp, 120/277 Volt)
- Extra heavy-duty industrial specification grade
- Back and side wire, and self grounding for easier installation
- Can replace a standard wall switch
Contents
- Leviton Extra Heavy-Duty AC Key Locking Switch
- Installation Guide
Notes
- ONLY use with copper or copper clad wires.
- DO NOT use disinfecting products, including foggers, sprays, or other types of atomized cleaning agents.
- Speciality wallplate sold separately.
About Leviton
Leviton is the smart choice, providing the most comprehensive range of solutions to meet the needs of today's residential, commercial and industrial buildings. Leveraging more than a century of experience, Leviton helps customers create sustainable, intelligent environments through its electrical wiring devices, network and data center connectivity solutions, and lighting energy management systems. From dimmers and receptacles, to daylight harvesting controls, networking systems, and equipment for charging electric vehicles, Leviton solutions help customers achieve savings in energy, time and cost, all while enhancing safety.
Specifications
- Manufacturer Part #: 1221-2KL
- UPC: 078477361986
- HP Rating: 1HP-120V 2HP-240V-277V
- Flammability: Rated V-2 per UL 94
- Product ID: Ratings are permanently marked on device
- Screw Terminal Torque: 14-18 in-lbs
- Terminal Accom: 14-#10 AWG back wired; #14-#12 AWG side wired
- Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
- Termination: Back or Side Wire
- Amperage: 20 A
- Dielectric Voltage: Withstands 1500V for 1 minute
- Endurance: 50,000 cycles minimum
- Grounding: Self-Grounding
- Overload UL20 Test: 100 cycles of OL at 4.8 times rated current
- Temperature Rise: Maximum 30 degrees C rise
- Voltage: 120/277 VAC
- Operating Temperature: -40°F to 149°F (-40°C to 65°C)
- Max. Amperage: 16 Amp
- Body Material: Thermoplastic
- Strap Material: Steel
- Wallplate: Not Included
- Standards and Certifications:
- ANSI: C-73
- CSA C22.2 No. 111: File #152105
- NEMA: WD-1 & WD-6
- NOM: 057
- UL Standard: UL 20
- Warranty: 10-Year Limited
