Legrand Vaddio Venture™ VideoBAR

An All-In-One Premium Video Conference Call Setup

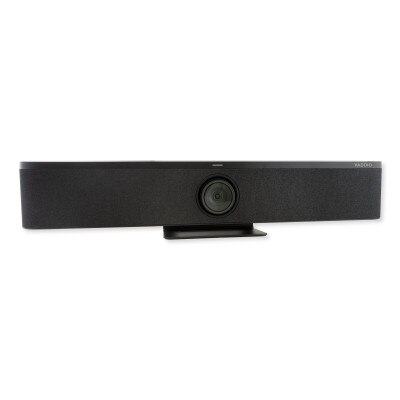

Eliminate the headache of signal and communication quality issues during video conferences with the Legrand Vaddio Venture™ VideoBAR. This cutting-edge video conferencing solution combines a 4K UHD video camera, 6-element beamforming microphone array, and a Hi-Fi speaker system into a single device designed to deliver exceptional audio and video quality for modern video meeting spaces. The VideoBAR features advanced audio and motion tracking technology that can be selected to perfectly frame and zoom in active subjects. When there are multiple subjects within a single room, the VideoBAR can be programmed to dynamically adjust focus on either active speakers or motion to help maintain focus on users in the camera's field of view. Additional features include a 110° wide-angle horizontal field of view, built-in echo cancellation and noise filtering, volume equalization, and simultaneous USB, HDMI, and IP streaming outputs.

• Video conferencing camera and speaker system delivers UHD audio/video calls with advanced audio and motion tracking capabilities
• Video camera includes 8.51 megapixel 1/2.5-type CMOS image sensor (3840 x 2160 resolution), 5x digital zoom with 110° horizontal field of view
• Premium audio In/Out with built-in Hi-Fi speakers and integrated 6-element beamforming microphone array
• Simultaneous outputs provide 4K signals from HDMI® and USB 3.0, and full HD signals via IP streaming
• Advanced audio, motion, and facial tracking technology options frame the active speaker, the whole group within a room, or present a gallery view
• Remote management and configuration with a browser-based Web UI, or a Vaddio Device Controller

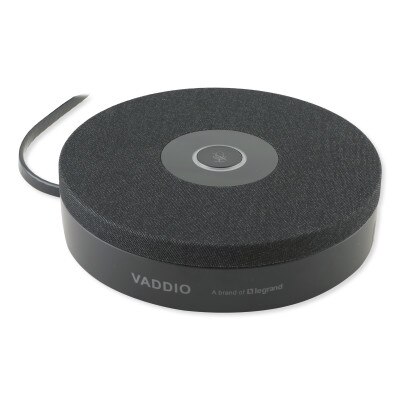

• Expand the audio pickup range by 20ft with the Venture TableMIC, sold separately

The Legrand Vaddio Venture™ VideoBAR features both manual PTZ and ePTZ control and tracking technology, offering three modes to choose from: Speaker Framing, Participant Framing, and SmartGallery. With Speaker Framing Mode: the VideoBAR utilizes its advanced facial, motion, and speaker tracking algorithms to focus on and frame a single presenter in the space. It leverages the beamforming microphone array to precisely pinpoint the speaker's position without adding distracting video motion.

In Participant Framing Mode, it can accurately identify humans within the camera's field of view and frame the entire group, tightening shots to center you or your group for your contacts. Finally, the articulating camera lens with dual motors provides smooth pan and tilt adjustments of up to ±15°, enabling the camera to frame the action in the room without relying on ePTZ cropping abilities. In SmartGallery Mode, the VAddio can be included into a multi-stream channel with other compatible IP cameras on the same network.

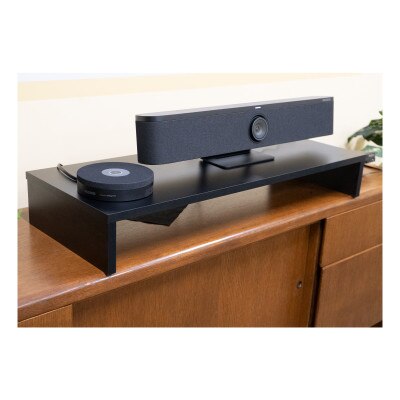

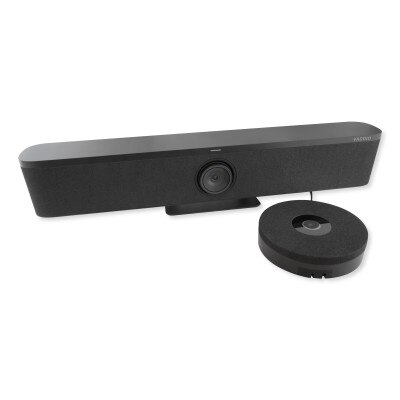

A built-in 6-element beamforming microphone array and high-fidelity speaker system ensure crystal-clear audio with natural voice reproduction. Vaddio features full duplex dialogue with built-in Digital Signal Processing, including echo cancellation, volume equalization, and noise filtering for natural communication. A built-in microphone picks up audio from up to 20 feet (6 m) away, which is ideal for small to medium offices, conference rooms, or other rooms smaller than 20 x 20 feet. If you have a large group of participants on call from one location, the VideoBAR can pair with up to 3 expansion microphones (Venture TableMIC, sold separately) to isolate and enhance voices and offer an additional 20 feet of audio range for various meeting room scenarios.

While the device does not include wireless connectivity, Ethernet connection ensures reliable, high-speed data transfer for smooth video and audio streaming. Although there is no dedicated mobile app, the device integrates effortlessly with your preferred conferencing software, providing a seamless user experience.

Installation Details

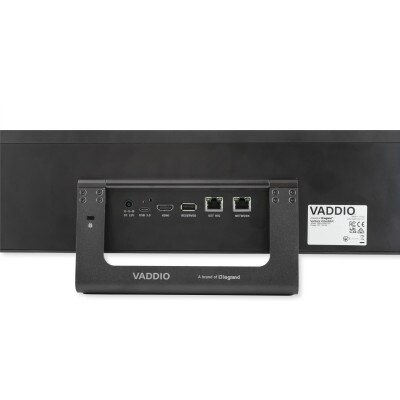

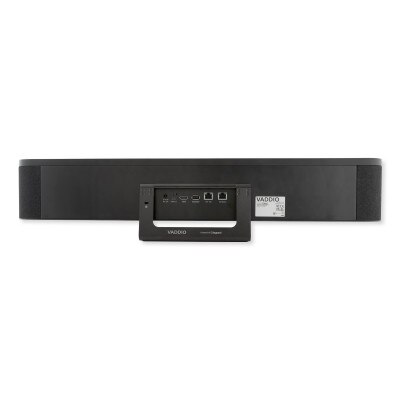

The Venture VideoBAR is a versatile plug-and-play device that offers simultaneous USB, HDMI and IP streaming outputs. Simply mount it on a display or wall using the included hardware, and connect the VideoBAR to your PC via USB 3.0 connection to begin configuration and start a video call with clear audio and 4K video within seconds. The HDMI output can be connected to a local display as a secondary monitor to mirror what the audience will see during video conferences or for you to see your contact(s) you are calling. The VideoBAR can also be used as only a speaker to play audio from calls or to stream music or other audio via Bluetooth connection, IP via Ethernet connection, or from a local device via USB connection.

A tilt-adjustable table stand and wall mount are included in the packaging for versatile mounting options. The table stand features a Kensington® lock port for added security and a rubber base for stability and noise isolation.

Contents

• Venture VideoBAR
• Venture VideoBAR Remote
• Tiltable Table Mount
• Optional Wall Mount Cleat with Mounting Hardware
• 12V Power Supply with AC Plug Sets
• 6.5 ft (2 m) Locking USB-C to USB-A Cable
• Quick Start Instructions Card

Notes

• A compatible computer or conferencing system with USB connectivity is required and sold separately.
• Ensure the device is mounted securely on a stable surface or wall for optimal performance.
• For best results, use the Venture VideoBAR in well-lit environments to maximize video quality.

Start With A Strong Foundation

From innovative enclosures to high-performance connection outlets, On-Q products guarantee a smooth installation. Your home is a refuge from the world, a sanctuary from the elements, a place you can relax in comfort. Maximize your home living experience with innovative solutions from On-Q/Legrand. Let your family enjoy the convenience they want with the added peace-of-mind they need. On-Q/Legrand is changing the definition of home living.

Audio Features

• 1 Port for optional expansion Venture TableMIC(s)
• Integrated Speaker
• Integrated Microphone Array

Technical Details

• Manufacturer Part #: 999-50909-000
• UPC: 840077508685
• Room Size Guidelines: Small to medium rooms (100 to 400 sqft rooms)
• Zoom: 5x digital
• Horizontal FoV: 110° Wide End to 22° Tele End
• Minimum Illumination: 100+ Lux recommended
• Outputs/Protocols Simultaneous: USB 3.0, HDMI, IP Streaming
• Control: Web UI, Vaddio Device Controller, and Bluetooth Remote
• Device Management:
• Compatible with Vaddio Deployment Tool for easy network device discovery, configuration and firmware updates
• No subscription required
• Quick-Connect Compatibility: No
• OneLINK Compatibility: No
• PTZ Motors: Stepper Motors
• Tri-Sync Motion: No
• Motorized Lens Pan Range: +15° to -15°
• Motorized Lens Tilt Range: +15° to -15°
• Built-in Stand Tilt Range: Manual tilt on stand: +155° to -21°
• Image Sensor Type: 1/2.5 UHD CMOS
• Pixels: 8.51 Megapixel
• Top Resolution: UHD – 2160p/60
• Invertible: Yes
• Video Signal/Noise Ratio: ≥55dB
• Operating/Storage Humidity (Relative): 20% to 80% RH, non-condensing
• Operating Temperature: 32° to 104°F (0° to 40°C)
• Product Weight: 7.35 lbs (3.3 kg)
• Dimensions: 27 W x 4.88 D x 4.5 H inches (68 W x 12.4 x 11.4 cm)
• Certifications: CE, FCC, RCM, REACH, ROHS, UKCA
• Warranty: 3 Years
