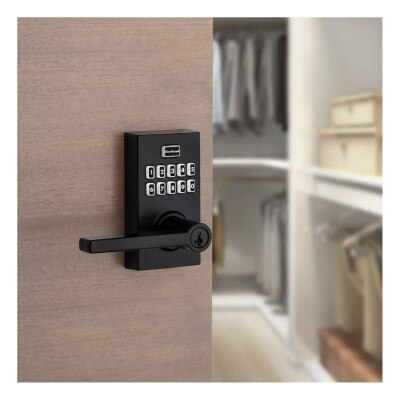

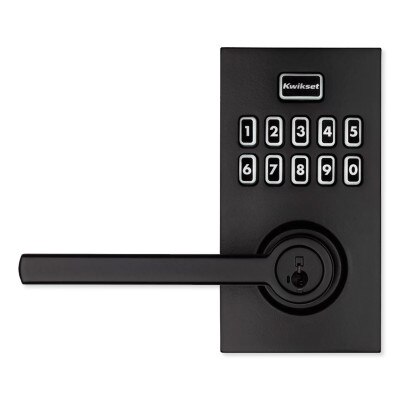

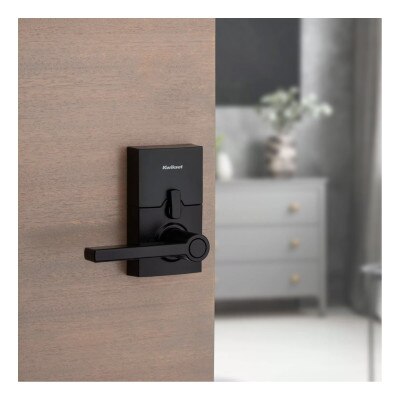

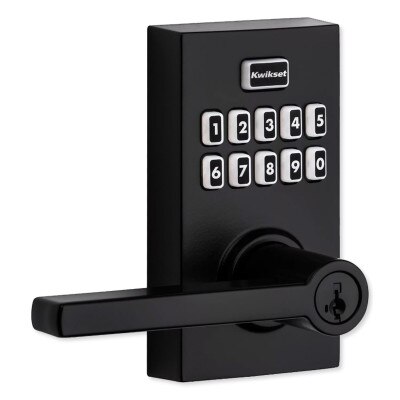

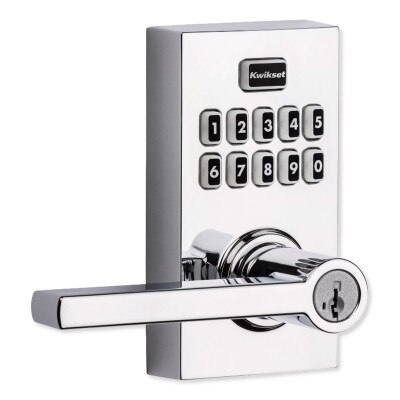

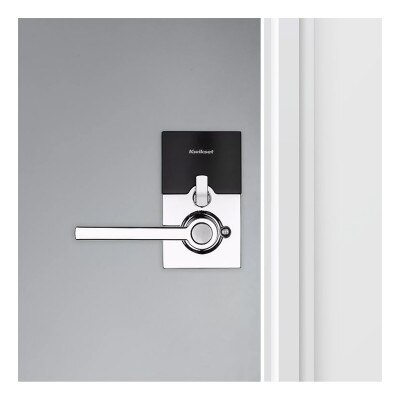

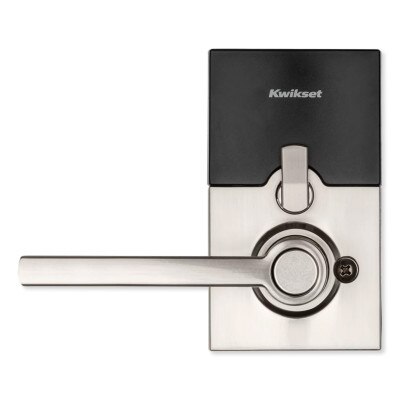

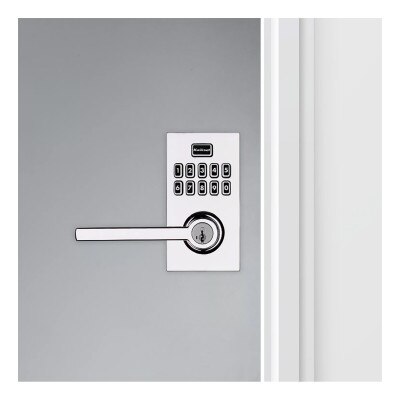

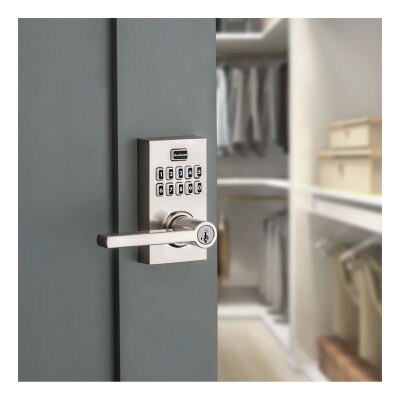

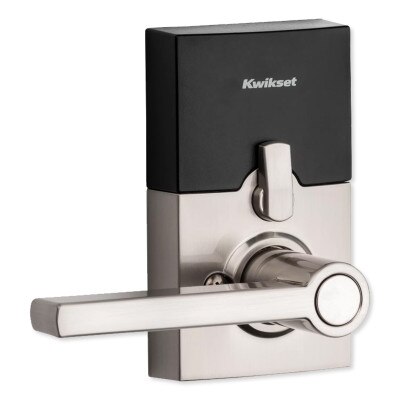

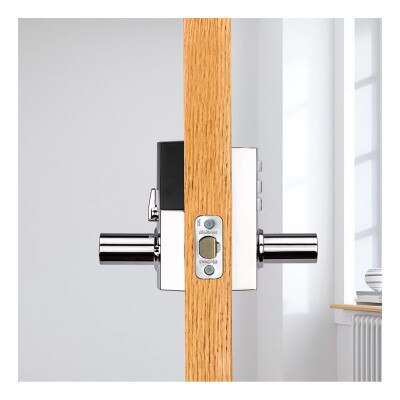

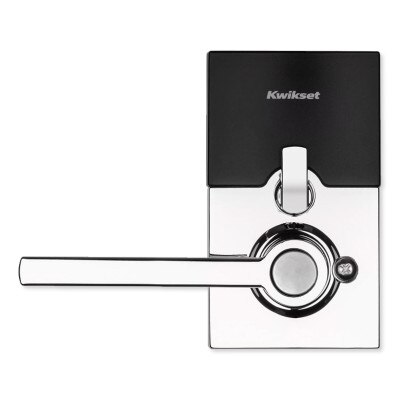

Kwikset SmartCode 917 Series Electronic Halifax Lever
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Electronic Lever With the Highest Residential Security Rating

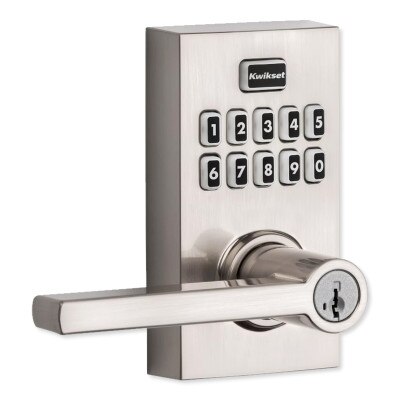

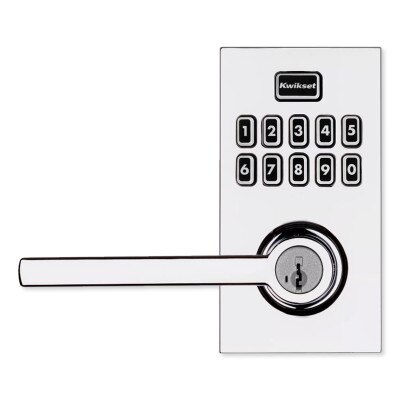

The Kwikset SmartCode 917 Series Electronic Halifax Lever combines high-quality security with an attractive modern design. This electronic lever lock adds easy, keyless entry and features 10-digit backlit pushbuttons with automatic locking and a reversible lever to fit right-hand or left-hand doors. You'll be able to program up to 30 different user codes for family, friends, or temporary guests to unlock your door; and when it comes to installation it couldn't be easier since you can replace the existing door hardware with just a single screwdriver. No hard wiring is needed!
- Lock/unlock door via passcodes or standard turnkey
- Reversible lever for both right- and left-handed doors
- Highest residential security, durability, and finish ratings
- Can be programmed from the outside with a programming code
- BumpGuard prevents lock bumping (picking)
- SmartKey Security allows you to re-key the lock yourself in seconds
- Easy installation, no wiring needed
With the highest residential security rating available, the Kwikset Smartcode 917 Residential Electronic Halifax Lever supports up to 30 different user access codes and has optional programming code functionality to manage the lock setting from the exterior keypad instead of the programming button in the interior. The keypad can also be disabled for long periods of inaccessibility, allowing the lock to be accessed by key only. In case of emergencies, one-time access codes (which will be deleted after usage) can also be created.
SmartCode Electronic Locks
With your own personal code, you can enter your home with just a few simple pushes of a button and lock it with just one. You also get more control over who has access to your home. Just assign a temporary code and delete it when you see fit. Now you can totally eliminate the need for keys. SmartCode is easy to install, program and use and operates on 4 AA batteries.
The Kwikset Electronic Lever includes three entry modes:
- Auto Lock: deadbolt locks after every entry and exit
- Passage: deadbolt stays unlocked and no key or code is required
- Disable Passage: auto-locks every time and a key or code is always required for entry
Installation Details
The Kwikset Smartcode 917 is simple to install; all you need is a screwdriver to remove your old lock and screw in your new one. The lock is powered by a standard 9V battery (included), so no wiring is required. Low battery alerts are sent out to nearby users and codes are saved even when the keypad isn't powered.

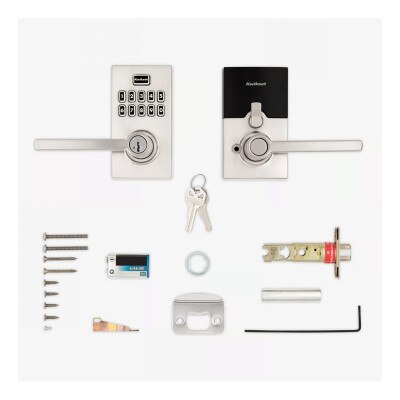

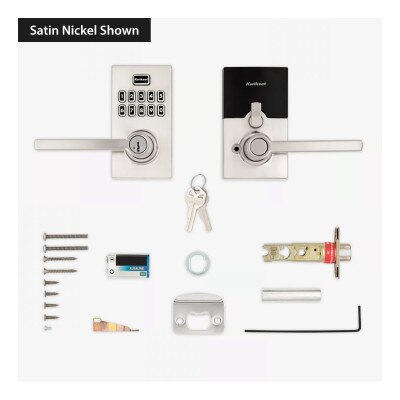

Contents
- Kwikset Smartcode 917 Residential Electronic Halifax Lever
- Mounting Hardware
- Installation Hardware
- 9V Battery
- User Manual
NOTE: Do not use an electric drill or an electric screwdriver to tighten screws.
The Best Security Is Smart Security
An established leader in lock technology, Kwikset is widely recognized for providing families security and peace of mind with high quality door locks and door hardware. No more worrying about keys! The convenience of keyless technology is now available at your fingertips.
Specifications
- Manufacturer Part #:

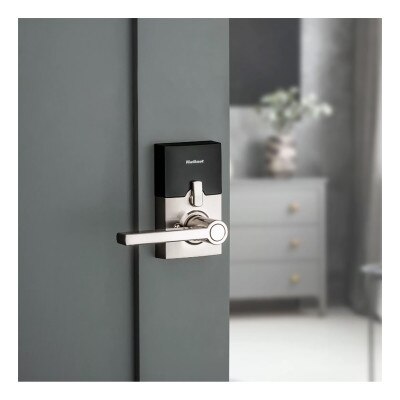

- 99170-003: Satin Nickel

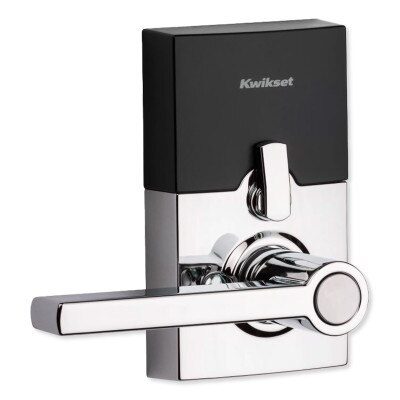

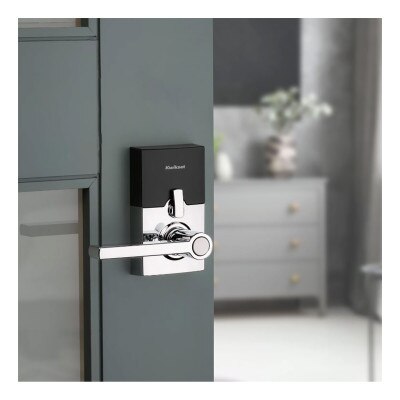

- 99170-004: Polished Chrome

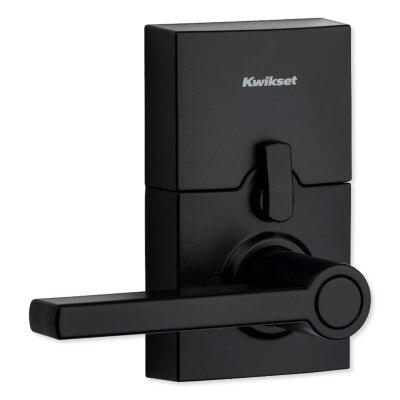

- 99170-005: Matte Black
- UPC:
- 99170-003: 883351731072
- 99170-004: 883351731089
- 99170-005: 883351731096
- Function: Keyed entry electronic lever
- Door Prep: Cross Bore 2- 1/8" Edge Bore 1"
- Backset: 2-3/8 inches or 2-3/4 inches
- Door Thickness: 1-3/8 to 1-3/4 inches
- Cylinder: SmartKey Security
- Faceplates: 1 x 2-1/4 inches round corner standard, drive in available
- Strikes: 2-1/4 inches full lip round corner
- Latch: Adjustable 2-3/8 x 2-3/4 inches

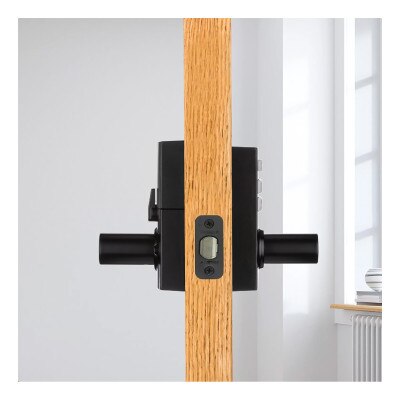

- Bolt: 1/2" throw, dead latch
- Door Handing: Reversible for right or left-handed doors
- Temperature Range:
- Exterior: -40°F to 150°F
- Interior: 32°F to 130°F
- Humidity:
- Exterior: – 100% condensing
- Interior: 30% – 95% non-condensing
- Certifications: AAA BHMA certified
- Warranty: Lifetime mechanical and finish warranty; 1 year electronics warranty
