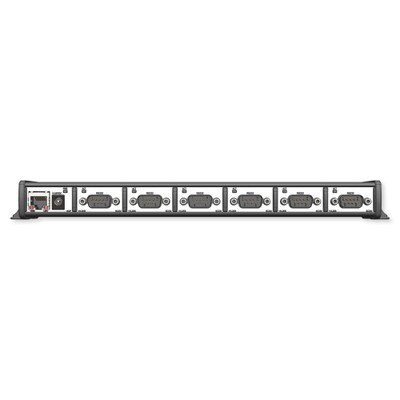

Global Cache Global Connect, GC7 w/ Serial x6

Connect Multiple Computers Through a Single Network Hub

The Global Caché Global Connect, GC7 is a high performance modular network adapter that is capable of providing universal control over multiple devices that operate across different communication protocols. This Global Connect GC7 Model includes 6 Bidirectional Serial connections.

• Modular network adapter enables universal control over multiple connection types
• Supports bidirectional serial connections
• Configure Module Setting using the Global Connect Online Web Portal
• Control connected devices via PC or Internet-connected device
• Reduces wiring clutter by centering around a singular network connection hub
• Backwards compatibility with existing Global Caché devices

Serial RS232 Bi-directional

The bidirectional Serial module features a male DTE (Data Terminal Equipment) DB9 connector in order to connect RS232 devices to your local network using serial cables. Connected serial devices can then be configured by using Global Caché's simple and highly configurable online web interface.To access the serial configuration settings, navigate to the Serial Settings page on the unit's configuration pages.

Installation Details

The Global Connect is a freestanding chassis that can placed on your entertainment stand or in your office or server room. Connect Global Connect to your home network via Ethernet.

Global Caché Global Connect uses an online web tool to set up and configure each module installed in the Global Connect chassis. Additionally, Global Caché has a list of partner apps and software that can integrate with their online web tool and even allow for remote control of your connected devices.

To configure the Global Connect, download and run Global Caché's iHelp program. The program will detect the individual IP addresses for each of the modules installed. Select the module you wish to adjust settings for and apply the relevant changes.

Contents

• Global Connect
• Power Supply

IMPORTANT NOTE: Global Caché products are not available to ship outside the U.S. Please contact Global Caché directly for international orders.

Simply Connect With Global Caché

The Global Caché family of connectivity products provides choices for the industry professional and the consumer by significantly reducing costs and providing a scalable platform for today and the future. Global Caché's belief in open systems and the evolution of the automation market is being played out today, since cost-effective PC-based and phone-based control applications are now becoming widely available. iTach devices, Network Adapters, and other Global Caché connectivity products have radically changed the automation dynamic. These products are engineered to integrate easily into any control environment, even high-end proprietary systems, providing a path to open systems and better competitive leverage.

• Manufacturer Part #: GC7/NE/6SL

Single Ethernet Network Module

• Network Connector: RJ45
• Network Speed: 100Mbps, Full Duplex
• Power Connector: Barrel Jack: 5.5mm x 2.1mm (Center Positive)
• Power Input: Range: 5V-24V
• Chassis Slots Occupied: 1

Serial RS232 Bi-directional

• Ports: 1 x Male DB9
• Baud Rate: 300-115200 baud
• Flow Control: Hardware, None
• Parity: None, Even, or Odd
• Data Bits: 8
• Stop Bits: 1, or 2
• Chassis Slots Occupied: 1
• Certifications: CE, FCC, CTick, RoHS
• Warranty: 1 Year
