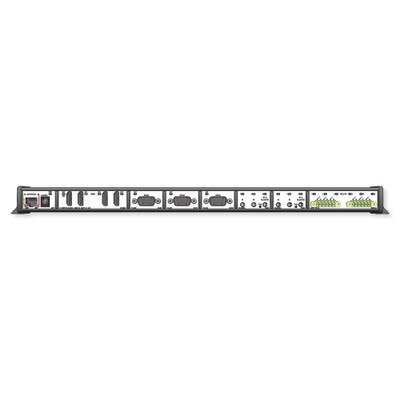

Global Cache Global Connect, GC10 w/ HDMI Switch, Serial x3, IR Ports x2, CC Relays

SKU: GC10NEHM3SL2IRRT

Usually ships in 3-5 days.

$719.00

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Program Universal Control Over Automation and Entertainment Devices

The Global Caché Global Connect, GC10 is a high performance modular network adapter that is capable of providing universal control over multiple devices that operate with different communication protocols. This Global Connect GC10 Model includes HDMI Switch, Bidirectional Serial RS232 connections, IR Emitter and IR Blaster module, and Contact Closure Relay connections.

  • Modular network adapter enables universal control over multiple connection types
  • Supports HDMI, Serial, IR, and Contact Closure Relay connections
  • Configure Module Setting using the Global Connect Online Web Portal
  • Control connected devices via PC or Internet-connected device
  • Reduces wiring clutter by centering around a singular network connection hub
  • Backwards compatibility with existing Global Caché devices

Global Connect supports multiple communications simultaneously for a diverse range of automation, security, and entertainment applications. Each preconfigured Global Connect chassis provides a unique range of connection and customization for your local network and devices.

Single Ethernet Network Module

Each Global Connect includes a network module. The network module provides the network connection for the unit. The network module also provides the power input for the entire unit. Network modules can be powered with any power supply between 5v and 24V DC. All Global Connect units ship with an appropriately rated power supply.

HDMI 3:1 Switch Module

The HDMI Switch module enables switching between 3 different AV sources at resolutions up to UHD 4K at 60Hz over HDMI cables. The switch also can detect whether the On/Off/Standby status of connected HDMI devices and issue On/Off commands.

The module also includes HDMI-CEC (Consumer Electronic Control) capabilities which provides easy command and control of devices connected through HDMI. The module includes support for HDCP 2.2 (High-bandwidth Digital Content Protection) devices.

Serial RS232 Bi-directional

The bidirectional Serial module features a male DTE (Data Terminal Equipment) DB9 connector in order to connect RS232 devices to your local network using serial cables. Connected serial devices can then be configured by using Global Caché's simple and highly configurable online web interface.

3 IR Output/ 1 IR Sensor Input

Infrared (IR) modules can interact with any device that use IR transmissions, such as TV remotes. The module includes 3 IR transmitters, or "blasters", and 1 IR Emitter Sensor Input. The IR blasters send signals up to 35 feet to IR receivers. IR Emitters act as "shortcuts" for delivering IR signals to IR receiver by mounting directly onto receivers and converting signals sent over the Internet to selected device. These IR emitters have a range of around 1 inch (2.5 cm). It is important to place the IR emitters directly on top of the IR receiver of the controlled device. This allows IR commands to bypass any latent signal interference.

6 Contact Closure Relays

Contact closure relays use a simple dry contact to trigger a relay event by controlling power delivered to voltage or contact inputs. The Global Connect allows you to remotely trigger relay events from your PC or web-connected device. To switch a relay, press the desired ports toggle to turn it On or Off. The relay will change to the set state.

Installation Details

The Global Connect is a freestanding chassis that can placed on your entertainment stand or in your office or server room. Connect Global Connect to your home network via Ethernet.

Global Caché Global Connect uses an online web tool to set up and configure each module installed in the Global Connect chassis. Additionally, Global Caché has a list of partner apps and software that can integrate with their online web tool and even allow for remote control of your connected devices.

To configure the Global Connect, download and run Global Caché's iHelp program. The program will detect the individual IP addresses for each of the modules installed. Select the module you wish to adjust settings for and apply the relevant changes.

Contents

  • Global Connect
  • Power Supply

IMPORTANT NOTE: Global Caché products are not available to ship outside the U.S. Please contact Global Caché directly for international orders.

Simply Connect With Global Caché

The Global Caché family of connectivity products provides choices for the industry professional and the consumer by significantly reducing costs and providing a scalable platform for today and the future. Global Caché's belief in open systems and the evolution of the automation market is being played out today, since cost-effective PC-based and phone-based control applications are now becoming widely available. iTach devices, Network Adapters, and other Global Caché connectivity products have radically changed the automation dynamic. These products are engineered to integrate easily into any control environment, even high-end proprietary systems, providing a path to open systems and better competitive leverage.

Specifications

  • Manufacturer Part #: GC10/NE/HM/3SL/2IR/RT

HDMI 3:1 Switch Module

  • Ports: 3 Inputs, 1 Output
  • Data Bandwidth: 18Gbps
  • 4K Resolutions:
    • UHD 4K 60Hz, 4:4:4 8 bit
    • UHD 4K 60Hz, 4:2:2 8 bit|10 bit|12 bit
    • UHD 4K 60Hz, 4:2:0 8 bit|10 bit|12 bit
  • Chassis Slots Occupied: 2

3 IR Emitters/ 1 IR Blaster Cable

  • Ports: 3 x IR Outputs/Sensor Inputs
  • Included Cables: 3 x IR Emitters, 1 x IR Blaster
  • IR Output Frequency: 20KHz – 500KHz
  • IR Learner Frequency: 20KHz – 200KHz
  • Chassis Slot Occupied: 2

Serial RS232 Bi-directional

  • Ports: 1 x Male DB9
  • Baud Rate: 300-115200 baud
  • Flow Control: Hardware, None
  • Parity: None, Even, or Odd
  • Data Bits: 8
  • Stop Bits: 1, or 2
  • Chassis Slots Occupied: 1

6 Contact Closure Relays

  • Ports: 6 x SPST Relays
  • Maximum Rating: 250V AC, 30V DC, or 6 Amps
  • Compatible Wire Gauges (Connector): 14-30 AWG
  • Relay Type: Normally Open (NO)
  • Chassis Slots Occupied: 2
  • Certifications: CE, FCC, CTick, RoHS
  • Warranty: 1 Year
