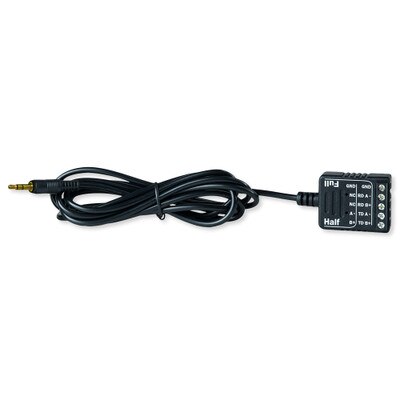

Global Caché Flex Link Serial Cable (RS485)

For Use With The iTach Flex

The Global Caché Flex Link Serial Cable (RS485) connects to your iTach Flex Module via the 3.5mm jack to enable IP/WiFi control for RS485 serial components. The RS485 setting includes Baud Rate, Duplex, Parity, Data Bits, and Stop Bits. The RS485 serial cable is both 4-wire (full duplex) and 2-wire (half duplex) capable. Duplex is unique to RS485 serial cables. It should be set to Full for 4-signal RS485 and Half for 2-signal RS485.

IMPORTANT NOTE: Global Caché products are not available to ship outside the U.S. Please contact Global Caché directly for international orders.

Simply Connect With Global Cache

The Global Caché family of connectivity products provides choices for the industry professional and the consumer, significantly reducing costs and providing a scalable platform for today and the future. Global Caché's belief in open systems and the evolution of the automation market is being played out today, since cost-effective PC-based and phone-based control applications are now becoming widely available. iTach devices, Network Adapters, and other Global Caché connectivity products have radically changed the automation dynamic. These products are engineered to integrate easily into any control environment, even high-end proprietary systems, providing a path to open systems and better competitive leverage.

• Manufacturer Part #: FLC-SL-485
• Interface: Serial RS485; 4-wire (full duplex) and 2-wire (half duplex) capable
• Connector: 5 pin screw terminal block
• Speed: 300 baud to 115.2 Kbaud
• Cable/Connector: 5 feet, 3.5 mm plug connects to Flex Link Port
• Warranty: 2 Years

»Global Caché FLC-SL-485 Flex Link Serial Cables RS232 and RS485 Spec Sheet (.pdf)
»Global Caché FLC-SL-485 Flex Link Serial Cable Quick Start Guide (.pdf)
