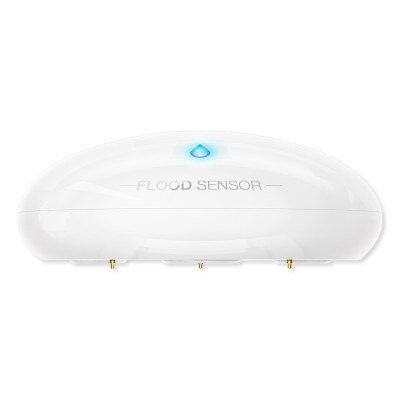

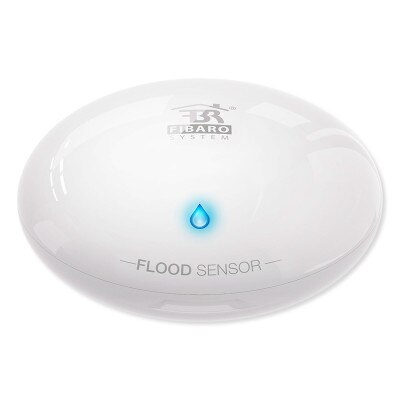

FIBARO Flood Sensor, HomeKit Enabled

Respond to Leaks As Soon As They Appear

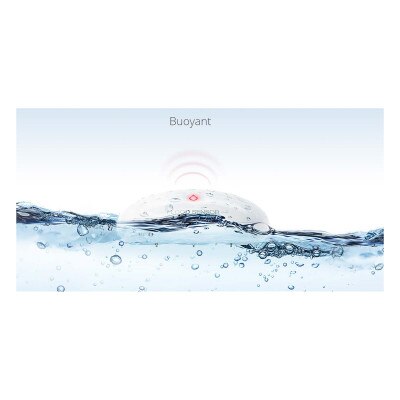

Receive instant alerts when leaks or flooding appear in your home or business with the FIBARO Flood Sensor, HomeKit Enabled. This Apple HomeKit compatible flood and temperature sensor uses Bluetooth signals to report when leaks, flooding, or sudden changes in temperature are detected. When any one of these three conditions is triggered, the Flood Sensor illuminates its built-in LED, sounds a built-in siren, and sends an alarm signal to your Apple HomeKit compatible device or network. Gold telescopic pins on the underside of the sensor detect the presence of liquid, as well as the ambient air temperature. The sensor is buoyant to allow it to continue to operate during heavy flooding. The sensor also reports when the sensor is suddenly moved or when the casing is removed.

• Apple HomeKit sensor detects and reports the presence of leaks and rapid changes in temperature

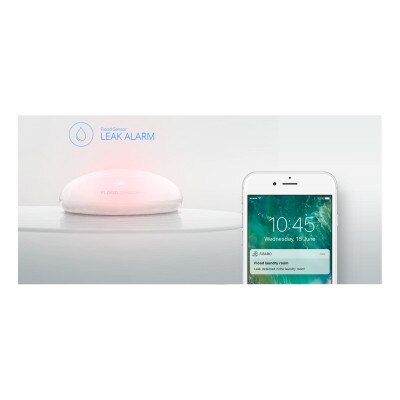

• Sounds siren, flashes LED, and sends alert to network when triggered

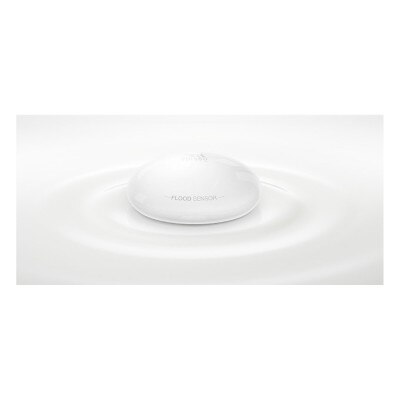

• Sits on any even flat surface
• Battery powered with built-in low battery alert
• Three 24 karat gold telescopic probes detect liquid and air temperature
• Terminal input for optional wired probe extension for hard to reach locations
• Voice control compatible with Apple Siri

Contents

• Flood Sensor
• CR123A Battery
• Instruction Manual

Notes

• Controlling this HomeKit-enabled device requires an iPhone, iPad, or iPod touch with iOS 9.3 or later.
• Controlling this HomeKit-enabled accessory away from home requires a dedicated Apple HomeKit "hub" device to maintain connection.
• Examples included third-generation Apple TV with Apple TV software 7.2.1 or later or a fourth generation Apple TV with tvOS 9.2 or later and an iPhone, iPad, or iPod touch with iOS 9.3 or later.

Innovative Apple HomeKit Solutions By FIBARO

With multiple award-winning products, FIBARO has become one of the leading Apple HomeKit manufacturers in the home automation and security industries. The company has been lauded time and time again for bringing uniquely innovative Apple HomeKit solutions to people across the globe. Introduce your home to your imagination through FIBARO.

• Manufacturer Part #: FGBHFS-001
• UPC: 857934005355
• Power Supply: 3.0V DC battery
• Battery Type: CR123A/CR17345 (included)
• EU directives compliance:
• RED 2014/53/EU
• RoHS 2011/65/EU
• Power Consumption: 0.4W at VDC operation
• Voltage at Output Terminals: 40V (AC or DC): – EMC 2004/108/EC
• Radio Protocol: Bluetooth® Low Energy (BLE)
• Radio Frequency: 2.4 GHz
• Radio Transmit Power: up to 0 dBm (EIRP)
• Range: up to 50m (164 feet)
• Operating Temperature: 32 to 104°F (0 to 40°C)
• Temperature Measuring Range: 32 to 104°F (0 to 40°C)
• Temperature Measuring Accuracy: ±0.5°C (±0.9°F)
• Dimensions (diameter x height): 72 x 28 mm (2.8 x 1.1 inch)
• Warranty: 2 Year
