FIBARO Door/Window Sensor, HomeKit Enabled

Apple HomeKit Plus Sensor Alerts You When An Object Opens

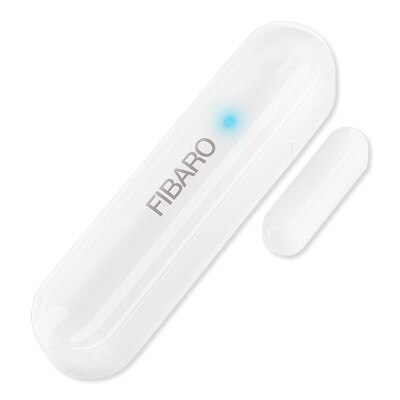

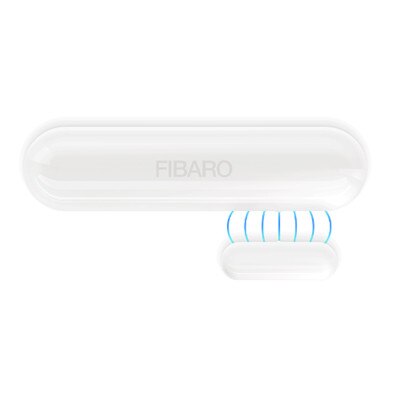

Monitor the use of open/close objects with the FIBARO Door/Window Sensor, HomeKit Enabled. This 3-in-1 multisensor detects and reports the status of a single door, window, drawer, or other Open/Close object, ambient air temperature and sudden changes in temperature, as well as any tampering attempts. When the status of an open/close object changes, the temperature increases over 3 degrees F within 10 minutes, or the sensor is tampered with, the Sensor will send an alert to your Apple HomeKit compatible device or network and the sensor's LED will blink. The sensor consists of two components: a magnet and a battery-powered reed sensor. When the two components separate, an alarm signal is sent to a connected Apple HomeKit device. The sensor can be programmed to trigger automated smart home or smart security scenes including turning On/Off lights when a door is used, Opening/Closing windows based on temperature, or triggering an alarm if a door or cabinet is opened while a security system is armed.

• Door/Window Sensor with additional temperature and tamper monitoring
• Suitable for monitoring almost any open/close object (doors, windows, gates, drawers, etc)
• Built-in temperature sensor reports ambient temperature and sends alerts when sudden changes (±1°C/2°F) occur within 10 minutes
• Internal tamper sensor detects cover removal or physical tampering

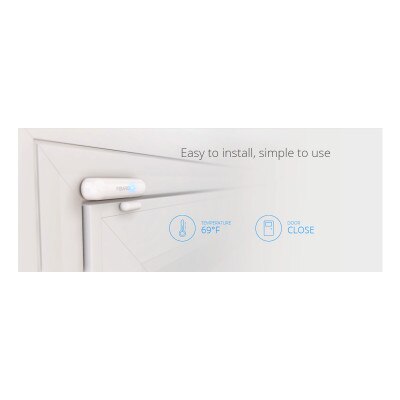

• Easily mounts with double-sided tape
• Low battery alert informs you when battery needs to be replaced
• LED indicator signals status of the device
• Voice control compatible with Apple Siri

Contents

• Apple HomeKit Door/Window Sensor
• 3.6V DC battery
• Double-Sided Tape
• Instruction Manual

Notes

• Controlling this HomeKit-enabled device requires an iPhone, iPad, or iPod touch with iOS 9.3 or later.
• Controlling this HomeKit-enabled accessory away from home requires a dedicated Apple HomeKit "hub" device to maintain connection.
• Examples included third-generation Apple TV with Apple TV software 7.2.1 or later or a fourth generation Apple TV with tvOS 9.2 or later and an iPhone, iPad, or iPod touch with iOS 9.3 or later.

Innovative Apple HomeKit Solutions By FIBARO

With multiple award-winning products, FIBARO has become one of the leading Apple HomeKit manufacturers in the home automation and security industries. The company has been lauded time and time again for bringing uniquely innovative Apple HomeKit solutions to people across the globe. Introduce your home to your imagination through FIBARO.

• Manufacturer Part #: FGBHDW-002-1
• UPC: 857934005362
• Power Supply: 3.6V DC battery
• Battery Type: ER14250 ½AA
• EU Directives Compliance:
• RED 2014/53/EU
• RoHS 2011/65/EU
• Radio Protocol: Bluetooth® Low Energy (BLE)
• Radio Frequency: 2.4 GHz
• Radio Transmit Power: up to 10 dBm (EIRP)
• Range: up to 164ft (50m)
• Operating Temperature: 0-40°C (32-104°F)
• Temperature Measuring Range: 0-40°C (32-104°F)
• Temperature Measuring Accuracy: ±0.5°C (±0.9°F)
• Dimensions (L x W x H): 2.8 x 0.7 x 0.7 inch; (71 x 18 x 18 mm)
• Warranty: 2 Year

»FIBARO FGBHDW-002 Door/Window Sensor User Manual (.pdf)
