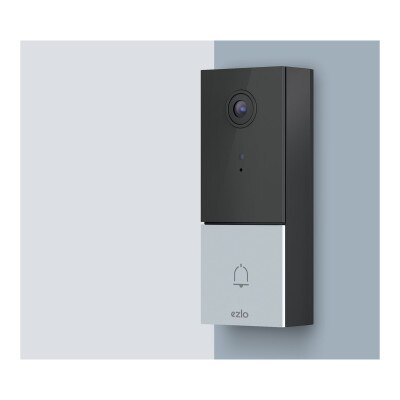

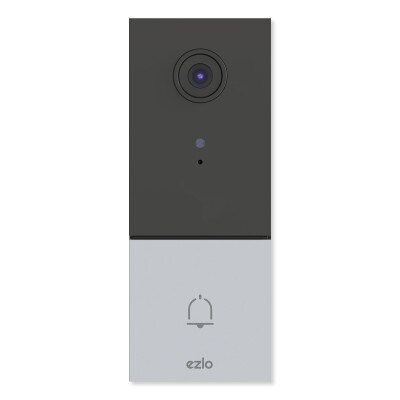

Ezlo VistaCam Video Doorbell 1203 with InstaVue

Quickly Install This 2K Motion-Activated Video Doorbell

Upgrade your doorbell or video doorbell with cutting edge technology with the Ezlo VistaCam Video Doorbell 1203 with InstaVue! This motion activated HD video doorbell camera provides up to 2K 4MP resolution images and 2-way audio to enable you to see and hear what is happening outside your front door in crystal clear detail. The InstaVue's camera contains a 170° wide angle lens that is adjustable up to 15° to completely cover most entryways. What makes the VistaCam 1203 stand out from its competitors is its near instant video playback capability: taking less than 2 seconds on a remote connection and under a single second on a wired connection to replay a selected clip. This capability enables you to instantly respond or reply to whatever occurs outside your home or business.

• HD video doorbell captures ultra-crisp 2K@25fps images during the day, night vision images up to 16 feet
• InstaVue video replay on both local and remote connections loads in less than 2 seconds
• Wide angle lens provides 170° coverage and its angle can be adjusted up to 15°
• 2-Way Audio with built-in mic and speaker let you communicate with guests
• Integrated motion sensor with adjustable sensitivity triggers recording
• Utilizes either Ethernet connection or 2.4GHz and 5GHz Wi-Fi networks
• Quick, easy installation using existing doorbell wiring and mechanical/electronic digital chimes
• Anti-theft Design thwarts tampering attempts
• Review Event History within convenient Timeline format
• Receive real-time alerts and check in remotely to see live footage
• Compatible with Amazon Alexa or Google Assistant

Powerful & Intuitive User Interface

Control the Ezlo VistaCam Video Doorbell 1203 with InstaVue with the VeraMobile app for iOS and Android mobile devices (also accessible via PC). The VeraMobile and web browser UI7 Dashboard brings all of your connected devices into a single user interface, making initial setup, device inclusion, and scene configuration easy to accomplish.

• Individually configure and manually control any connected device
• Use pre-set modes (Home, Night, Away, or Vacation) to quickly assign commands to all connected devices in your network
• View the status and energy consumption of all connected devices
• Customize your dashboard to access favorite or recently used devices or settings
• Voice Control compatible with Amazon Alexa and Google Home

Advanced Features

• Custom Automation Scenes: Use one connected device to trigger another, or schedule automatic events based on time of day, sunrise/sunset, etc.
• Geofencing & Advanced Occupancy Sensing: Locate users based on cell phone location to know who is arriving/leaving and to set up automated events (i.e. turn your lights on as you get close to home).
• Push Notifications: Receive text and/or email alerts for specific events. Be notified when your children arrive home, or motion is detected in the basement.
• Improved Access Control: Easily give household members access to the system with their own PINs and simple PIN management.

Installation Details

The VistaCam Video Doorbell 1203 can connect to existing doorbell wiring (requires 8-24 VAC voltage) and mechanical or electronic chimes. The VistaCam Video Doorbell 1203 seamlessly communicates with the Ezlo Plus or Ezlo Secure Smart Controllers by connecting to your home Internet via Ethernet or Wi-Fi (2.4GHz or 5GHz network).

Contents

• VistaCam 1203
• Drilling Template
• Power Adapter Kit
• Type-C USB Cable
• (4) Mounting Brackets
• (3) Sets of Mounting Screw
• Screwdriver
• Wire Extenders
• Wire Nuts
• Mounting Seal
• Quick Start Guide

NOTE: Internet connection required. Compatible with Ezlo Plus and Ezlo Secure only. Not compatible with Vera controllers, Ezlo Atom, or Ezlo PlugHub.

Ezlo Aims To Connect Everything

Ezlo's goal is to provide automated solutions to everyday tasks by delivering innovative smart devices into your home. With products that promote wide compatibility and connectivity with a multitude of technologies and manufacturers, including FortrezZ and Vera Control, Ezlo aims to make home automation more accessible and easier to improve upon.

• Manufacturer Part #: VC1203
• UPC: 850010800172

Network Connections

• Ethernet: Transfer via Type C to RJ45
• Protocols: IP, TCP, UDP, SMTP, FTP, RTSP
• Wireless Security: WPA, WPA2
• Wireless Standard: 2.4GHz and 5GHz

Video

• Image Resolution: 2560 x 1440
• Video Backup Storage: Supports up to 128GB Micro SD card
• Frame Rate: 25fps
• Compression: H.265/H.264
• 4M pixel Image Iensor: High Definition Color CMOS

Camera

• Motion, Sound and Face Detection: Recording triggered by motion sensor
• Night Vision: Range up to 16 feet
• Minimum Illumination: N/A (Without IR Illuminator)
• Image Settings: Adjust hue, brightness, contrast, saturation, sharpness
• Lens: F2.2 aperture
• Angle of View: Diagonal:170°, horizontal:152°, vertical: 91°

Audio

• 2-Way Audio: Built-in mic and speaker support full duplex, real-time 2-way audio

Power

• Power Supply: AC8~24V or DC5~30V

Environmental

• Storage Temperature Range: -4° – 140°F (-20°C to 60°C)
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• Operating Humidity: 20% to 85% non-condensing
• Certifications: FC, CE, RoHS
• Warranty: 1 Year
