Doorbell Fon Station with Interface to DP28C

Wi-Fi Video Doorbell With Interface To The DoorBell Fon Main Controller

Communicate with visitors without having to walk to your front door with the Doorbell Fon Station with Interface to DP28C. This video intercom door station comes with an interconnection to the DoorBell Fon Main Controller to allow you to answer a door using your home phone. You can also answer the door using your smartphone or tablet due to the door station's Wi-Fi connectivity to your Internet network to connect and the Yoosee app where you can talk to visitors, adjust security and alarm settings, record footage, and more.

• Door station triggers chime module and phone to ring via Yousee app when a visitor presses button
• Included wireless chime plays musical tone so you can always hear when guests arrive
• Communicate with visitors, review footage and adjust settings with the Yoosee app
• Lock trigger provides 12V to an electric strike or maglock
• Simple, sleek door station design

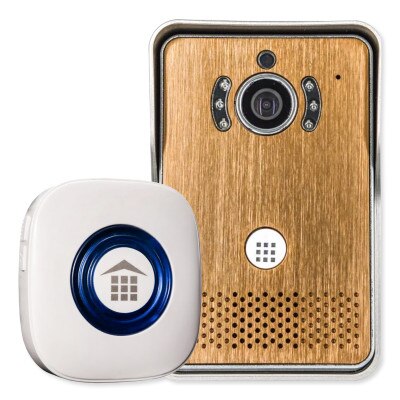

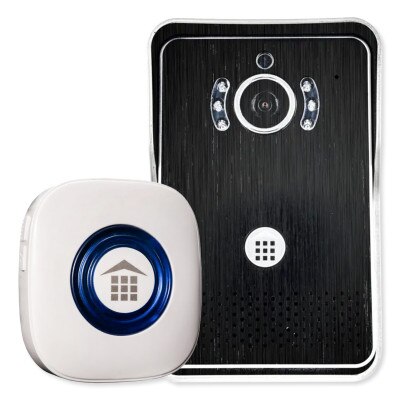

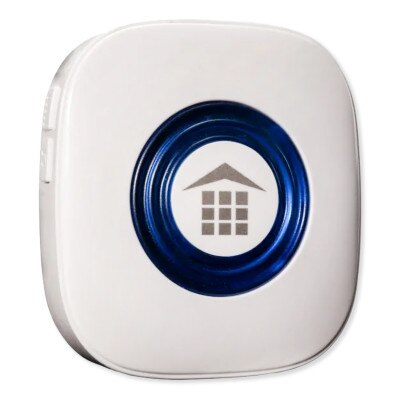

A 110V wireless door chime is included with the video intercom door station which emits a musical tone and flashes its LED ring when someone interacts with the door station. Also included is a lock trigger that provides 12V to an electric strike or maglock to unlock your door from a remote location using your smartphone. The camera also features clear footage in 720p and comes with pet immune infrared sensor detection capabilities. Additionally, the video intercom door station has an SD card slot, which will allow you to record up to 64GB of video footage and once recorded, you can access and playback the footage using the Yoosee app on your smartphone or tablet.

Contents

• Phone Door Station
• Door Station Rain Cover
• Wireless Chime 110V
• Wireless Chime Battery

NOTE: Requires the DoorBell Fon Main Controller (part: DP28C, sold separately) in order to connect from the door station to a house phone.

DoorBell Fon: Your Door-To-Phone Intercom Solution

Tired of walking all the way across your home or office just to answer the door? Wouldn't it be easier to simply answer the door – from your phone? The DoorBell Fon Door Intercom Station is just what you're looking for! The DoorBell Fon will bring Simplicity, Safety, and Convenience to your home.

Simplicity: The DoorBell Fon is simple to install. All you need is two wires from the Door Intercom connecting to the Main Controller and your phone line to pass through this Main Controller. That's it! No programming and no codes to worry about. Don't want to run new wires from your door? No problem! Just use your existing doorbell wires to connect to the Main Controller.

Safety: With the DoorBell Fon, you get the intrinsic safety feature of a door intercom system. You're notified that someone is present and can communicate without physically being at the door. If you add a 3rd party camera hidden behind our discrete camera slot, you can see who is there as well. With our Door Strike Controller and a door strike, you can even open the door from your phone.

Convenience: With the DoorBell Fon, you have the convenience of answering and opening the door from any room with a phone. No more leaving the comfort of your couch to answer the door. No more hurrying to get dressed when the doorbell rings. No more rushing out of the bathroom when someone is at the door. You don't have to drop what you're doing just to let someone in your home!

• Manufacturer Part #:

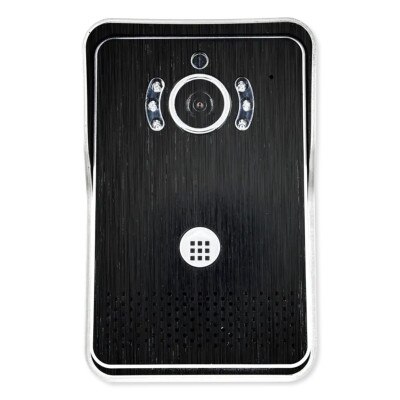

• DP-68-BK NXG: Black Brushed Aluminum
• DP-68-BZ NXG: Bronzed Brushed Aluminum

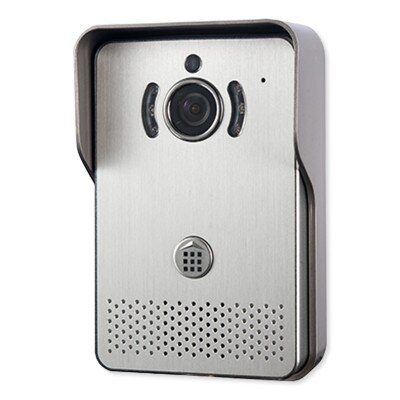

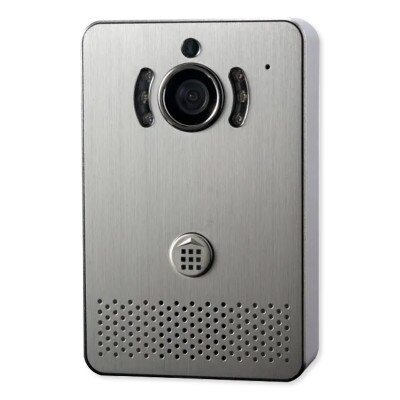

• DP-68-S NXG: Silver Brushed Aluminum
• Chipset: Hi 3518E
• Wireless Indoor Bell:
• 433MHz
• Learning Code
• Max distance: 100 feet
• Storage: Up to 64GB SD Card
• Video:
• Resolution: 720p
• Frame Rate: 1-25fps
• Image Sensor: 1/4 CMOS
• Visual Angle: 145° Superwide angle
• Night Vision: 6pc LED
• Lights, IR 3m, IR-Cut, No color change
• Audio:
• Full-duplex
• G.711A
• Alarm Motion Detection: PIR (Human body infrared sensor detection)
• Network:
• Protocols: TCP/IP, UDP, SMTP, DHCP, UPnP, P2P, ONVIF
• Wi-Fi 802.11 b/g/n (range: 45 feet or WiFi extender for more)
• 10Mbps/100Mbps Ethernet
• Lock Control:
• Wet Contact: 12V, 1.2A
• 1 Exit/Egress input
• Operating Humidity: 10-95%RH
• Operating Temperature: -4°F to 131°F
• Dimensions:
• Outside (include base): 3.725(W) x 1.75(H) x 5.675(L)
• Door station: 3.125(W) x 1.125(H) x 5.40(L)
• Certifications: ISO, CE, FCC, RoHS

»Doorbell Fon DP68 iDoorBell Fon Door Station Spec Sheet (.pdf)
»Doorbell Fon DP68 iDoorBell Fon Door Station Quick Start Guide (.pdf)
»Doorbell Fon DP68 iDoorBell Fon Door Station Installation Manual (.pdf)
