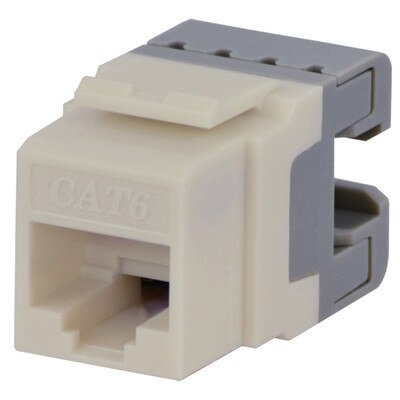

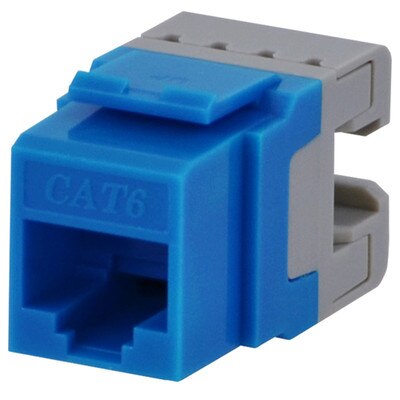

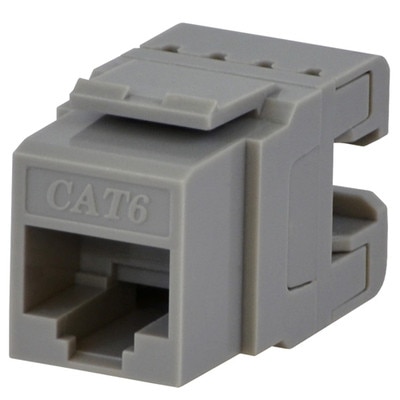

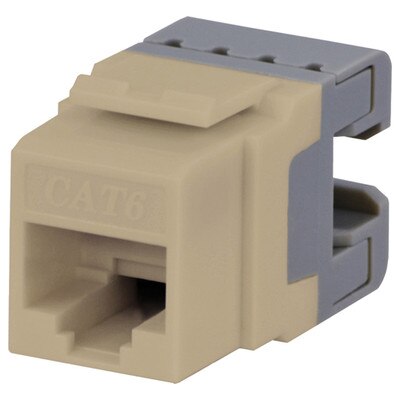

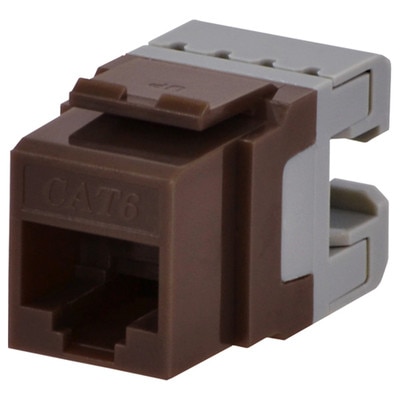

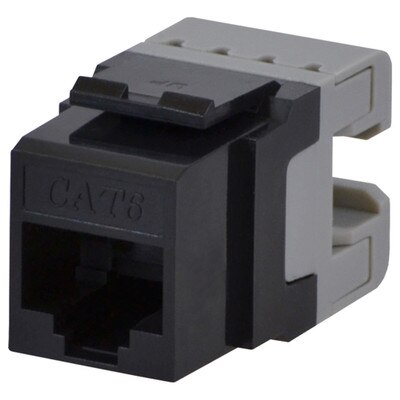

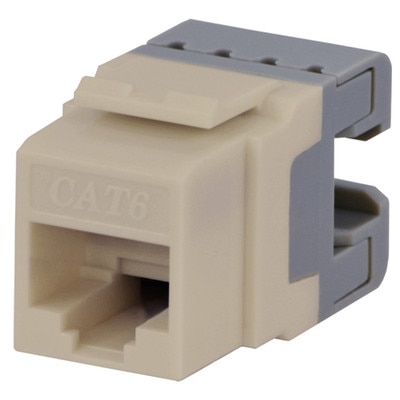

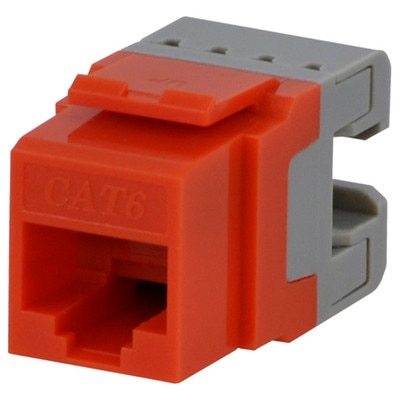

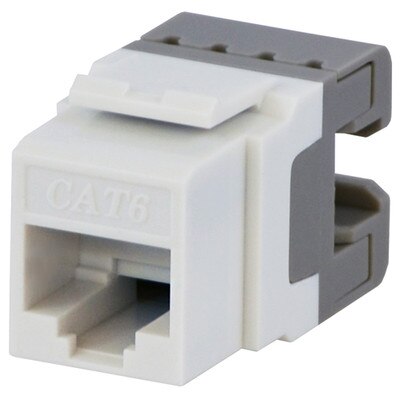

DataComm Cat6 Keystone Snap-In Connector

Keystone Insert with RJ-45 Jack

Create a custom RJ-45 Ethernet jack for use with Cat6 cable by installing the DataComm Cat6 Keystone Connector. This female RJ-45 to 110 IDC insert snaps into any standard keystone wallplate offered by DataComm or various third-party manufacturers, and it offers 180-degree configuration for easy rear termination. Covered by a 20-year warranty, these inserts are built to last.

• Keystone insert for creating an RJ-45 Ethernet jack
• Supports high-performance data transmission up to 250 MHz
• Provides a 110-type insulation displacement connector (IDC)
• Dual color-coded wiring labels facilitate wiring to to either T568A or T568B
• UL listed; meets TIA/EIS-568 and FCC part 68 requirements

Customize & Connect with DataComm

Long-known for enabling top-quality multimedia connections, manufacturer DataComm Electronics has bolstered its product offering with a complete collection of keystone-style wallplates and inserts. DataComm's Keystone line gives home theater and other multimedia installers the customization options they need from the media experts they trust. Keep data flowing smoothly with solid custom connections by DataComm Electronics.

• Manufacturer Part #: 20-3426-xx
• Cable Type: Cat 6
• Connection Type: Punchdown
• Side 1: RJ-45 (Female)
• Side 2: 110 IDC
• Insert Color: White
• Cover: ABS UL94V0
• IDC:
• Plastic: PC
• Pin: Phosphor Bronze Plated with Nickel
• Pin: Phosphor Bronze Plated with Gold (50μ)
• PCB: UL 94V0
• IDC Cap: PC
• Approvals: UL, RoHS, FCC Part 68, TIA/EIA-568
• Warranty: Standard 20-Year Product Warranty; 25-Year Channel System Warranty when used in conjunction with Honeywell Genesis Cable

»DataComm 20-3426 Cat6 Keystone Snap-In Connector Spec Sheet (.pdf)
