Autoslide Microwave Wireless Motion Sensor, Single

SKU: AS050MWWx

Please Select Option To View Availability

$160.00

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Turn Your Sliding Doors Into Motion Sensing Doors

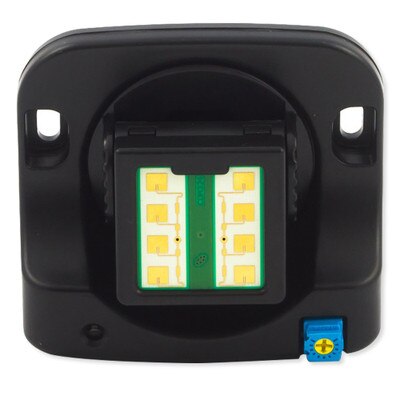

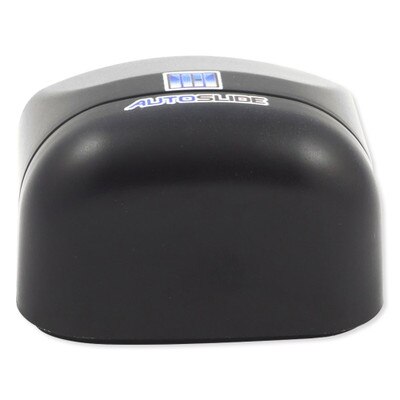

Make your Autoslide system truly automated with the Autoslide Microwave Motion Sensor, Single. This RF microwave motion sensor detects movement within its area of detection and signals your Autoslide system to Open in time for someone to pass through the door. This microwave sensor is a great choice to install in sunny areas, where an IR sensor could be inhibited by constant sun exposure.

  • Compatible with all Autoslide systems
  • Senses motion via disturbances within 10 x 13ft radar range
  • Great for heavy sun areas where IR sensors are less effective
  • Directly wired to Autoslide sensors for reliable performance and continuous power

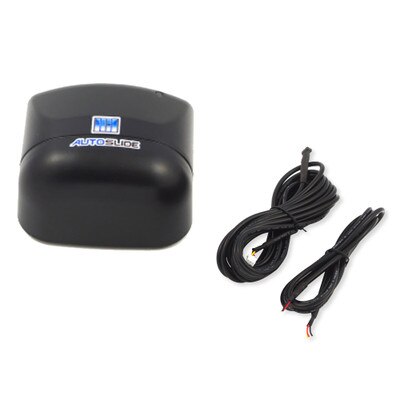

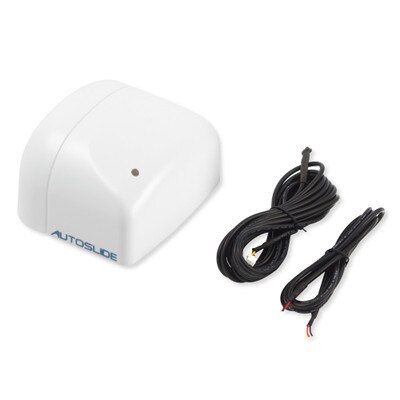

Contents

  • Microwave Sensor
  • 8ft Sensor Cable
  • (2) Screws

NOTE: Do not install the sensor above 3m in height, as it may not detect pets or small children.

Automatic Sliding Doors For Your Home

Autoslide is recognized as an affordable, convenient, and practical solution for everyday's little inconveniences. It is a long awaited necessity for elderly and physically challenged, and a welcome convenience for pet owners who want less hassle when their pets want to come in and go out.

Specifications

  • Manufacturer Part #:
    • Black: AS050MWWB
    • White: AS050MWWW
  • UPC:
    • Black: 647923341492
    • White: 647923341485
  • Outer Dimensions: 64mm x 55mm x 35mm
  • Launch Power Density: 5m W/cm^2
  • Launch Frequency: 24.125 GHz
  • Installation Height: Below 3.5m
  • Supply Voltage: 12V to 24V, AC/DC
  • *Angle Adjustment: 0° to 90°
  • Power Consumption: 1W (max)
  • Max Detecon Range: 4m (width) x 3m (depth)
  • Temperature Range: -20°C to +65°C
  • Output Relay Maintain Time: 1.5s
  • IP Protection Rate: IP54
  • Warranty: 2-Year Limited
