Arlington The LOOP Cable Support

Sturdy Loop for Cable Management

The Arlington LOOP Cable Support is a flexible, plastic support hanger for cables. Three different sizes are available, the largest of which holds up to 300 Cat5 cables without sagging or bending. The LOOP is suitable for a variety of cable types, including Cat5/6/7 and fiber optic cable. Designed for easy and cost-effective cable management, the LOOP holds the same amount of cable as a J-hook at approximately half the price.

• Flexible, sturdy support for bundle of cables
• Suitable for Cat5/6/7 and fiber optic cable
• Less expensive than cable trays and J-hooks
• No sagging, bending, or damage to cables

Available Sizes (Diameter): 2-inch, 2.5-inch, 5-inch

Note: This model is not UV resistant. For outdoor applications where UV resistance is needed, choose the UV Rated model, TL20P / TL25P / TL50P, sold separately.

Arlington Industries Inc.

Arlington has become a leading manufacturer of traditional metallic and non-metallic fittings and connectors – and an industry leader in the development of unique and innovative electrical and communications products. They monitor the industry closely to develop products that offer very specific, but innovative solutions to job site problems and situations.

• Manufacturer Part #: TL20 / TL25 / TL50
• Style: Non-Metallic Cable Support
• Loop Size:

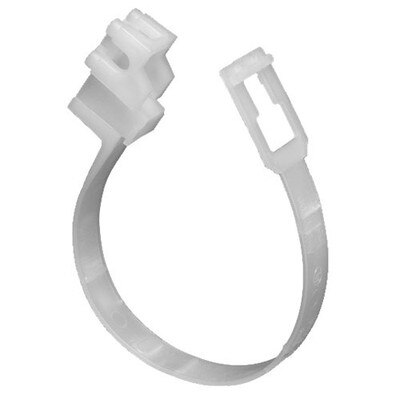

• 2" TL20: 2 inches

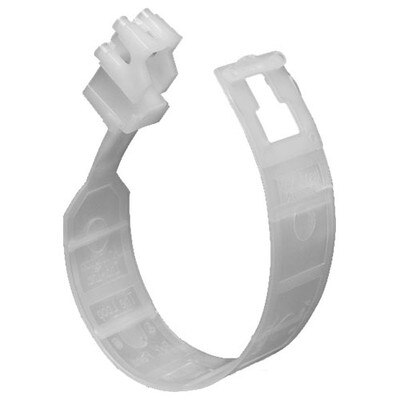

• 2.5" TL25: 2-1/2 inches

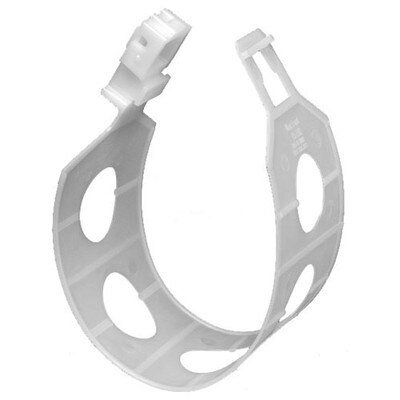

• 5" TL50: 5 inches
• Cat 5 Cables Supported:
• 2" TL20: 60
• 2.5" TL25: 100
• 5" TL50: 300
• Trade Size:
• 2" TL20: 2 inches
• 2.5" TL25: 2-1/2 inches
• 5" TL50: 5 inches
• Weight:
• 2" TL20: 0.033 pounds
• 2.5" TL25: 0.036 pounds
• 5" TL50: 0.1536 pounds
• Color: White
• Material: Plastic
• Approvals: UL, CSA

»Arlington The LOOP Cable Support Brochure (.pdf)
»Arlington The LOOP Cable Support Spec Sheet (.pdf)
»Arlington The LOOP Cable Support Technical Drawing (.pdf)
