Arlington The LOOP Cable Support, UV Rated

Sturdy Loop for Cable Management

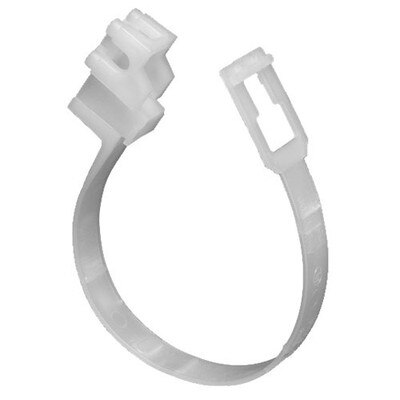

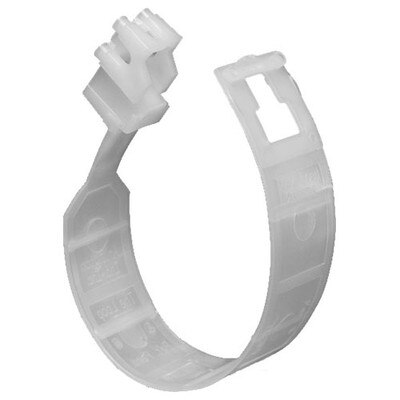

The Arlington LOOP Cable Support (UV Rated) is a flexible, plastic support hanger for cables. Three different sizes are available, the largest of which holds up to 300 Cat5 cables without sagging or bending. The LOOP is suitable for a variety of cable types, including Cat5/6/7 and fiber optic cable. Designed for easy and cost-effective cable management, the LOOP holds the same amount of cable as a J-hook at approximately half the price. This model is also UV rated for long-term outdoor use.

• Flexible, sturdy support for bundle of cables
• UV rated for long-term outdoor use
• Suitable for Cat5/6/7 and fiber optic cable
• Less expensive than cable trays and J-hooks
• No sagging, bending, or damage to cables

Available Sizes (Diameter): 2-inch, 2.5-inch, 5-inch

Arlington Industries Inc.

Arlington has become a leading manufacturer of traditional metallic and non-metallic fittings and connectors – and an industry leader in the development of unique and innovative electrical and communications products. They monitor the industry closely to develop products that offer very specific, but innovative solutions to job site problems and situations.

• Manufacturer Part #: TL20P / TL25P / TL50P
• Style: Non-Metallic Cable Support
• Loop Size:
• 2" TL20P: 2 inches
• 2.5" TL25P: 2-1/2 inches
• 5" TL50P: 5 inches
• Cat 5 Cables Supported:
• 2" TL20P: 60
• 2.5" TL25P: 100
• 5" TL50P: 300
• Trade Size:
• 2" TL20P: 2 inches
• 2.5" TL25P: 2-1/2 inches
• 5" TL50P: 5 inches
• Weight:
• 2" TL20P: 0.028 pounds
• 2.5" TL25P: 0.0382 pounds
• 5" TL50P: 0.161 pounds
• Color: Silver
• Material: UV-Rated Plastic
• Approvals: UL, CSA

»Arlington The LOOP Cable Support Brochure (.pdf)
»Arlington The LOOP Cable Support Spec Sheet (.pdf)
»Arlington The LOOP Cable Support Technical Drawing (.pdf)
