Speco 8-Channel 8K H.265 NVR with Facial Recognition and Smart Analytics

Support Up to 4 8K Security Cameras

Support an ultra high definition surveillance network capable of capturing footage in 8K resolution with the Speco 8 Channel 8K H.265 NVR with Facial Recognition and Smart Analytics. This network video recorder (NVR) records surveillance footage captured from up to 8 compatible IP security cameras in resolutions between 720p to 8K to allow you to easily identify subjects and events occurring around your property. Each ethernet port includes Power over Ethernet (PoE) functionality for easy cable management and plug and play installation. This NVR provides advanced security and playback software including Smart Analytics and Facial Recognition to assist in reviewing and sorting through footage to easily locate specific recordings. Smart Analytics and Facial Recognition features can only be utilized when cameras that support those features are connected to the NVR. This NVR also includes 1 SATA port for connecting to separate storage devices or to other NVRs to expand the size of your surveillance network.

• 8-Channel NVR supports up to eight compatible IP cameras and supports PoE connectivity
• Supports real time recording in resolutions between 720p and 16Mp/8K (5312 x 2988) at 30 fps
• Smart Analytics improve saved footage with smart playback functionality including Facial Recognition, line crossing, people and vehicle detection
• Supports VGA and 4K HDMI video outputs
• H.265 compression stores up to 2x more footage than H.264
• Easy video exporting via USB
• Allows for remote monitoring, configuration, PTZ control via web browser
• Mobile viewing with Speco SecureGuard and Speco Blue mobile apps

The NVR supports up to 8K resolution (5312 x 2988) and can record HD footage up to 160 Mbps across all eight channels. In case of network interruption or connection loss, the NVR can automatically record footage to inserted external storage devices and transfer files back to the NVR when connection is restored.

This NVR supports Smart Analytics software, dramatically improving the quality of your surveillance network and captured footage. Smart Analytics software simplifies reviewing saved footage for specialized surveillance tasks. By connecting a Speco Analytic camera to the NVR, you can review footage through the Speco management portal using Smart Playback functions, such as drawing a line or box across a specific area of a recording in order to rapidly search for activity within the selected area. Additionally, this NVR is compatible with cameras that use Facial Recognition technology, enabling you to catalogue and identify images of subjects seen within your surveillance network for more efficient reviewing of recorded footage.

Built-In Hard Drive for Convenient Storage

Each 8-Channel NVR comes equipped with a pre-installed multi-terabyte hard drive to store recorded video and audio and employs H.265 compression for optimized storage. Its HDD storage can also be optimized by switching between low- and high-quality streaming during simultaneous "Continuous + Sensor" or "Continuous + Motion" modes.

Easy Access To Footage Via Mobile App

View live and stored video from anywhere, anytime through the free SecureGuard or Speco Blue mobile apps for iOS and Android devices. From your smart mobile device, you'll be able to view live video footage as well as playback, pause, rewind, and fast forward recorded footage. This allows you to monitor your home from any location with an Internet connection no matter your location.

The NVR has "EZ Wizard" functions for quick installation.

• EZ Wizards: For the Quickest Use & Installation
• Camera: Quickly discovers and installs all Speco IP cameras
• Setup: For quick system setup
• Network: Network setup and port forwarding
• Record: Quickly setup recording resolutions and recording type
• EZ Search 2.0: Quickly search events from thumbnails
• EZ Copy: Auto copy what you are playing onto a USB flash drive
• EZ Mobile: Easy Mobile Setup for viewing on desktop or mobile apps

A web-enabled PC or MAC computer is required to operate the NVR. You can access the network via Speco One and SureGuard VMS, and supported Internet browsers.

Installation Details

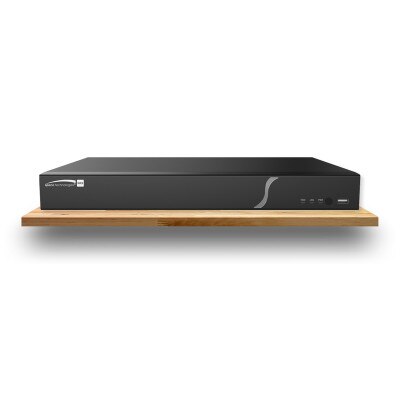

The NVR can be placed on a tabletop or rack mounted. Connect any Speco IP cameras to the recorder with ethernet cables. Once the connections are set up, use the EZ Wizard tools to quickly set up your surveillance system. The 8-Channel 8K NVR connects to the Internet to provide remote management and access to the system and enables you to playback footage, adjust settings, and monitor connected cameras from any Internet enabled device. Cameras can auto-enroll into the NVR over built-in PoE+ connections, making installation quick and simple.

Contents

• NVR Unit
• Power Cable
• Ethernet Cable
• Software CD
• Optical Mouse
• Quick Start Guide

Notes

• Hard drives not covered by 5-year warranty.
• USB device not included.
• Rack ears sold separately.
• Facial Recognition and Smart Analytics require Speco Facial Recognition or Analytic Cameras connected to the NVR, both sold separately.

IMPORTANT NOTE: Speco Technologies products are not available to ship outside the U.S. Please contact Speco Technologies directly for international orders.

Commercial & Residential Solutions From Speco

Speco Technologies is dedicated to providing the highest quality residential and commercial sound, security, CCTV closed circuit video and electronic accessories. Contractors, installers, builders, engineers, architects and homeowners rely on Speco products to satisfy both their commercial and residential needs.

• Manufacturer Part #:
• N8NRX2TB: 2 TB
• N8NRX4TB: 4 TB
• N8NRX6TB: 6 TB
• N8NRX8TB: 8 TB
• N8NRX12TB: 12 TB
• N8NRX16TB: 16 TB
• UPC:
• N8NRX2TB: 030519045490
• N8NRX4TB: 030519045506
• N8NRX6TB: 030519045513
• N8NRX8TB: 030519045520
• N8NRX12TB: 030519045537
• N8NRX16TB: 030519045544
• Warranty: 5-Year Limited, Hard Drives Excluded

Video

• Input: 8 channels
• IP Camera: H.264/H.265 Auto Detection (Max. 16MP)
• Output: Main Monitor: HDMI (Max. 4K) and VGA (Max. Full HD)

Audio

• Network Input: 8 Ch. IPC audio input
• Local Input/Output: 1 (RCA)

Recording

• Resolution: 16MP (8K) / 12MP / 8MP (4K) / 6MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p
• Codec: H.264/H.265 Auto Detection
• Max Frame Rate per Channel: 16MP at 30fps
• Recording Mode: Analytics / Continuous / Motion / Sensor / Schedule / Manual
• Pre/Post Recording: Max 5 seconds/ Max 10 minutes

Search & Playback

• Search Modes: EZ Search, Motion, Specific Date/Time, Event, Museum, Bookmarks, Snapshots, Log
• Simultaneous Playback: Max 8 Channels
• Smart Search: Highlighted color to display camera records in a certain period of time, different colors refer to different record events
• Playback Functions: Play, pause, FF, Rewind, digital zoom, etc

Backup

• Media: USB Flash Drive, Network
• File Format: MP4, JPG, AVI, ZIP (Player+Proprietary Data)

Storage

• HDD: Interface Type: SATA II
• Max Capacity of Each HDD: 16TB
• Internal SATA ports: 1
• USB Ports:
• Front: 1 USB 2.0
• Rear: 1 USB 3.0, 1 USB 2.0

Alarm

• Mode: Manual, sensor, motion, exception, AI
• Input: 8 Ch. Local
• Output: 4 Ch. Local
• Linkage: Record/Snapshot/Preset/Email/Pop-up Window

User I/F

• Input Method: IR Remote, Mouse

Network

• Bandwidth: 160Mbps
• P2P/Dynamic DNS: Free US-Based Speco P2P and DDNS Service
• Protocols: TCP/IP, PPPoE, DHCP, DNS, UPnP, NTP, SMTP

Network Access

• Mobile Client: iOS/Android via Speco Blue App, SecureGuard® Client
• PC Web Viewer: Chrome, Edge Firefox, Safari
• VMS/CMS: Speco Blue VMS, SecureGuard®
• User Access: Max 10 users online (web client)

Features

• Digital Zoom: Live and Playback, Free Size
• S.M.A.R.T.: Temperature, Power On Time, Bad Sectors, and Health

Smart Analytics

• People/Vehicle Detection: Line Crossing and Intrusion
• Facial Recognition: Face Search up to 8Ch. (N8NRX)
• License Plate Recognition: 8 Ch.

Power

• Power Consumption: ≤ 15W (without HDD)
• PoE Ports: 8
• Power per PoE Port: 15W
• Total PoE Power Budget: 80W

Environmental & Physical

• Operating Temperature: 14°F to 122° F (-10° to 50° C)
• Relative Humidity: 10 to 90 percent RH
• Dimensions: 11.8 (W) x 9.8 (H) x 2.0 (D) inches (300 x 249 x 45 mm)

»Speco N8NRX 8K H.265 NVR with Facial Recognition and Smart Analytics Spec Sheet (.pdf)
