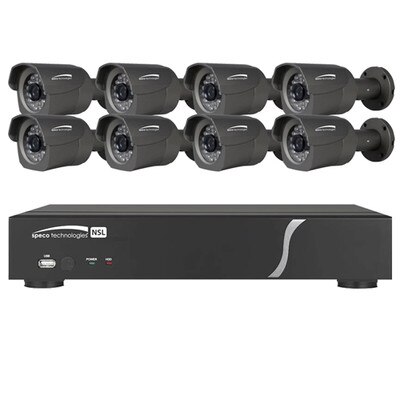

Speco Zip Kit: 8-Channel NVR with 8 Bullet Cameras
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Plug-and-Play Professional Surveillance System
Install surveillance cameras all around your property with the Speco Zip Kit (with 8-Channel NVR & 8 Bullet Cameras). As a complete plug-and-play system, this the Speco Zip Kit includes eight weatherproof IP cameras that auto-enroll into the included Network Video Recorder (NVR). All cameras are constructed for indoor or outdoor use. Simply mount them with the included hardware. You can playback recorded video through the Internet-connected NVR from anywhere in the world!
- Full HD audio/video recording and playback
- Camera LEDs provide night vision up to 65 feet
- Supports 2-way audio communication
- NVR compatible with both PCs and Macs
- Free Speco DDNS server with NVR
About the Network Video Recorder
The full-featured 8-channel NVR makes it easy for installers to quickly setup a professional surveillance system. It features four "EZ" functions:
- EZ Set-Up Wizards: One-click wizard guides you through basic system programming for the date/time, preferred recording method, video quality, preferred network, and port forwarding.
- EZ Camera: Automatically discovers and installs connected IP cameras.
- EZ Search: Allows you to quickly search through recorded events via thumbnails.
- EZ Copy: Auto-copy the video you are playing onto a USB flash drive.
The NVR has built-in PoE and supports full HD (1920 x 1080) recording and playback to accommodate the included HD IP cameras. It offers dual network ports, allowing you to isolate the IP camera network and remote network traffic. Built-in S.M.A.R.T. technology also provides self-monitoring, analysis and reporting technology for the NVR's hard disk drive (HDD).
Compatible with both PCs and Macs, the NVR is network accessible via SpecoTech Multi-Client Software, SecureGuard CMS, and/or the Speco Player Mobile Viewer.
About the Bullet Cameras
Included with the 8-channel NVR are eight weatherproof, vandal-resistant IP bullet cameras. Each camera features a 3.6mm fixed lens and night vision up to 65 feet. They capture real-time video up to 30fps, support dual streaming and motion-activated recording, and have a built-in mic/speaker for two-way audio communication. A pre-recorded audio message can even be triggered to play automatically upon motion detection.
Kit Includes
- 8-Channel NVR (N8NSL2TB)
- Remote Control
- Mouse for NVR
- Software & Manual CD
- (2) AAA Batteries, 1.5A
- Power Adapter, 48VDC
- Power Cable
- Quick Setup & User Guides
- (8) IP Bullet Cameras (O2VLB2)
- Mounting Screws
- L-Type Wrench
- CD with Software & User's Guide
- Quick Installation Guide
NOTE: Camera power supplies not included.
IMPORTANT NOTE: Speco Technologies products are not available to ship outside the U.S. Please contact Speco Technologies directly for international orders.
Speco Technologies
For over 45 years, SPECO Technologies has been dedicated to providing the highest quality residential and commercial sound, security, CCTV closed circuit video and electronic accessories. Contractors, installers, builders, engineers and architects rely on Speco products to satisfy both their commercial and residential needs.
Specifications
Bullet Cameras (O2VLB2)
- Image Sensor: Progressive scan 1/2.9" CMOS, 2.0MP
- Maximum Resolution: 1920x1080
- Minimum Illumination: F1.6, Color: 0.01 lux, BW: 0 lux
- S/N Ratio: 50dB
- IR LEDs: Yes
- IR Range: 65 feet (depending on scene reflection)
- White Balance: Auto, Manual
- Exposure Control: Yes
- Digital Slow Shutter: Yes
- Backlight: BLC/HLC
- Day/Night: IR-cut filter
- DNR: 2D
Video
- Main Resolution: 1920x1080 / 1280x720 @ 30fps
- Compression: H.264 (HP/BP), MJPEG
- Bitrate Control: VBR, CBR
- Multiple Streaming: 3 streams
External Terminal
- Ethernet: 10/100 Mbps
- Power: DC jack
Network
- Protocols: IPv4/IPv6, TCP, UDP, RTP, RTSP, HTTP, HTTPS, SMTP, FTP, DHCP, DNS, Bonjour
- DDNS Support: Speco DDNS (free of charge)
- Security: User ID and Password protection, IP address filtering, HTTPS, digest authentication, user access log
- User Access: 20 users max.; Number of users may vary depending on resolution
System
- PoE: Standard (IEEE 802.3af)
- Analytics: Motion detection (4 regions), Tamper protection
- Alarm Triggers: Analytics
- Alarm Events: Email, record, snapshot
- Video Buffer: Configurable pre-record and post-record
- Image Settings: Privacy mask
Client
- Web Browser Support: Windows (Internet Explorer 8 and up, Chrome, Firefox)
Operating / Physical
- Power Supply: PoE, 12VDC (power supply not included)
- Power Consumption: 6W
- Operating Temperature: -20°F to 140°F (-28°C to 60°C)
- Operating Humidity: Less than 95 percent RH
- Dimensions: 6.1(L) x 2.6(W) x 2.8(H) inches
- Weight: 1.37 pounds
- Certifications: FCC, RoHS
Network Video Recorder (N8NSL2TB)
- Power Source: 48VDC, 1.2A
- Operating Temperature: 41° to 104° F (5 to 40° C)
- Storage Temperature: 14° to 122° F (-10 to 50° C)
- Weight: 4 pounds
- Dimensions: 11.7(W) x 2.0(H) x 8.25(D) inches
- Warranty: 3 Years
Video Input
- Max. IP Channels: 8
- Resolution: Max. 1920 x 1080
Video Output
- HDMI: 1 HDMI (1280 x 720, 1920 x 1080)
- VGA: 1 VGA (1280 x 720, 1920 x 1080)
Audio
- IP Camera Inputs (Network): 8
- Local Output (RCA): 1
- Codec: G.711
Recording
- Compression: H.264 (baseline, main and high profile)
- Resolution:
- 1080p: 240fps
- 720p: 240fps
- Recording Mode: Continuous / Motion / Sensor / Schedule / Manual / Continuous + Motion / Continuous + Sensor
- Pre-Recording: Max. 20 minutes
- Post-Recording: Max. 60 seconds
Playback
- Search: EZSearch, Date/Time, Event, Archive, Log
- Multi-Decoding: 1, 4, 8
- Playback Speed: x0.25, x0.5, x2, x4, x8, x16, x32, x64
Backup
- Media: USB Drive, External HDD, Network
- File Format: BMP, AVI, Proprietary Format
- Large Backup: Yes (max. 24 hours)
Storage
- Capacity of 1 HDD: 2TB
- Internal HDDs: 1
- e-SATA: No
- Front USB: 1
- Rear USB: 1
User
- I/F Input: Method IR, Mouse, Keyboard Controller
Event
- Sensor In:
- IP Camera (Network): 8
- Local Input (Terminal Block): None
- Local Alarm Output (Terminal Block): None
- Motion Detection: Yes, from IP camera
Network
- LAN (IP Camera, Auto Connection): 8 (802.3af PoE)
- WAN (IP Camera, Remote Access): 10/100Base-T
- Protocols: TCP/IP, UDP, DHCP, HTTP, NTP, SMTP, RTP, RTSP
- Max. Throughput: 20Mbps
Network Access
- Mobile Viewer: iPad / iPhone / Android
- PC Web Viewer: Internet Explorer, Chrome, Firefox, Safari
- PC Client: SpecoTech Multi-Client Viewer and SecureGuard CMS
- MAC Client: Speco Client for MAC and SecureGuard CMS
- Remote Setup and Upgrade: Yes
Product Features
- Digital Deterrent: Default + up to 8 audio files
- Digital Zoom: Yes
- DLS (Daylight Savings): Yes
- S.M.A.R.T: Yes
- Internal Beep: Yes
- Multi-Language: Yes
- Dynamic DNS: Yes (free Speco DDNS)
- Email Notification: Yes
- NTP (Network Time Protocol): Yes
Downloads
»Speco ZIP Kit Spec Sheet (.pdf)
»Speco NSL Network Video Recorder Spec Sheet (.pdf)
»Speco NSL Network Video RecorderUser Guide (.pdf)
»Speco NSL Network Video Recorder Quick Setup Guide (.pdf)
»Speco NSL Network Video Recorder Quick User Guide (.pdf)
»Speco O2VLB2 1080p Indoor/Outdoor Bullet IP Camera Spec Sheet (.pdf)
»Speco O2VLB2 1080p Indoor/Outdoor Bullet IP Camera Installation Manual (.pdf)
»Speco O2VLB2 1080p Indoor/Outdoor Bullet IP Camera Quick Start Guide (.pdf)
Speco Player Smartphone App
Speco Player is designed to give a user remote viewing access of their DVR. Whether it is live viewing or playback access, Speco Player keeps you in contact with your DVR.
Download this app directly from the App Store. Click below.
