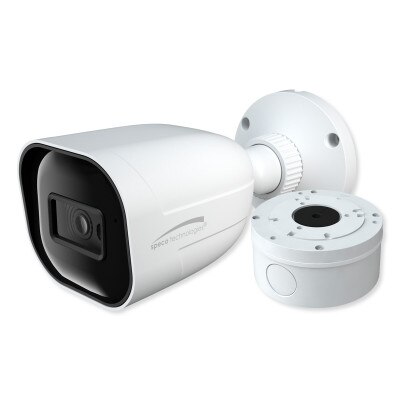

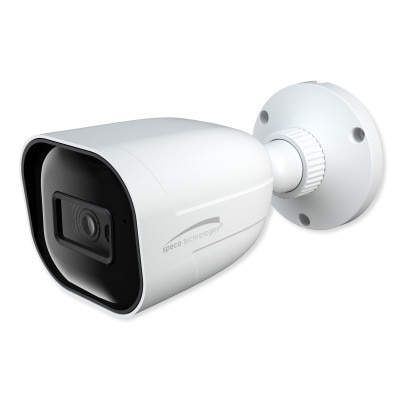

Speco 4MP H.265 IP Bullet Camera with Advanced Analytics and Junction Box, 2.8mm Fixed Lens
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
High-Quality Surveillance In Daytime Or Nighttime
Enhance your home security by improving the surveillance at your property with the Speco 4MP H.265 IP Bullet Camera with Advanced Analytics 2.8mm Fixed Lens. This IP bullet camera supports H.265/H.264/MJPEG compression formats and comes with a 2.8mm fixed lens. It offers a variety of features such as adaptive IR LEDs for reducing IR saturation in nighttime footage and true wide dynamic range operation for improving the image quality of the camera under high-contrast lighting conditions. Additionally, the camera works well in low light conditions with its 1/3" CMOS image sensor and IR cut filter, making it an ideal choice for both daytime and nighttime operation. The Speco 4MP IP Bullet Camera is designed to operate in virtually any environment thanks to its durable and weather resistant IP67 rated casing. The camera has built-in PoE to help minimize the use of power cables and simplify installation (wall mount included for secure installation).
- 2.8mm fixed lens captures HD resolution (2592 x 1520 @ 30fps)
- True WDR (wide dynamic range) for image compensation in high contrast areas
- Supports H.265, H.264, MJPEG codecs and multiple streaming (up to 3 streams)
- IR cut filter for Day/Night true operation with IR range up to 100 feet
- Weather-resistant IP67 rated for durable use
- Micro SD card slot up to 256GB (card not included)
- Built-in PoE standard (IEEE 802.3af)
This security camera includes Smart Analytics software that simplifies reviewing saved footage for specialized surveillance tasks. By connecting a camera with Smart Analytics to a compatible network video recorder (NVR) you can access Smart Playback functions through the Speco management portal, such as drawing a line or box across a specific area of a recording in order to rapidly search for activity within the selected area. Smart Analytics includes motion, missing object, abandoned object, intrusion, vehicle, human, tampering, scene change, and face detection. It also provides alarm triggers for whenever motion or other events are triggered, and image settings include IP address filtering, watermark, video mask, and password protection.
Easy Access To Footage Via Mobile App
View live and stored video from anywhere, anytime through the free SecureGuard mobile app for iOS and Android devices. When the camera is connected to a Speco NVR, you'll be able to view live video footage as well as playback, pause, rewind, and fast forward recorded footage using a smartphone or tablet. This allows you to monitor your home from any location with an Internet connection, all from the palm of your hand.
Installation Details
This IP Bullet Camera can be installed outdoors or indoors and is IP67 rated for weather resistance. A mounting template and hardware are also included for accurate installation and the camera can be powered by a 12VDC power supply or by Power over Ethernet (all power supply devices sold separately).
Contents
- IP Bullet Camera
- Junction Box
- Installation Hardware
- Software CD (PC)
- Quick Start Guide
Notes
- This device supports viewing and management via a web browser on a PC.
- 12VDC Power Supply not included (uses PoE as standard).
- Speco network video recorders (NVR) sold separately.
IMPORTANT NOTE: Speco Technologies products are not available to ship outside the U.S. Please contact Speco Technologies directly for international orders.
Commercial & Residential Solutions From Speco
Speco Technologies is dedicated to providing the highest quality residential and commercial sound, security, CCTV closed-circuit video, and electronic accessories. Contractors, installers, builders, engineers, architects, and homeowners rely on Speco products to satisfy both their commercial and residential needs.
Specifications
- Manufacturer Part #: O4B9
- UPC: 30519039574
- Image Sensor: Progressive scan 1/3" CMOS, 4MP
- Maximum Resolution: 2592 x 1520
- Field of View: 95.3°(H) , 53.2°(V), 115°(D)
- Minimum Illumination: 0.005 lux @ F1.6, AGC ON, 0 lux (IR LED on)
- Day/Night: Smart IR
- White Balance: Auto, Indoor, Outdoor, Manual
- Compensation: True WDR (120dB), BLC, HLC
- Electronic Shutter Speed: 1/3 – 1/100000 sec.
- DNR: 3D DNR
- Main Resolution: 2592 x 1520 / 2560 x 1440 / 2304 x 1296 / 1920 x 1080 / 1280 x 720 @ 30fps
- Sub Stream: 720P/ D1, CIF
- Third Stream: D1/ CIF/ 480 X 240
- Compression: H.265, H.264 (HP/MP/BP), MJPEG
- Video Settings: Region of Interest, Privacy Masking, Brightness, Contrast, Hue, Saturation, Denoise, Antiflicker, Day/Night Mode, Infrared settings, Exposure, Gain, Corridor Pattern, Image Flip/Mirror
- Bitrate Control: VBR, CBR (64Kbps ~ 10Mbps)
- Multiple Streaming: 3 streams
- Protocols: UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, 802.1x, UPnP, HTTP, HTTPS
- DDNS Support: Speco DDNS (free of charge)
- Security: User ID & Password protection, IP/Mac address filtering, digest authentication
- User Access: Max. 10 simultaneous users, Actual number of users may vary depending on bandwidth
- Web Browser Support: Google Chrome, Edge, Safari, Fire Fox, Windows (Internet Explorer 8 and up)
- PC Application: SecureGuard® VMS, SecureGuard® CMS
- Mobile: SecureGuard® Client, Speco Blue (iPhone® and Android™)
- Audio Codec: G.711A / G.711U
- Ethernet: 10/100 Mbps
- Power: DC jack
- Microphone Input: Mono 3.5mm
- Audio: Out No
- Card Slot: MicroSD, up to 256GB (not included)
- Alarm: No
- Reset: Yes
- PoE: Standard (IEEE 802.3af)
- Analytics: Motion, Exception, Line Crossing, Region Intrusion, Object Detection, Vehicle/People Detection, Face Detection, People/Vehicle Counting & Tampering Detection
- Alarm Triggers: Analytics, SD card error
- Alarm Events: FTP upload, email upload
- Image Settings: Watermark, IP address filtering, video mask, password protection
- Power: PoE, 12VDC (power supply not included)
- Power Consumption: < 7.5W
- Operating Temperature: -40°F ~ 140°F
- Operating Humidity: Less than 95 % (non-condensing)
- Unit Dimensions: 2.9" (W) x 2.9" (H) x 6.6" (D)
- Unit Weight: 1 lb.
- Certifications: FCC, UL-listed
- Warranty: 5 Years
