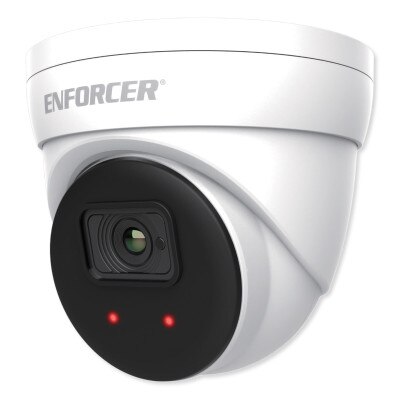

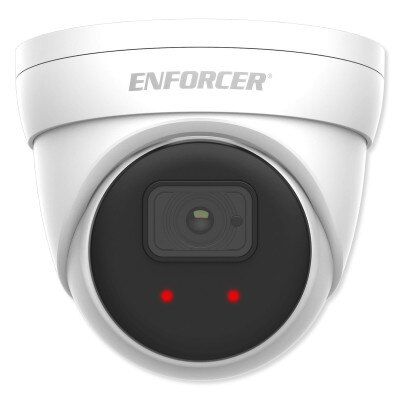

Seco-Larm ENFORCER HD 5MP 2.8mm Turret Camera
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Add HD Surveillance to Analog Systems
Add a reliable 24/7 HD security camera to your surveillance network with the Seco-Larm ENFORCER HD 5MP 2.8mm Turret Camera. This indoor/outdoor analog surveillance camera captures footage in 2592 x 1944 resolution @ 20FPS and delivers the footage via TVI, CVI, AHD, or CVBS analog connections. This 128° wide angle fixed lens turret camera keeps subjects in focus and color accurate thanks to advanced features including True Wide Dynamic Range (WDR), Digital Noise Reduction (3DNR), and True Day/Night functionality with a built-in ICR module. Two built-in IR LEDs with adjustable IR strength help illuminate and detect subjects in virtually any lighting setting within a range of 98 feet. Its IP66 rated weatherproof design ensures continuous operation through most weather conditions. With all of these features combined, you can expect clear and optimized images 24/7.
- Analog camera captures activity in 20FPS @ 5MP (2592 x 1944) resolution
- 2.8mm fixed lens with 128° wide angle
- TVI, CVI, AHD, CVBS Analog connections provide wide compatibility with surveillance systems
- True Wide Dynamic Range (WDR) and Digital Noise Reduction (3DNR) enhance image clarity
- ICR Module capable of capturing images in total darkness up to 98ft (30m) away
- IP66 rated weatherproof design withstands extremes temperatures and heavy rain
The Seco-Larm ENFORCER HD 5MP 2.8mm Turret Camera comes with AI functions that will ensure the best security surveillance for any home or business property. AI functions include face detection, human and vehicle detection, perimeter intrusion detection, line crossing detection, stationary object detection, crowd density detection, queue length detection, cross counting, and a heat map.
Installation Details

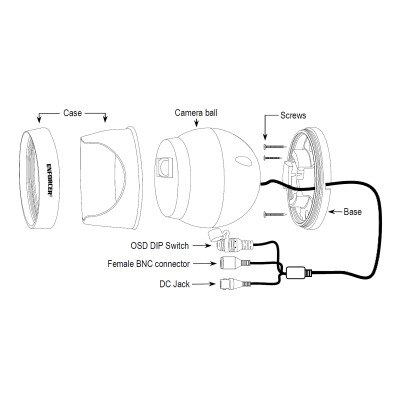

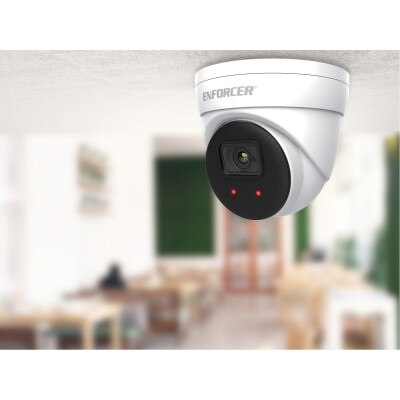

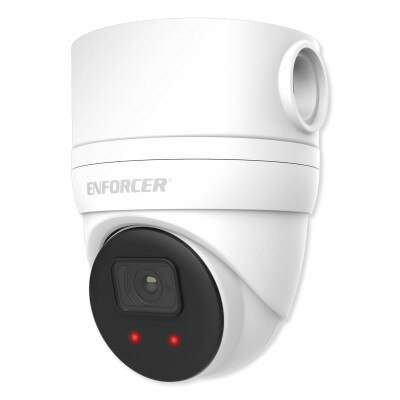

The 4-in-1 HD Analog Turret Camera mounts to a ceiling or wall using the integrated/removable mounting base and included hardware. The mounting base conceals the power cables to help prevent tampering. The camera uses 12VDC power.
Contents
- Turret Camera
- Mounting Template
- (3) Mounting Screws
- DC Plug
- Manual
NOTE: Junction Box not included. Do not open the camera case – there are no serviceable parts.
Seco-Larm Security Products
So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.
Specifications
- Manufacturer Part #: EV-Y2501-A2WWQ
- UPC: 676544022381
Camera
- Image Sensor: 1/2.8" 5MP Sony CMOS
- Effective Pixels: 2592(H) x 1944(V)
- Formats: TVI (Default) / CVI / AHD / Analog (CVBS)
- OSD (On-screen display): Yes
- S/N ratio: 35db
- Minimum Illumination:
- Color: 0.5 Lux at F1.2 (AGC on)
- 0 Lux with IR on
- IR Distance: Distance up to 98' (30m)
- IR LEDs: 2 x 850nm LEDS
Lens
- Lens Type: Fixed
- Focal Length: 2.8mm
- Maximum Aperture: F1.6
- Field of View: 128°
Video
- Resolution: 2592 x 1944
- WDR: Yes
- Shutter Control: Auto
- Gain Control: Auto
- White Balance: Auto
- Gain Control: Auto
- Noise Reduction: 3D DNR
- Privacy Masking: Off, on (4 areas, rectangle)
Electrical
- Operating Voltage: 12VDC
- Current Draw:
- IR On: 440mA
- IR Off: 80mA
- Operating Temperature: -40 to 131° F (-40 to 55° C)
- IP Rating: IP66 Weatherproof
- Casting: Metal
- Dimensions: 3-15/16" x 3-9/16" Diameter (100 x 90 mm Diameter)
- Weight: 16.72 oz (474g)
- Certifications: CE, FCC, RoHS
- Warranty: 3 Years
