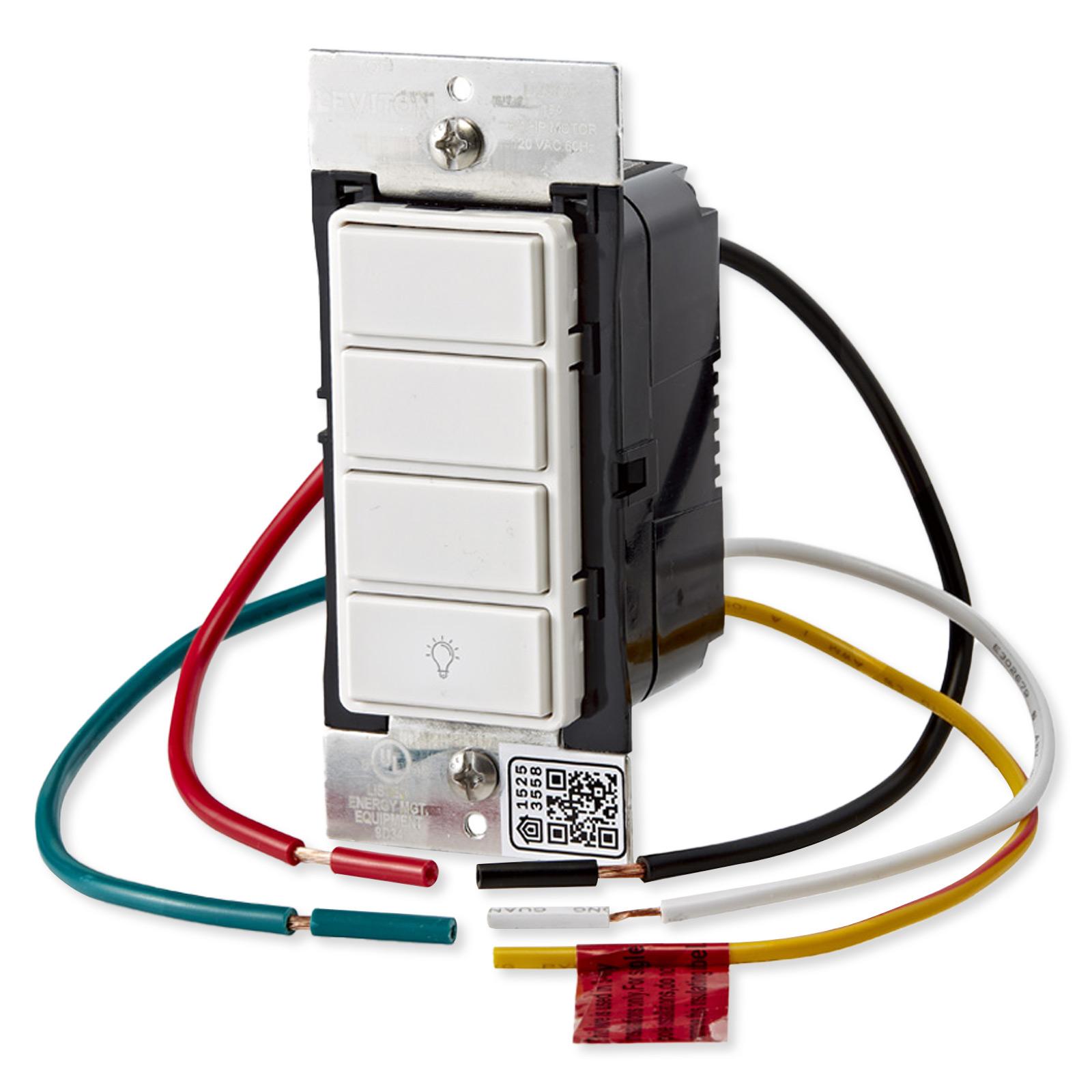

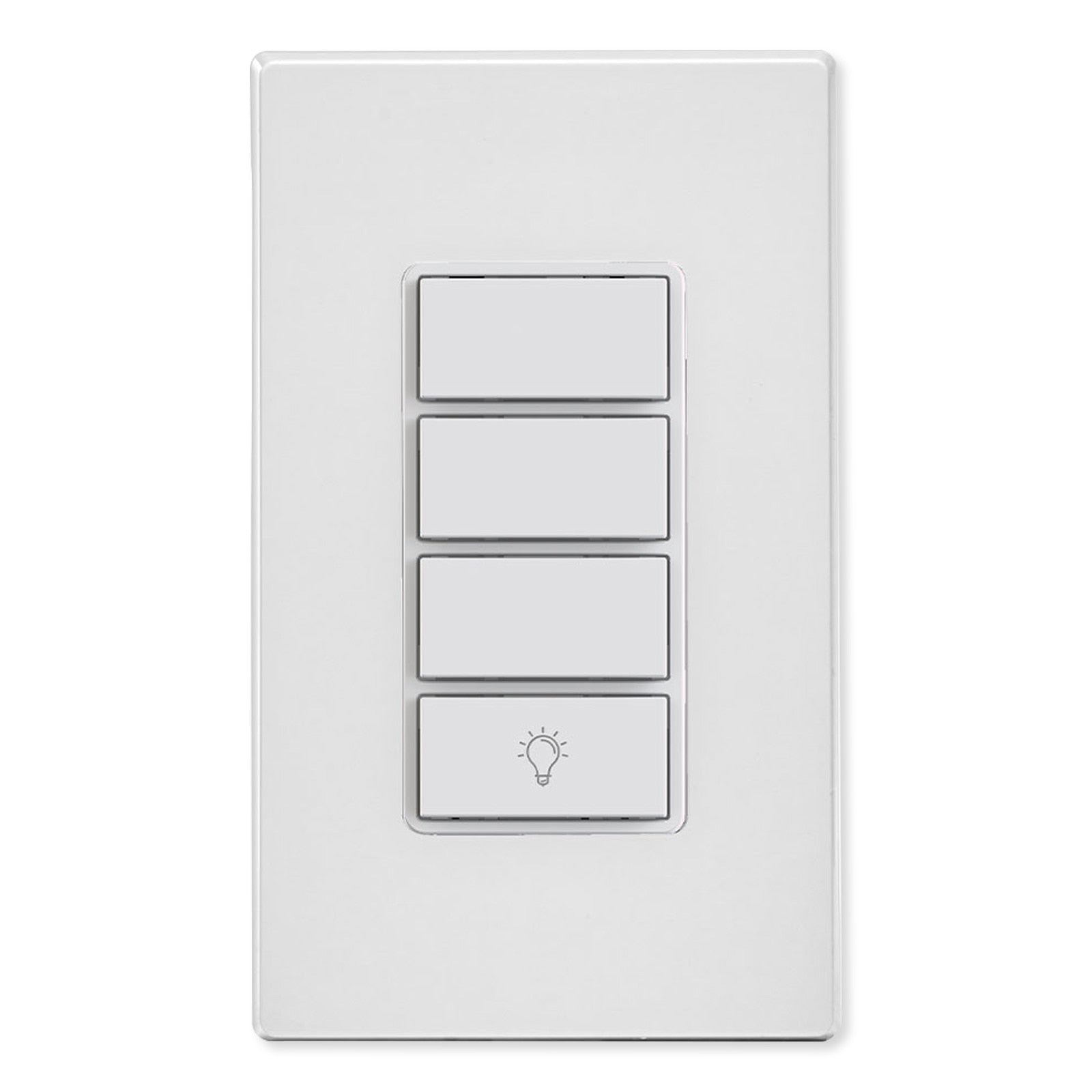

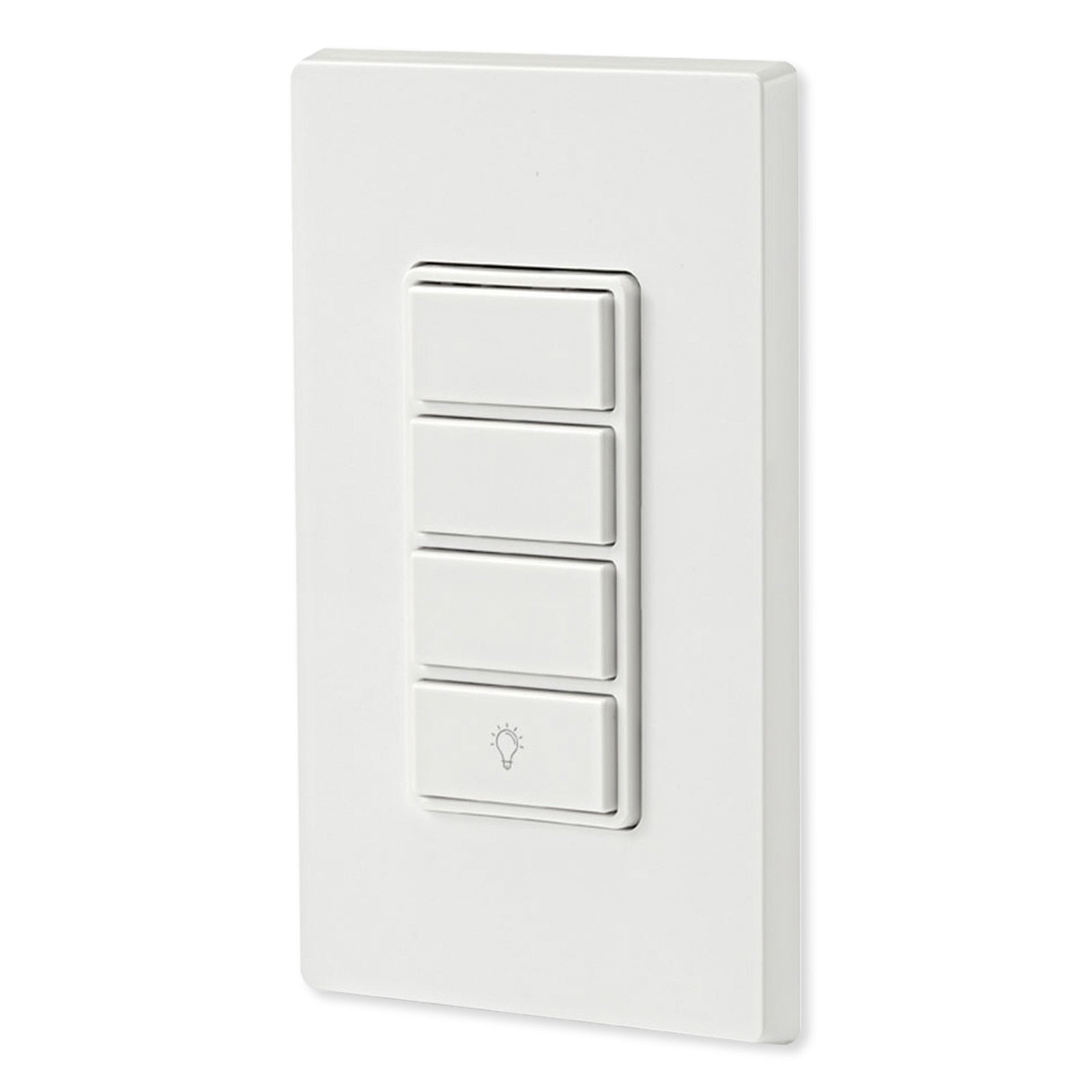

Leviton Decora Smart Wi-Fi Scene Controller Switch (2nd Gen)

Install a Dedicated Scene Controlling Switch

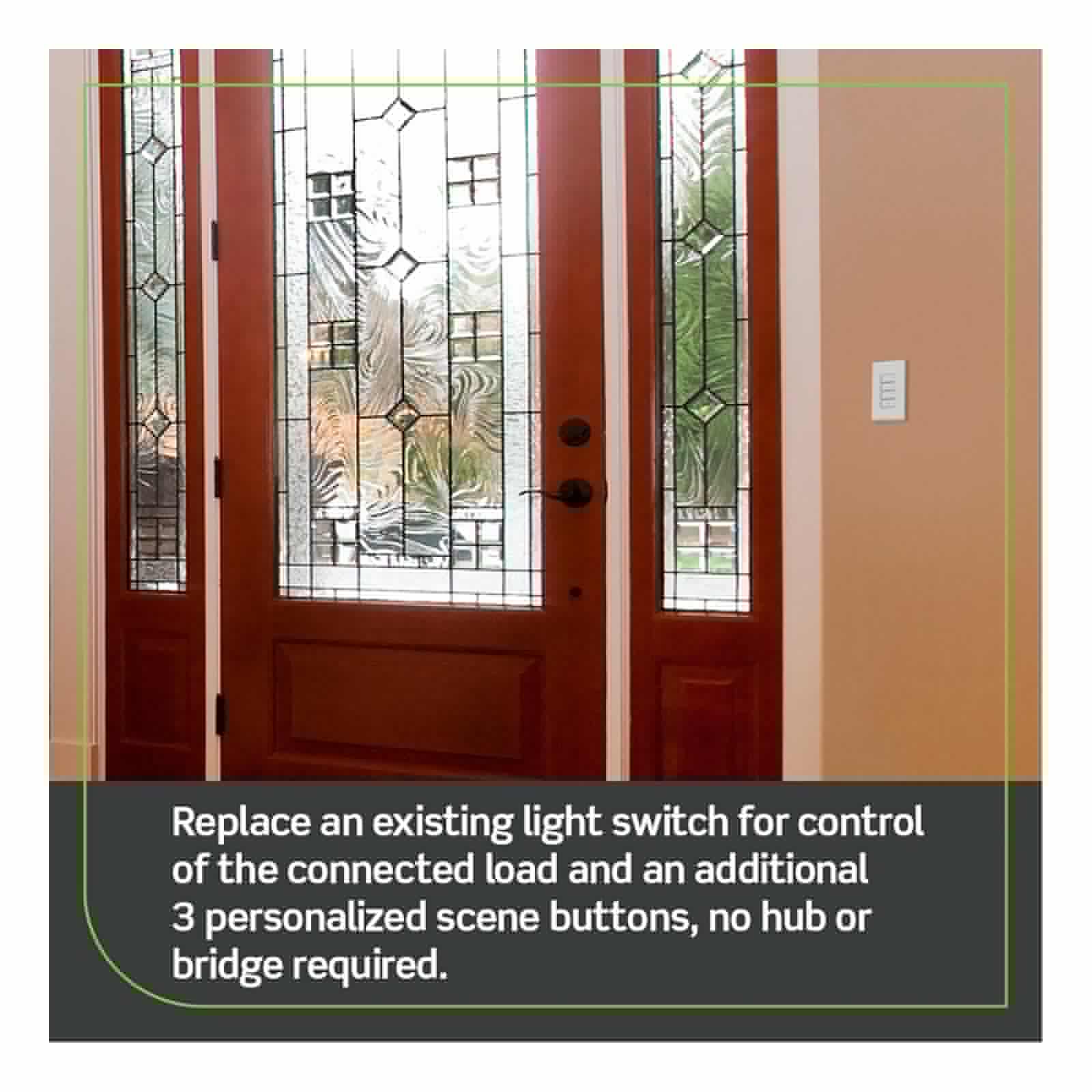

Add an additional wall switch to any indoor location with the Leviton Decora Smart Wi-Fi Scene Controller Switch (2nd Gen). This Wi-Fi compatible switch replaces a standard switch with a 4-button switch capable of issuing On/Off commands to the local load while also offering 3 programmable scene buttons that can be set up to control multiple Decora Smart devices or scenes. Each button can be individually programmed to activate/deactivate an individual Decora Smart device or group of devices, no smart home hub required. If you already own or wish to build a Wi-Fi compatible automation system, the Scene Controller Switch can be integrated into it to command other Wi-Fi compatible devices. The Controller Switch pairs wirelessly with the My Leviton app to command your Decora Smart Wi-Fi devices to provide additional lighting and automation control over your smart home.

• 4-Button Wi-Fi connected switch includes 1 On/Off button for the wired load and 3 programmable buttons for 3-way lighting applications or Decora Smart or Wi-Fi smart home scenes
• Supports On/Off control and switching of wired loads up to 15A; supports LED, CFL, Incandescent/Halogen, Fluorescent, and Motor loads
• Built-in button feedback lights illuminate upon button press, then vanish
• Supports 3-way/multi-location with Leviton Decora Smart Companion Switches (wire-free DAWSC and DD0SR wired, sold separately)
• Compatible with DS4KT color change kits in White, Ivory, Light Almond, Gray, Black, and Brown

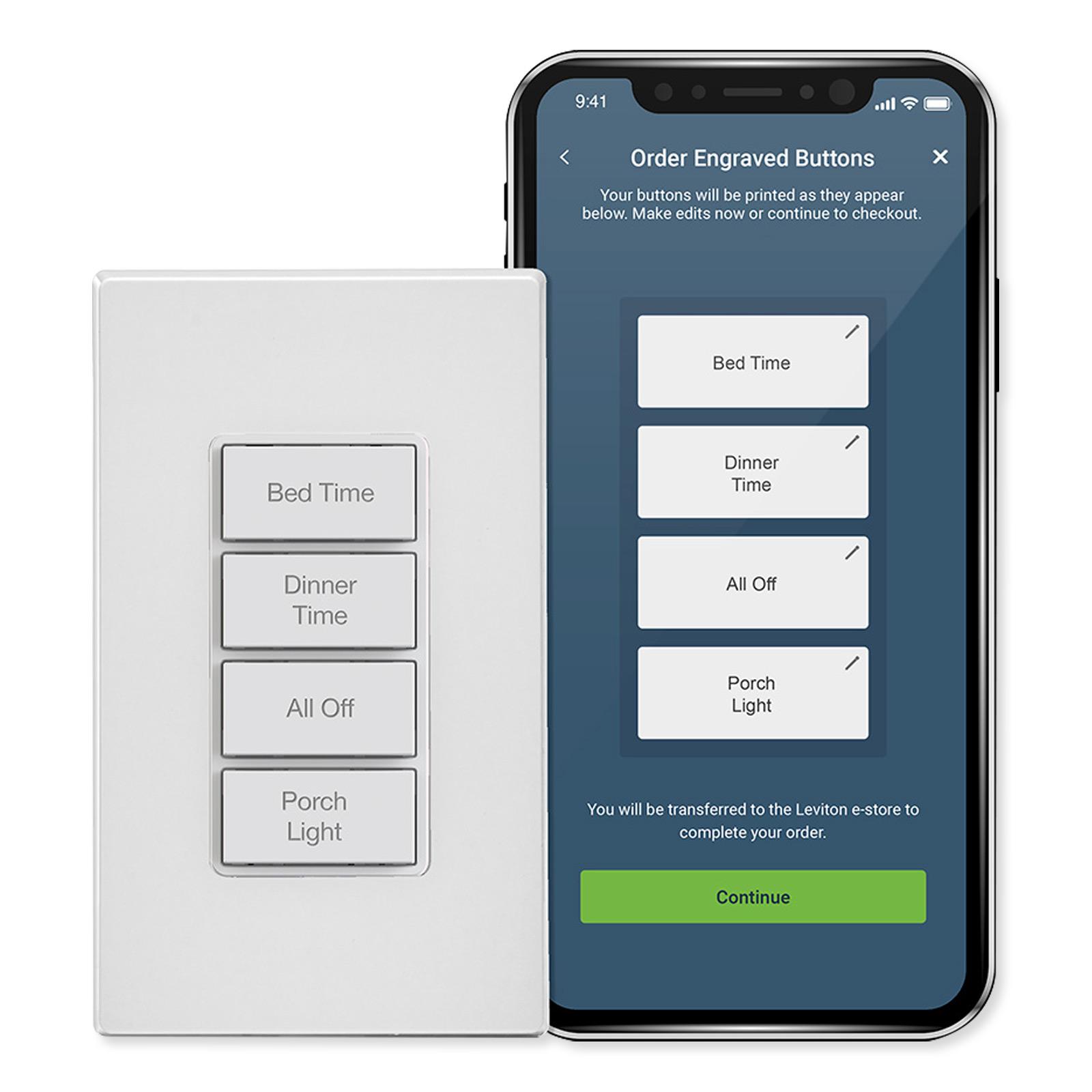

• Engraved buttons available in all 6 color options can be designed and ordered at any time through the My Leviton app (U.S. only)
• Use the My Leviton app to create room scenes and whole home automation activities
• Voice Control Compatible with with Alexa, Google, and Siri

Decora Smart Wi-Fi 2nd Generation

The Decora Smart Wi-Fi 2nd Generation family of products build upon the features and capabilities of the original Decora Smart Wi-Fi devices, creating a streamlined and more robust smart home experience. 2nd Gen Decora Smart Wi-Fi products are compatible with existing 1st Gen Decora Smart Wi-Fi devices including in-wall dimmers/switches and plug-in modules for appliances and lamps.

Control from Anywhere – No Hub Required

Control connected loads and lights using the free My Leviton app for iOS and Android, no hub required. Simplify control of the residence – schedule lights and connected loads to turn on/off at specific times or based on sunrise/sunset, easily group smart devices into rooms, and create activities (aka scenes) to command multiple lights at once.

My Lights. My Home. My Family. My Leviton.

Control up to 99 devices, 50 rooms, 50 activities (or scenes), and 5 schedules per residence and up to 20 residences per account.

Adaptable Voice and Remote Control

• Compatible with Apple HomeKit, IFTTT, SmartThings, and Schlage Encode wireless systems
• Compatible with both Amazon Alexa, Google Assistant, and Apple Siri voice control
• Streamlined device setup using Bluetooth

Installation Details

The Scene Controller Switch replaces a single-gang electrical switch and fits into a single-gang electrical box. A neutral wire is required for installation.

Contents

• Decora Smart Wi-Fi Scene Controller Switch
• Manual

Notes

• A neutral wire is needed for installation.
• Wallplate sold separately.

About Leviton

Leviton is the smart choice, providing the most comprehensive range of solutions to meet the needs of today's residential, commercial and industrial buildings. Leveraging more than a century of experience, Leviton helps customers create sustainable, intelligent environments through its electrical wiring devices, network and data center connectivity solutions, and lighting energy management systems. From switches and receptacles, to daylight harvesting controls, networking systems, and equipment for charging electric vehicles, Leviton solutions help customers achieve savings in energy, time and cost, all while enhancing safety.

• Manufacturer Part #: D2SCS-1BW
• UPC: 078477472644
• Brand: Decora Smart Wi-Fi
• Device Type: In-Wall Scene Controller Switch
• Grade: Residential
• Hub Required: No
• Color: White
• Network:
• Wi-Fi – 802.11 g/n @ 2.4GHz
• Security – WPA, WPA2 or WPA3, or Open
• Bluetooth – v5.0
• Load Ratings:
• 15A General Use
• 5A/600W LED/CFL
• 12A/1500W Incandescent/ Halogen
• 5A Electronic Ballast
• 15A Magnetic Ballast
• 3/4 HP Motor
• Termination: Wire Leads
• Neutral Required: Yes
• Voltage: 120 VAC
• Operating Humidity: 0 to 90% non-condensing
• Operating Temperature: 32 to 104°F (0 to 40°C)
• Strap Material: Metal
• Certifications: UL, FCC, CSA, NOM
• Warranty: 2-Year Limited
