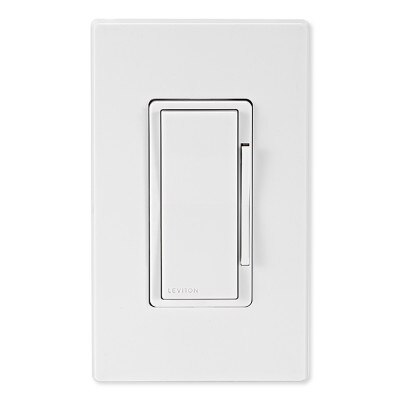

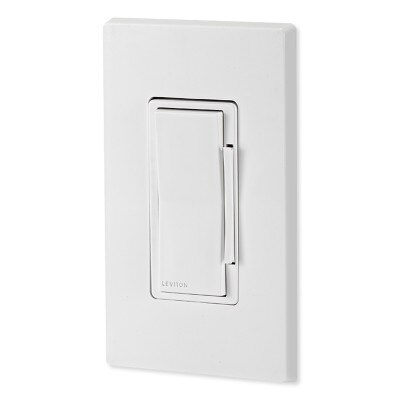

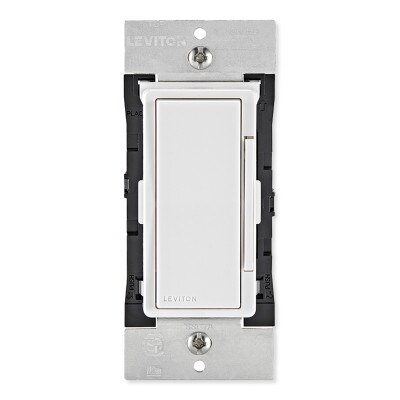

Leviton Decora Smart No-Neutral Dimmer

Retrofit Smart Wi-Fi Control Over Your Dimmable Lights

Control dimmable lights and small electrical loads and install the option to easily add smart home control with the Leviton Decora Smart® No-Neutral Dimmer. This retrofit dimmer switch replaces existing switches with no neutral wire with a paddle rocker capable of commanding dimmable lights to turn On/Off and Dim/Brighten and small appliances to turn On/Off. Additionally, the No-Neutral Dimmer can add remote control and smart home functionality to connected loads by wirelessly pairing with the Decora Smart Wi-Fi Bridge (MLWSB, sold separately). Once paired with a Decora Smart Wi-Fi Bridge, the No-Neutral Dimmer can be remotely controlled from the My Leviton app, be integrated into multiway applications, and benefit from smart home features such as inclusion in automated zones or scheduled routines.

• Retrofit dimmer switch controls lighting and small appliance loads with no neutral wiring
• On/Off/Dim/Brighten control over LED, CFL, Incandescent, and Magnetic Low Voltage bulbs, plus On/Off control over small appliances
• Double press the top rocker to turn ON at maximum brightness
• LEDs on the left side of the switch indicate current and target light levels and vanish after the switch is used
• Compatible with Google Home, Apple HomeKit, IFTTT, and Schlage Encode when connected to a Decora Smart Wi-Fi Bridge
• Voice control with Amazon Alexa, Google Assistant, and Apple Siri when connected to a Decora Smart Wi-Fi Bridge
• Internal memory saves custom settings, lighting schedules, and last used light level, even during a temporary internet outage
• Using the My Leviton app, control up to 99 devices, 50 rooms, 50 activities, and 50 schedules per residence and up to 20 residences per account
• 3-way or Multi-way control with the wireless DAWDC Anywhere Dimmer Companion or DAWSC Anywhere Switch Companion

Decora Smart Wi-Fi

The Decora Smart Wi-Fi family of products features various smart versions of everyday electrical devices including in-wall dimmers/switches and plug-in modules for appliances and lamps.

Control from Anywhere – No Hub Required

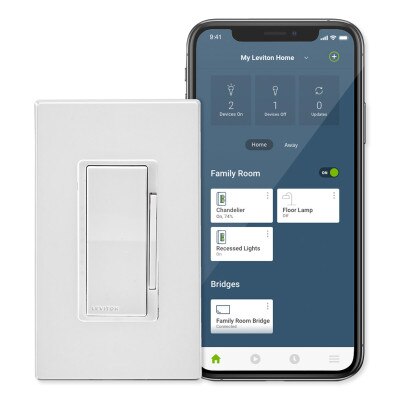

Control connected loads and lights using the free My Leviton app for iOS and Android, no hub required. Simplify control of the residence – schedule lights and connected loads to turn on/off at specific times or based on sunrise/sunset, easily group smart devices into rooms, and create activities (aka scenes) to command multiple lights at once.

My Lights. My Home. My Family. My Leviton.

Control up to 99 devices, 50 rooms, 50 activities (or scenes), and 5 schedules per residence and up to 20 residences per account.

Create schedules like "Good Morning" to activate appropriate lighting at preset times. For instance, at 6:30AM every Monday through Friday, turn the bedroom lights to 25% and master bath lights to 50%.

Adaptable Voice and Remote Control

• Compatible with Apple HomeKit, IFTTT, SmartThings, and Schlage Encode wireless systems
• Compatible with both Amazon Alexa, Google Assistant, and Apple Siri voice control

Installation Details

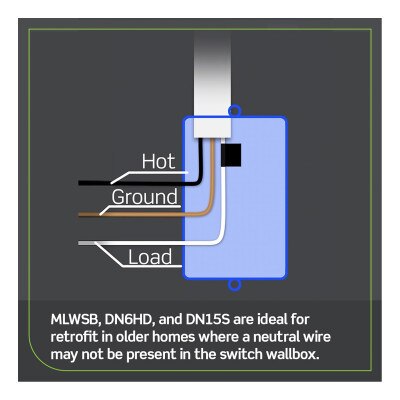

The No-Neutral Dimmer fits into existing single-gang boxes and connects with Line, Load and Ground terminals. In order to connect to the My Leviton app and utilize remote control or smart home features, a Decora Smart Wi-Fi Bridge (MLWSB) is required.

Contents

• Decora Smart No-Neutral Dimmer
• Manual

Notes

• A Decora Smart Wi-Fi Bridge is required for remote control and smart home functionality (MLWSB, sold separately).
• Wallplate sold separately.

About Leviton

Leviton is the smart choice, providing the most comprehensive range of solutions to meet the needs of today's residential, commercial and industrial buildings. Leveraging more than a century of experience, Leviton helps customers create sustainable, intelligent environments through its electrical wiring devices, network and data center connectivity solutions, and lighting energy management systems. From switches and receptacles, to daylight harvesting controls, networking systems, and equipment for charging electric vehicles, Leviton solutions help customers achieve savings in energy, time and cost, all while enhancing safety.

• Manufacturer Part #: DN6HD-1BW
• UPC: 078477574423
• Brand: Decora Smart Wi-Fi
• Device Type: In-Wall Smart Dimmer
• Grade: Residential
• Bridge Required: Yes, MLWSB
• Hub Required: No
• Color: White
• Load Ratings:
• 300W LED/CFL
• 450W Incandescent/ Halogen
• 600VA MLV
• Termination: Wire Leads
• Neutral Required: No
• Voltage: 120 VAC
• Operating Humidity: 0 to 90% non-condensing
• Operating Temperature: 32 to 104°F (0 to 40°C)
• Strap Material: Metal
• Optional Color Change Kits Available: Yes, DDKIT in White, Ivory, Light Almond, Gray, Black and Brown
• Certifications: UL, FCC, CSA, NOM, NEMA SSL 7A
• Warranty: 2-Year Limited

»Leviton DN6HD Decora Smart No-Neutral Dimmer Spec Sheet (.pdf)
»Leviton DN6HD Decora Smart No-Neutral Dimmer Installation Manual (.pdf)
»Leviton Decora Smart Wi-Fi Flyer (.pdf)
»My Leviton App Guide (.pdf)
»Levition Dimmer Buying Guide (.pdf)
