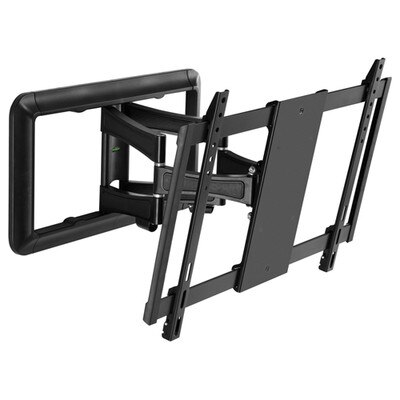

VMP Low-Profile Articulating Flat Panel Wall Display Mount, 32-52"

Load Capacity Up To 100 Pounds

The VMP Low Profile Articulating Flat Panel Wall Display Mount (32-52") holds flat panels weighing up to 100 pounds, measuring 32" to 52". You can adjust the viewing angle by tilting, rotating, pulling out from the wall, and pushing back. When the panel is pushed back against the wall, the mount achieves an exceptionally low profile with only 1.5 inches of space between the wall and the flat panel. The mount also allows post-install level correction, ensuring a perfectly aligned installation.

• Holds most 32-52" flat panels up to 100 pounds
• Low profile depth of 1.5" when collapsed
• Extends out from wall up to 16.2"
• Rotates 45° and has adjustable -2° to +10° tilt
• Mounting rails accept padlocks for added security
• Built-in level and cable management system

The mount is designed to attach to two studs approximately 16" apart, or other suitable support surfaces. It is constructed primarily of formed steel and aluminum, and incorporates arc welds for durability. The adjustable mounting rails can accommodate a maximum hole pattern of 600 mm wide and 400 mm tall. The mount is capable of tilting from -2° to +10°.

Contents

• Flat Panel Wall Mount
• (2) Mount Arms
• Hardware Kit
• Instruction Manual

IMPORTANT NOTE: VMP products are not available to ship outside the U.S. Please contact VMP directly for international orders.

Install With Confidence

VMP mounting systems hang easily from walls or ceilings and are specially designed for maximum tilt and swivel capacity. This flexibility and rotating capability creates easy viewing from any angle. VMP mounting systems are manufactured from tempered high grade steel with a scratch resistant powder coat finish. They offer load capacities of up to 300 pounds, adjust to fit most televisions and monitors, and have been vigorously tested for safety. Many models are UL listed for extra safety and durability. VMP mounting systems include everything needed to assemble a complete mount, in one box, and require no special tools.

• Manufacturer Part #: FP-XMFTB
• Adjustable Tilt: -2° to +10°
• Rotates: ±45°
• List Adjustment: ±3°
• Load Capacity: 100 pounds
• Max. Mounting Hole Pattern: 600mm x 400mm
• Dimensions: 27.4(W) x 17.3(H) x 16.2(D) inches – fully extended
• Weight: 16.8 pounds
• Warranty: "Forever Warranty"
