Load Capacity Up To 100 Pounds

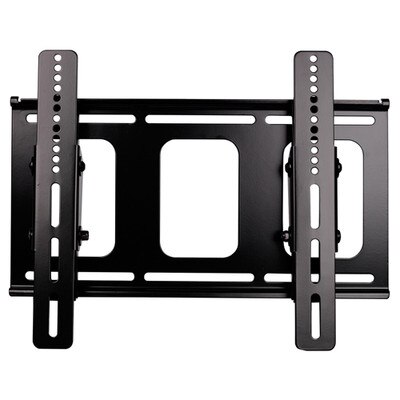

The VMP Flat Panel Tilt Wall Display Mount (27-42") is a simple wall mount for a flat screen TV weighing up to 100 pounds, measuring between 32 and 52 inches. The mount features adjustable locking rails and allows you to tilt the mounted display from -5° to +15°. The mount's design also supports use with multiple two-gang electrical boxes.

  • Holds most 27-42" flat panels up to 100 pounds
  • Adjustable rails and tilt from -5° to +15°
  • Only 2.4 inches between wall and display
  • Backed by the VMP "Forever Warranty"

The mount is designed to attach to two studs approximately 16" apart, or other suitable support surfaces. It is constructed primarily of formed steel, and incorporates arc welds for durability. The adjustable mounting rails can accommodate a maximum hole pattern of 410 mm wide and 340 mm tall.


  • Flat Panel Wall Mount
  • Hardware Kit
  • Instruction Manual

IMPORTANT NOTE: VMP products are not available to ship outside the U.S. Please contact VMP directly for international orders.

Install With Confidence

VMP mounting systems hang easily from walls or ceilings and are specially designed for maximum tilt and swivel capacity. This flexibility and rotating capability creates easy viewing from any angle. VMP mounting systems are manufactured from tempered high grade steel with a scratch resistant powder coat finish. They offer load capacities of up to 300 pounds, adjust to fit most televisions and monitors, and have been vigorously tested for safety. Many models are UL listed for extra safety and durability. VMP mounting systems include everything needed to assemble a complete mount, in one box, and require no special tools.


  • Manufacturer Part #: LCD-MID-FTB
  • Adjustable Tilt: -5° to +15°
  • Load Capacity: 100 pounds
  • Max. Mounting Hole Pattern: 410mm x 340mm
  • Distance from Wall to Back of Flat Panel: 2.4 inches
  • Dimensions: 19.0(W) x 14.5(H) x 2.4(D) inches – fully extended
  • Weight: 9 pounds
  • Warranty: "Forever Warranty"
