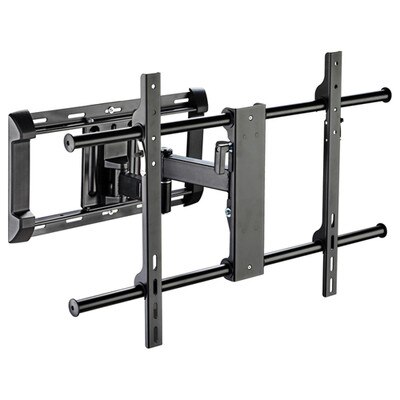

VMP Articulating Flat Panel Wall Display Mount, 42-70"

Load Capacity Up To 150 Pounds

The VMP Articulating Flat Panel Wall Display Mount (42-70") holds flat panels weighing up to 150 pounds, measuring from 42" to 70". The mount can be adjusted in a variety of ways to optimize the viewing angle for your flat panel display. Tilt, rotate, pull out from the wall, and push it back as you please. The mount also allows post-install level correction, ensuring a perfectly aligned installation.

• Holds most 42-70" flat panels up to 150 pounds
• Low profile depth of 2.9" when collapsed
• Extends out from wall up to 18.2"
• Rotates 45° and has adjustable 0-15° tilt
• Mounting rails accept padlocks for added security
• Clip-based cable management system

The mount is designed to attach to two studs approximately 16" apart, or other suitable support surfaces. It is constructed primarily of formed steel and aluminum, and incorporates arc welds for durability. The adjustable mounting rails can accommodate a maximum hole pattern of 800 mm wide and 500 mm tall. The mount is capable of tilting from 0° to +15°.

Contents

• Flat Panel Wall Mount
• (2) Mount Arms
• Wallplate
• Hardware Kit (screws, bolts, etc.)
• Instruction Manual

IMPORTANT NOTE: VMP products are not available to ship outside the U.S. Please contact VMP directly for international orders.

Install With Confidence

VMP mounting systems hang easily from walls or ceilings and are specially designed for maximum tilt and swivel capacity. This flexibility and rotating capability creates easy viewing from any angle. VMP mounting systems are manufactured from tempered high grade steel with a scratch resistant powder coat finish. They offer load capacities of up to 300 pounds, adjust to fit most televisions and monitors, and have been vigorously tested for safety. Many models are UL listed for extra safety and durability. VMP mounting systems include everything needed to assemble a complete mount, in one box, and require no special tools.

• Manufacturer Part #: FP-LWAB
• Adjustable Tilt: 0° to 15°
• Rotates: ±45°
• List Adjustment: ±3°
• Load Capacity: 150 pounds (68 kg)
• Max. Mounting Hole Pattern: 800mm x 500mm
• Dimensions: 34.1(W) x 21.65(H) x 18.2(D) inches
• Weight: 22.4 pounds
• Warranty: "Forever Warranty"

»VMP FP-LWAB Large Flat Panel Articulating Wall Mount Spec Sheet (.pdf)
»VMP FP-LWAB Full Motion Wall Mount Installation Manual (.pdf)
»VMP FP-LWAB Articulating Flat Panel Wall Display Mount Technical Drawing (.pdf)
