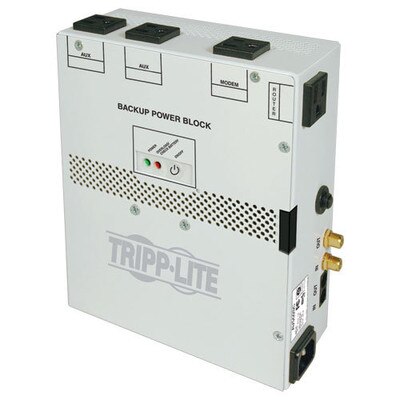

Tripp Lite 4-Outlet Backup Power Block for Structured Wiring Enclosure
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Exclusive Ups Protection For Structured Wiring Enclosures
The Tripp Lite 4 Outlet Backup Power Block provides the highest level of protection for structured cabling installations (ie. telephone, Internet and coax connections). With reliable battery backup, surge protection and EMI/RFI line noise filtering, this power block provides a complete protection solution for audio/video distribution systems by supporting modems, routers, RF amplifiers, network interfaces, cameras, modulators and other equipment through all power problems. In the event of a power failure, it includes an auto-restart feature that eliminates the need to perform an on-site restart. In addition, when a modem or router freeze-up occurs, the Power Block features a recycle/reset button with sequential outlet startup for proper modem and router rebooting.
Package Includes
- TPAV550SC backup power block
- Detachable 6 in. C14 power cord
- Owner’s manual
Uninterruptible Power Supplies From Tripp Lite
Tripp Lite UPS backup systems protect equipment from downtime, damage and data loss due to power problems. During a power outage, Tripp Lite backup power supplies allow you to maintain power long enough to save data and shut down PCs, servers and other equipment properly. As an added benefit, Tripp Lite Uninterruptible Power Supplies also protect against power surges and disruptive line noise. Tripp Lite has the perfect UPS System to protect and support every computer and electronics application – standby, line-interactive and on-line models in tower, rack mount/tower, low-profile and under-monitor cabinet styles.
Specifications
Product Features
- 3 widely-spaced AC outlets (2 Auxiliary, 1 Modem)power, reset or start up connected equipment during a blackout or system freeze-up (provide battery backup, surge protection and EMI/RFI filtering) – 4 outlets total
- 60-second delay-on AC outlet (router) powers and resets the router during a blackout or system freeze-up and delays router start-up for proper system rebooting (provides battery backup, surge protection and EMI/RFI filtering)
- 12V DC (1-Amp) output connector provides an additional output power source for 12V DC devices as well as battery backup protection for 4 devices
- Recycle/reset button resets connected equipment during system freeze-ups with sequential outlet startup
- HD-compatible 2.2GHz coax jacks protect connected coax lines against surge damage and filter disruptive EMI/RFI line noise.
- Tel/modem/DSL jacks protect connected telephone,modem or DSL lines against surge damage and filter disruptive EMI/RFI line noise
- IEC power input connector accepts included 6-inch power cord
- Diagnostic/Overload LEDs: Alert users to potential power problems before they affect connected equipment.
- Resettable circuit breaker prevents dangerous system overloads
- Auto-restart capability eliminates the need to perform an on-site restart
- 550VA/300 watts standby UPS system
- Convenient installation designed to fit in the bottom left corner of structured wiring enclosures without the need for mounting screws or brackets
- Mounting screw holes are included on the back of the unit for convenient board, wall or ceiling mounting (for projectors)
- Customizable labels for easier cord/cable indentification and maintenance
Technical Details
- Voltage compatibility: 120V AC
- Frequency compatibility: 60Hz
- Output:
- Output volt amp capacity (VA): 550
- Output watt capacity (watts): 300
- Output nominal voltage: 120V AC
- Output voltage regulation: BATTERY MODE: PWM sine wave output 120V ±5%
- Output frequency regulation: LINE MODE: passes line frequency of 60Hz ±10% BATTERY MODE: Inverter output regulated to 60Hz ±0.5Hz
- Outlet quantity / type: 4 NEMA 5-15R
- Overload protection: 10-amp breaker
- Input:
- Maximum input amps: 15A
- Input connection type: Detachable IEC320-C14 power cord
- Input cord length: 6 in.
- Recommended electrical service: 15A, 120V
- Battery:
- Full load runtime: 3 minutes
- Half load runtime: 10 minutes
- DC system voltage: 12V DC
- Typical battery lifespan: 3-6 years, depending on usage
- Battery recharge rate: 15 hours (10% to 90% capacity)
- LEDs Alarms and Switches:
- Front panel LEDs: 2 LEDs indicate power status and overload/check battery status
- Switches: Includes 1 on/off push button (also acts as recycle/reset button)
- Surge / Noise Suppression:
- AC surge suppression: 1038 joules
- AC suppression response time: instantaneous
- Dataline suppression: HD-compatible 2.2GHz coaxial and telephone/modem/DSL line surge protection
- EMI / RFI AC noise suppression: Yes
- Physical:
- Unit Dimensions (HWD/in): 8.35 x 6.78 x 2.97
- Material of construction: Metal
- Cooling method: Convection
- Line / Battery Transfer:
- Transfer time from line power to battery mode: 2-4 milliseconds
- Low voltage transfer to battery power: Switches to battery power when line voltage decreases to 99 volts or less. Resets to line power mode when line voltage increases to 104 volts or higher.
- High voltage transfer to battery power: Yes
- Certifications: 1778 (TUV) for US and Canada, NOM, FCC
- Appearance: White
