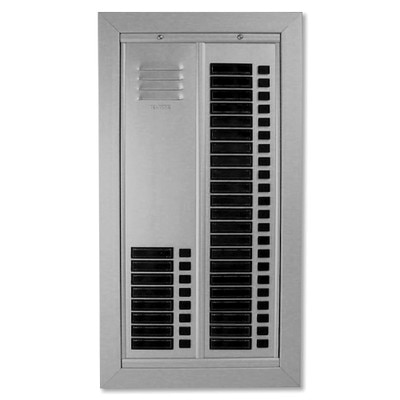

TekTone Add-on Vandal-Resistant Panel, Name Holders

TekTone Expansion For Larger Apartment Complexes

Add TekTone Apartment Entry Systems to extra large apartment complexes with the TekTone Add-On Vandal-Resistant Panel with Name Holders. This modular add-on apartment doorbell panel is designed to integrate with an AM492 series Apartment Entry Panel to increase the capacity of the TekTone system by 12 or 22 buttons. The panel is made of anodized extruded aluminum and the name holders are made of flame-retardant black plastic with clear plastic windows.

NOTE: Requires the following accessories for complete installation:

• OH192 Flush Box
• OF192 Trim

Communications for Today and Tomorrow

TekTone designs and manufactures high quality, affordable call systems and emergency alert devices for medical and residential applications. TekTone apartment entry and call systems are configured to accommodate 3-, 4-, or 5- wire intercom stations and are suited for outdoor environments.

• Manufacturer Part #:
• 12 buttons: AM490/12
• 22 buttons: AM490/22
• Dimensions: 16.5 (H) × 4 (W) inches (413 mm × 100 mm)
• Push Buttons: Individually replaceable type with self-wiping contacts.
• Construction: Modular, extruded anodized aluminum panel.
• Mounting:
• OH190 series housing for flush mounting
• OF190 series frame for surface mounting

»TekTone AM490 Apartment Entry Add-On Panels Spec Sheet (.pdf)
