Speco 4MP HD-TVI Mini IR Turret Camera

Capture 1440p Images Day or Night, Inside or Outside

Capture clear HD images in daylight or pitch darkness with the Speco 4MP HD-TVI Mini IR Turret Camera. This security camera provides HD resolution (up to 1440p @ 15fps) of surveilled areas in any lighting environment, including total darkness. It features a 2.9mm fixed lens with 12 IR LEDs for true day/night operation, and weather resistant casing performs exceptionally well in outdoor areas.

• 2.9 mm fixed lens captures HD resolution (2560x1440 @ 20fps)
• 12 IR LEDs for Day/Night true operation
• Weather resistant IP66 rated for durable use
• 3-axis adjustment allow for wall and ceiling mounting

This Speco Mini IR Turret Camera uses 12 IR LEDs to capture high-resolution images in various light levels, including total darkness, by utilizing infrared lighting to illuminate darker areas while retaining brighter areas for well balanced lighting. Light sources up to 35 feet away can be balanced and accounted for, resulting in clear, evenly lighted images at any time of day.

Remote Management from Your Computer or Phone

The Speco IR Turret Camera can be controlled via Speco's web management tool and free Speco Mobile app (iOS and Android) when connected to a compatible digital video recorder (DVR), sold separately. Through the web tool or the app, you can view live footage from connected cameras, adjust settings and customize presets for optimal, personalized performance.

Installation Details

This Turret IP Camera is weather-resistant (IP66) allowing for outdoor or indoor installation. 3-axis design enables versatile installation on walls or ceilings. The camera is powered by a 12VDC power supply.

Contents

• Camera
• Wrench
• Power lead
• (3) Mounting screws

Notes

• This device supports viewing and management via a web browser on a PC.
• 12VDC Power Supply not included.
• Digital video recorders (DVR) sold separately.

IMPORTANT NOTE: Speco Technologies products are not available to ship outside the U.S. Please contact Speco Technologies directly for international orders.

Speco Technologies

Speco Technologies is dedicated to providing the highest quality residential and commercial sound, security, CCTV closed circuit video and electronic accessories. Contractors, installers, builders, engineers, architects and homeowners rely on Speco products to satisfy both their commercial and residential needs.

• Manufacturer Part #:
• Dark Grey: HT471TG
• White: HT471TW
• Image Sensor: 1/3" Progressive Scan CMOS, 4MP
• Maximum Resolution: 2560 x 1440 @ 15fps (default)
• Minimum Illumination: 0.00 lux (IR LED on)
• Effective Pixels: 2184 (H) x 2202 (V)
• Total Pixels: 3096 (H) x 2281 (V)
• Electronic Shutter Speed: Auto / Manual
• White Balance: AWT/AWB
• IR LEDs: 12
• IR Range: 35 ft. (depending on scene reflection)
• Day/Night: Auto / Color / BW / Ext
• Scanning System: Progressive
• Synchronization: Internal
• Communication: UTC
• Frequency: 15.734kHz (H) / 60Hz (V)
• Video Output: 1.0Vp-p / 75 ohms
• S/N Ratio: More than 50dB
• White Balance: Auto
• Operating Temperature: 14° to 120° F (-10° C to 49° C)
• Power Supply: 12VDC (power supply not included)
• Power Consumption: 100mA (IR off) / 200mA (IR on)
• Certifications: FCC, RoHS, IP66

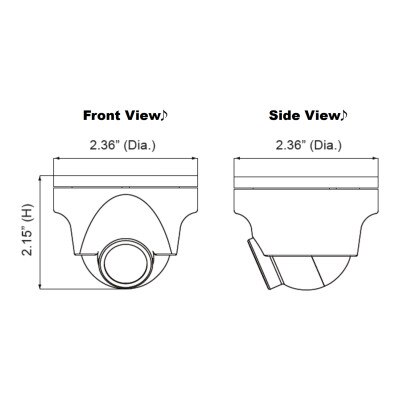

• Dimensions: 2.36 (Dia.) x 2.15 in (H) (59.94 Dia x 54.61 H mm)
• Weight: 10 oz.
• Warranty: 5 years

»Speco HT471Tx HD-TVI 4MP Mini-Turrent Color Cameras Spec Sheet (.pdf)
»Speco HT471Tx HD-TVI 4MP IR Outdoor Mini-Turrent Color Cameras User Manual (.pdf)
