SkylinkHome Lighting & Garage Door Starter Kit

SKU: SKSK4

Huge Savings! (All Sales Final.)

5 available at this price.

$57.50 $87.96

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Kit Provides Remote Lighting & Remote Garage Door Solution!

This easy to install, entry-level kit comes with a push button remote with the ability to control various lighting scenarios as well as your garage door. You can easily expand on this system with range extenders and additional receivers to really customize your home.

Kit Features

  • Push a button on the remote to control.
  • ON/OFF/Dimming* function.
  • Works with Incandescent and CFL bulbs, up to 300W load.
  • Create zones with multiple lights, achieve zone on/off/dimming.
  • Operates garage door opener with the same remote.
  • Wireless remote control range is up to 500 feet in open area.
  • Easy to install.

Smart Button Receiver Features

  • Compatible with most Garage Door Openers.
  • One Step Installation: Simply replaces or parallels your traditional wall button
  • Employs Skylink's rolling code technology.
  • Receives signal from remote control and opens/closes garage door.
  • Supports up to 16 remote controls (additional remotes sold separately).
  • FCC/IC approved.

Deluxe Remote Features

  • Credit Card sized transmitter
  • Up to 500 feet operating range in an open area. Long range, no problem.
  • Can dim if controlling a dimmable receiver and dimmable load
  • Control devices and/or up to 3 zones with unlimited devices in each zone. Good for large homes and business with different lights and applications.
  • Zone On/Zone Off Function: Control multiple lights in one zone up to 10 zones.
  • Zone Dimming: Allows multiple lights to be dimmed in the same zone.
  • All On/All Off: Turn all devices on/off. Good when leaving home and coming back.
  • Password setting
  • Long life lithium battery and Mounting Bracket included

Plug-In Dimmer Features

  • No wiring connection, just plug in to the wall outlet
  • Lighting control: ON/OFF/Dim
  • Operation modes: 1) ON/OFF 2) Countdown timer 3) Flashing alert.
  • Up to 500 feet operating range in an open area.

Wall Dimmer Features

  • Replaces existing wall switch.
  • No neutral wire is needed. Easy to install.
  • Lighting control: ON/OFF/Dim
  • Operation modes: 1) ON/OFF 2) Countdown timer 3) Flashing Alert.
  • Up to 500 feet operating range in an open area.
  • Up to 300W load.
  • Attractive built-in blue LED light

Screw-In Dimmer Features

  • No wiring connection, just screw in to a lamp socket
  • ON/OFF/Dim
  • Operates up to 60W load: Incandescent light bulbs, CFL, LED bulbs
  • Up to 500 feet operating range

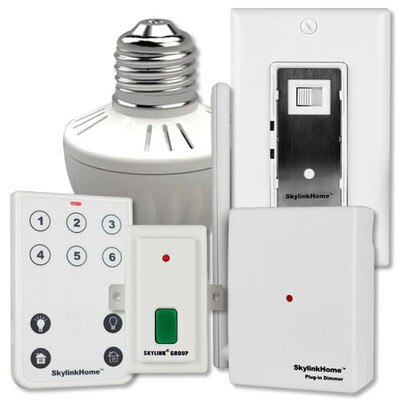

Kit Includes

  • Transmitter Model: TC-318-10
  • Plug In Dimmer Model: PL-318
  • Screw In Dimmer Model: LX-318
  • Wall Dimmer Model: WR-001
  • Smart Button Receiver Model: GB-318
  • Gift Box

Rolling Code Technology

Every time you press your remote transmitter, a code is generated which is recognized by the receiver that in turn performs the desired function. With most systems, there is only one assigned code. Whenever the remote is pressed, it generates the same code, making it vulnerable to code grabbers who use electronic scanners to steal the code. With rolling code technology, each time the remote is used, it generates a different code which can only be recognized by a rolling code receiver. Even if an electronic scanner picks up the code, the next code will not be the same, and the receiver will not recognize the old code. As a result, systems with rolling code technology are increasingly safe and secure.

NOTE: For dimming function, light bulbs must be dimmable.

IMPORTANT NOTE: Skylink products are not available to ship outside the U.S. Please contact Skylink directly for international orders.

SkylinkPad Wireless Lighting Control/Automation System

The SkylinkPad from Skylink Group is a wireless control system which allows the user to control almost anything electronic in the home, including lamps, garage doors, security systems, and coffee makers. The credit card size of the pad comes in six options and can have up to 14 buttons to control various household items.

Downloads

»SkylinkHome TC-318 Deluxe Remote Installation Manual (.pdf)
»SkylinkHome PL-318 Plug-In Dimmer/Repeater Installation Manual (.pdf)
»SkylinkHome LX-318 Mini Screw-In Dimmer Installation Manual (.pdf)
»SkylinkHome WR-001 Wall Switch Installation Manual (.pdf)
»SkylinkHome GB-318 Smart Button Garage Door Control Installation Manual (.pdf)

Videos
