SimplyProAV 4K Loaded Dongler

Connect 4K Video Sources to Any Display

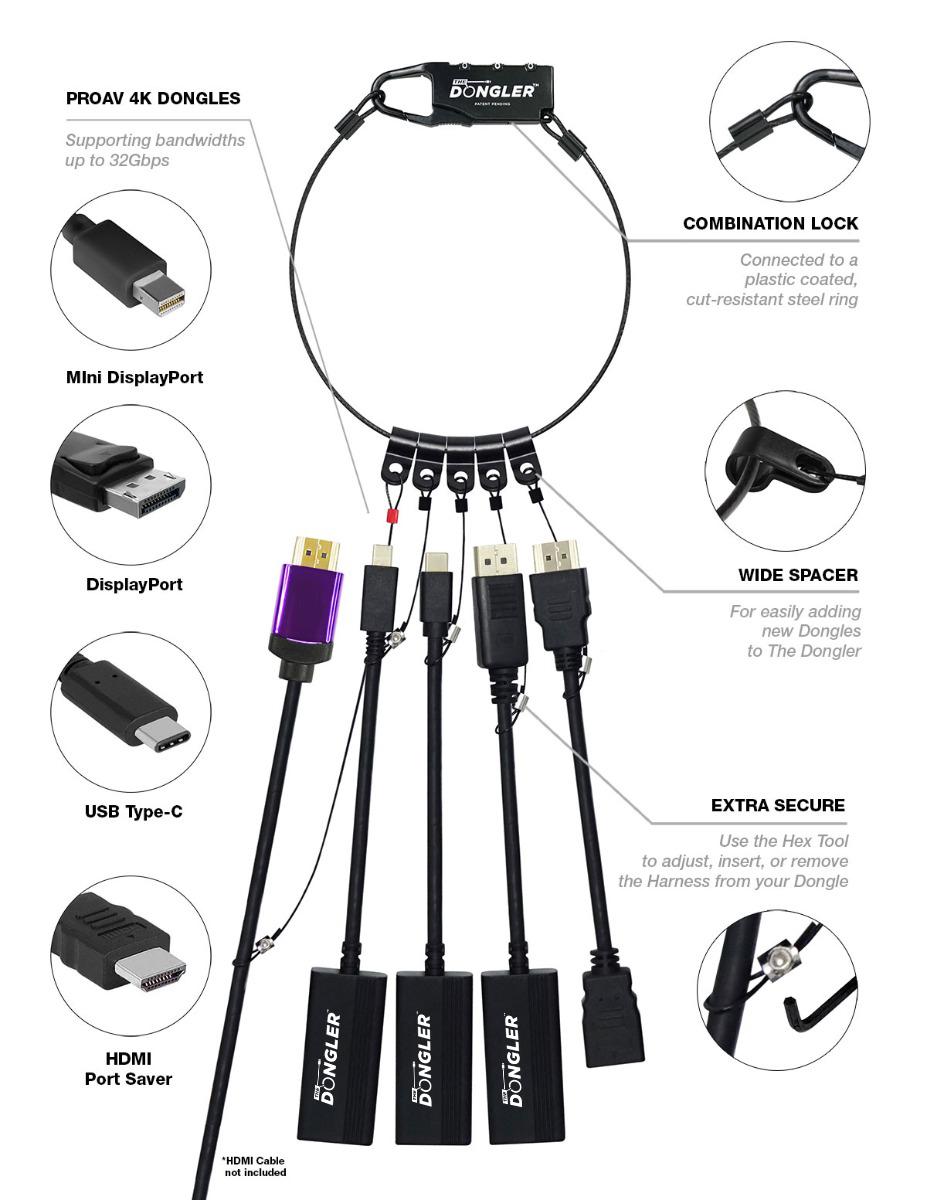

Connect any video source to an HDMI display with SimplyProAV 4K Loaded Dongler. This AV distribution adapter accessory consists of 4 HDMI output adapters each with a unique input for reliable connection for users on the go or at home. Each adapter supports the latest in HDMI performance design, supporting video resolutions up to 4K@60Hz with HDR and data transmissions up to 32Gbps. Each HDMI dongle is connected to a plastic-coated cut-resistant steel ring secured to a combination lock to avoid misplacement. Included harnesses aid in cable management and AV installation by securing the HDMI dongles to nearby furniture or structures.

• Four HDMI output adapters supports UHD 4K@60Hz resolutions with High Dynamic Range (HDR) and data transmissions up to 32Gbps
• Includes 1 DisplayPort, Mini-DisplayPort, 1 USB Type-C, and 1 HDMI Bidirectional Port Saver connected to a steel ring
• Perfect for on-the-go video presentations, complex home displays, or office work
• Combination Lock and plastic-coated steel ring secures your dongles and makes output changing easy
• Sleek aircraft aluminum housing for superior heat dissipation
• HDMI® 2.0b and HDCP 2.2 rated plus USB™ and VESA Certification
• Lifetime Warranty

Installation Details

The SimplyProAV 4K Loaded Dongler's plastic-coated cut-resistant steel ring and cut-resistant harnesses help organize the HDMI adapters. Each adapter and their connected cable can be secured to nearby structures, devices, or furniture, and unused adapters can be grouped together.

Contents

• (1) DisplayPort1.4
• (1) Mini-DisplayPort1.4
• (1) USB Type-C
• (1) HDMI Port Saver
• (1) HDMI infrastructure cable harness
• (1) Dongle harness locking tool
• (1) Extra screw and lock

NOTE: The 4K Loaded Dongler® is designed to discourage casual theft and the inadvertent removal of the attached dongles and adapters.

RJ45 Modular Plug Innovation and Performance Solutions

For over 20 years, Go Simply Connect™ has been a leading manufacturer in the networking industry for installing wire, cable, and field terminations. With innovative product lines that offer high-performing connectivity solutions, Go Simply Connect™ provides a slew of networking products that are used more and more in technology we use today as well as for future networking technologies that will keep everyone connected. Go Simply Connect™ provides products and experience to get the job done right, the first time.

• Manufacturer Part #: DO-L001
• UPC: 817777017687
• Weight (lb/kg): 0.68 lb / 0.30kg
• Dimensions (L x H x W): 9.8 x 1.6 x 7.9 in / 250 x 40 x 200 mm

Shared Adapter Features (Not Including HDMI Port Saver)

• Max. Resolution: UHD 4K@60Hz 4:4:4 at minimum 18Gbps data connection
• Supports HDR (High Dynamic Range)
• HDCP 2.2
• Professional Design for better durability and performance
• Lightweight aluminum enclosure for good thermal performance
• Easy Plug'n Play

DP1.4

• Connects PC/Laptop devices to HDTV/Monitor/Projector with HDMI output
• Supports DisplayPort 1.4a to HDMI 2.0b
• Supports Mirror or Extend mode
• Input: DisplayPort/M
• Output: HDMI A/F

MDP1.4

• Connects PC/Laptop devices to HDTV/Monitor/Projector with HDMI® output
• Supports DisplayPort 1.4a to HDMI 2.0b
• Supports Mirror or Extend mode
• Input: Mini DisplayPort/M
• Output: HDMI A/F

USB Type-C

• Input USB Type-C/M Input connects USB Type-C source to HDTV/Monitor/Projector with HDMI® output
• Converts USB Type-C signal to HDMI 2.0b signal
• DisplayPort Alt Mode needed for video output
• Input: USB Type-C/M
• Output: HDMI A/F

HDMI Port Saver

• Protects the HDMI port of your HDMI devices
• Input: HDMI A/M (Bi-directional)
• Output: HDMI A/F (Bi-directional)
• Pass Through
• Easy Plug'n Play
• Max. Resolution: 4K@60Hz
• HDMI specifications and features dependant on connected HDMI cable
