  • Simply45 10G Rated RJ45 Ultra Slim Shielded Field Plug for Cat6/6a/7a Shielded LAN Cables

Simply45 10G Rated RJ45 Ultra Slim Shielded Field Plug for Cat6/6a/7a Shielded LAN Cables

SKU: GSS451710S

Order now and we'll ship same business day (if ordered before 3 pm PST).

$13.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

For Use With Shielded Cat6/6a/7A LAN Cables

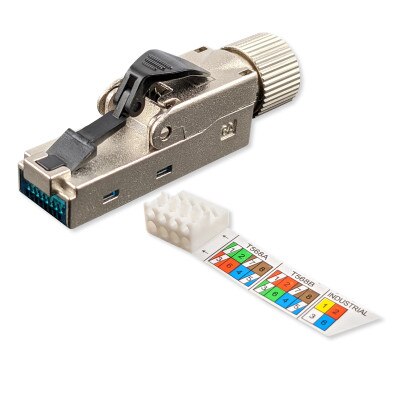

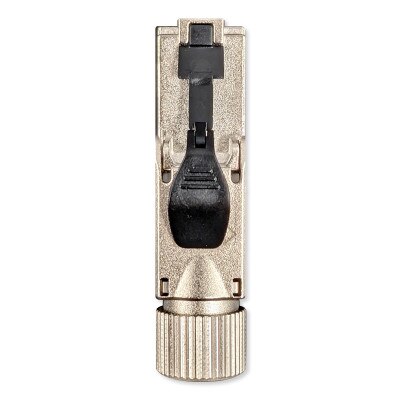

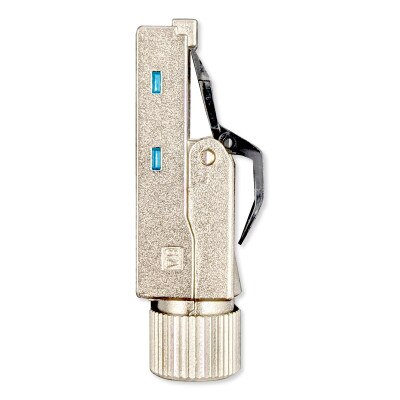

Enhance the termination of networking shielded LAN cables with the Simply45 10G Rated RJ45 Ultra Slim Shielded Field Plug for Cat6/6a/7a Shielded LAN Cables. This 10G RJ45 field plug features an ultra slim design, a built-in strain relief, PoE/PoH support, and improved wiring layout. All of these features combined offer faster, shallower terminations as well as support for side-by-side installations in device sockets and high density patch panels. There are no special tools needed for installation and included is a wiring label with TIA 568 A/B patterns. This 10G Rated RJ45 Ultra Slim Shielded Field Plug is constructed out of one piece, is ideal for large diameter cables and conductors, and supports 22~26 AWG Solid Wire or 23~27 AWG Stranded Wire.

  • Ultra slim, one piece design with built-in strain relief
  • Supports Cat7a/7/6a/6 shielded cables with 22~26 AWG conductor diameters
  • No special tools needed for installation
  • Reusable termination is capable up to 5 times
  • Standards Compliance: ANSI/TIA 568.2-D; ISO/IEC 11801 Class Fa, Ea, E; TIA 1096-A

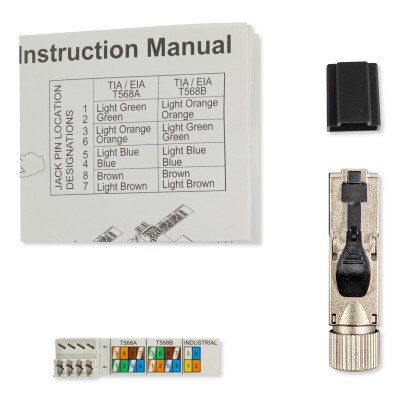

Contents

  • Shielded RJ45 Field Plugs (10 Pack)

RJ45 Modular Plug Innovation and Performance Solutions

As the leading brand for RJ45 modular plug innovative solutions, Simply45 has changed the industry for the better, offering high performance RJ45 modular plug solutions for commercial networking, certified systems, HDBaseT, PoE/PoH, and all professional installations. Simply 45 was the first to incorporate the 3-prong 24ct gold plated pin design with the highest quality materials to lower resistance, improve signal conductivity, and enhance electrical performance.

Specifications

  • Manufacturer Part #: S45-1710S
  • UPC: 810093720187
  • Quantity: 10 Pack
  • Wiring Label: TIA 568 A/B Patterns
  • Reusable Termination Capability: Up to 5 Times
  • PoE/PoH Support: IEEE 802.3bt
  • Protection Category: IP 20
  • Overall Cable Diameters: 6.0mm to 9.0mm
  • Size: 1.8 (L) x 0.53(H) x 0.4(W) inches (48.05 x 13.5 6 x 11.68)
  • Compliance: ANSI/TIA 568.2-D; ISO/IEC 11801 Class Fa, Ea, E; TIA 1096-A

Downloads

»Simply45 S45-1710S 10G Rated RJ45 Ultra Slim Shielded Field Plug Spec Sheet (.pdf)
