Siamese Cable (1 RG59/U Single Shield Coax, 1 Power 18/2), Direct Burial, 1,000'

SKU: WRRG59USDB10

Usually ships in 1-2 days.

NOTE: This is a heavy/dimensional part; it is not eligible for free shipping.

$433.95

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

Coax & Power Cable for CCTV Applications

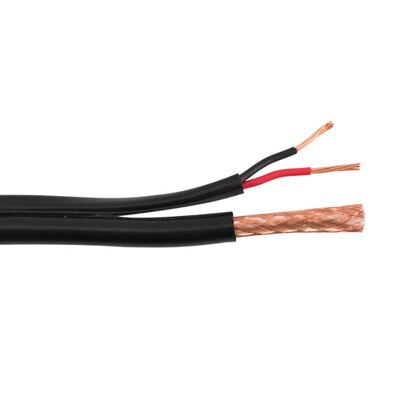

Perfect for video surveillance installations, this Siamese Cable (Direct Burial, 1,000') has one RG59/U Single Shield Coax Cable and one 18/2 Power Cable bonded together for convenient, single-run wiring. Use the coaxial cable for video and the 18/2 cable to power your cameras. Each cable's jacket is rated for direct burial to support underground wiring applications. It comes in spools of 1,000 feet.

  • 18 AWG/2C power cable bonded to RG59/U coax cable
  • Ideal for commercial or residential CCTV applications
  • Direct burial PE rated jackets support underground wiring
  • Coax with solid copper center conductor (20 AWG, 75 Ohm)
  • Foam polyethylene dielectric insulation surrounds conductor

The coax cable is single-shield with a 20 AWG solid copper center conductor, a foam polyethylene dielectric insulation surrounding the conductor, and a 95 percent copper braid shield to prevent interference.

NOTICE: This part is a heavy/dimensional product; it is not eligible for free shipping. Wire products are not returnable.

Quality Installations Deserve Quality Products

Structured Cable Products is a manufacturer of high quality structured wiring products, security, fire alarm, speaker as well as LAN cable and accessories. With over 15 years of manufacturing and distribution experience of quality cable and accessories SCP can provide all of your cable and accessory solutions.

Specifications

  • Manufacturer Part #: RG59/U-S-DB
  • Description: RG59/U SIAMESE DIRECT BURIAL 20 AWG BC, 95% BRAID + 18/2 PWR- BLACK- 1000 FT- SPOOL
  • Marking: STRUCTURED CABLE PRODUCTS — P/N: RG59/U-S-DB — RG59/U COAX CCTV SIAMESE DIRECT BURIAL 20 AWG BC 95% BRAID + 2C/18 AWG POWER — PE JKT — CE EU RoHS EC ZONE/DEVICE A B C D E 0 1 2 3 4 5 6 7 8 9 xxxFEET
  • Standards: CE, RoHS

Construction

  • Center Conductor: Solid Bare Copper
    • Size: 20AWG
    • Diameter (in/mm): 0.032/0.81
  • Insulate: Skin Foam PE
    • Nom. Thickness(in/mm): 0.056/1.42
    • Insulation Diameter (in/mm): 0.144/3.66
  • Braid Shield: Bare Copper
    • Coverage Area: 95 percent
  • Flood: ADP
  • Jacket: Black PE
    • Nom. Thickness (in/mm): 0.030/0.76
    • Min. Thickness (in/mm): 0.024/0.61
    • Cable Diameter (in/mm): 0.236/6.00

Power Wire

  • Conductor: 18AWG Stranded Bare Copper
    • Size: 7x26AWG
  • Insulate: Black/Red FR-PVC
    • Insulation Diameter (in/mm): 0.067/1.70
    • Cabling Lay Length (in/mm): 2/50.8
  • Jacket: Black FR-PVC
    • Thickness (in/mm): 0.019/0.48

Performance

  • Dielectric Strength: 1 kV/min
  • Impedance: 75 ohms ±3.0 ohms
  • SRL (dB): 5~1000MHz >=20
  • Capacitance: 16.2 pF/ft
  • Conductor DCR: 10.43 ohms/kft at 20°C
  • DC Loop Resistance: 19.98 ohms/kft at 20°C
  • Velocity Of Propagation: 85 percent

Mechanical Characteristics

  • Test Object: Jacket
  • Before Tensile Strength: 2300 psi
  • Aging Elongation: 450 percent
  • Cold Bend Test: -40°C 4 hours; No Cracking
  • Jacket Longitudinal Shrinkage: >=5 percent
  • Center Conductor Break Strength: 85 pounds
  • Operating Temperature Range: -40°C to 80°C
