Shelly Wi-Fi Dimmer 2 Smart Relay, No Neutral

Use Wi-Fi To Add Dimming Control To Your Light Switch

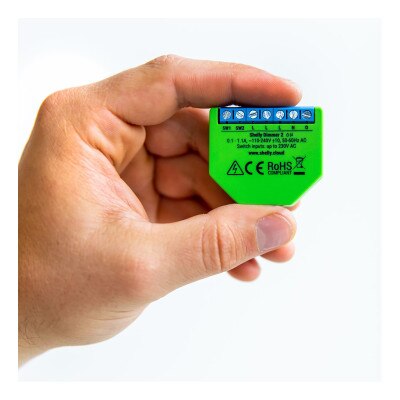

Add remote dimming functionality to your in-wall light switch with the Shelly Dimmer2 Smart Wi-Fi Module, No Neutral. This Wi-Fi connected dimmer module fits behind your light switch to issue On/Off/Dim/Brighten commands over a connected light through the switch, or remotely via your smartphone, tablet, PC, or home automation system. This device does not require a smart hub to operate, which provides you faster installation time and versatile control as either a stand-alone device or added later into a smart home system. This Wi-Fi dimmer module features 0-10V outputs for various applications as well as 2 switch/button inputs (SW1 and SW2) for light control and 2 power supply inputs (1N and 1L) for Live terminals. It supports remote commands for multiple types of drivers including lights, motors, valves, fan speed, and can even be integrated into home automation scenes such as turning on or dimming a connected light when motion is detected (motion sensor required, sold separately).

• Wire-in Wi-Fi module adds On/Off and Dim/Brighten commands to a light switch and On/Off commands to compatible electrical loads
• Supports dimmable Incandescent, LED, and halogen lights, as well as resistive loads
• Monitors and reports power consumption of connected switches and lights
• Small size allows it to be installed behind existing single or dual gang switches, no neutral wire required
• Overload and temperature protection prolongs lifetime operation and increases reliability
• Easily integrates directly into your Wi-Fi network (does not require a smart hub)
• Built-in Bluetooth connectivity for quick setup from your mobile device or can be used as a Bluetooth gateway
• Smartphone control via the Shelly Smart Control App (for iOS or Android) or through your home automation system's app
• Set custom schedules based on daily routine or follow sunrise/sunset to automatically control your lighting
• Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates

Shelly Smart Control App – Everything at Home Connected

Enjoy enhanced home automation control and precise monitoring of your Shelly devices no matter where you are with the Shelly Smart Control app. The app connects to Shelly's cloud service to help you control your connected devices remotely and send notifications for all automated events in your home directly to your smart device. You can easily configure devices and manage their settings individually, or you can create personalized scenes by combining Shelly devices to trigger certain actions in your home automation. The Shelly Smart Control App supports real-time power metering with power management (PM) devices, smart plugs, and smart bulbs in order to allow you to build complex automation solutions for improved energy efficiency and lower electricity bills.

• Easy Inclusion and Control: Include and name new devices in the Shelly Smart Control app, assign them to the rooms they are located in, and group them into scheduled or automated scenes.
• Custom Dashboard: Create multiple dashboards for quick access to your preferred devices, rooms, and scenes. Issue commands using your dashboards or your preferred voice assistant towards individual devices or a group of devices.
• Smart Scenes: Combine multiple devices into one smart scene with pre-set triggered actions. Lower the lights when the TV is turned on for a "Movie night". Cut off the power and send a notification when a space heater has been left on past 9am while you are "Away at Work".
• Custom Schedules and Timers: Teach your home how to make you more comfortable by setting custom schedules based on your agenda. You can set a Shelly controlled switch to turn on the outdoor lights at 7:00 PM on workdays, or turn on your heater an hour before you return from work.
• Energy Monitoring: An energy consumption panel gives you a detailed view of your live and recorded energy usage from devices controlled by Shelly Qubino products. The information is stored in a free cloud and fully accessible to you for further analysis of your energy consumption habits.
• Works with Alexa: The Shelly Smart Control app is natively compatible with Amazon Alexa.

Installation Details

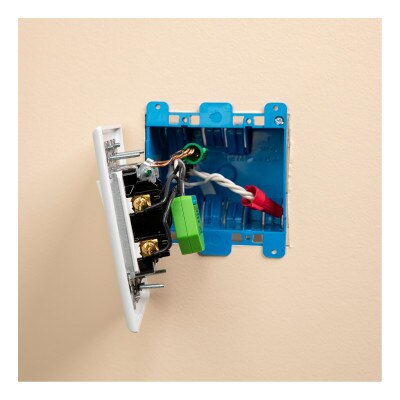

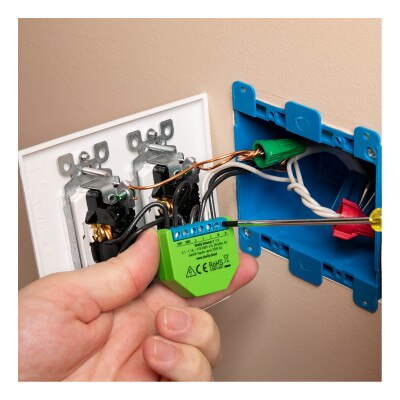

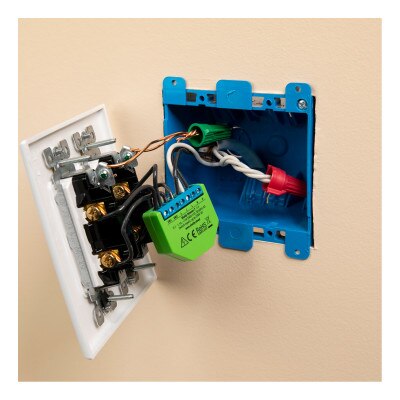

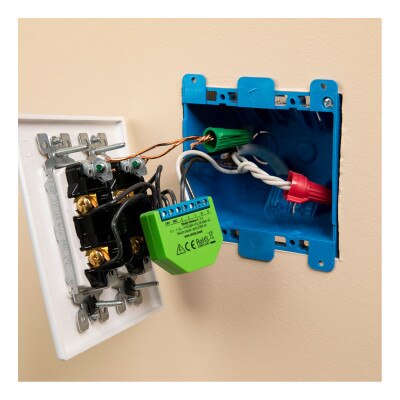

The Shelley Dimmer2 fits within single gang electrical boxes behind switches or electrical control panels and connects with a 2 wire connection, no neutral wire required.

Contents

• Shelly Dimmer 2
• Manual

NOTE: Requires connection to a Wi-Fi network.

Shelly Qubino Provides A 100% Wireless Smart Home

Shelly Qubino creates innovative and affordable smart home devices for residential and business applications. Shelley creates smart lighting and appliance control devices and other smart home and smart security products. Their Z-Wave devices use the legacy Qubino brand name and their Wi-Fi devices use the main Shelly brand name. Shelly Qubino utilizes the latest wireless technologies to deliver superior automation, safety, and energy efficiency to their customers without breaking down their walls or bank accounts.

• Manufacturer Part #: Dimmer2-1
• EAN: 3800235262184

Power

• Power Supply AC: 110-230V ±10%, 50/60Hz

Special Functions

• Device Temperature Protection: Yes; up to 203°C (95°C)
• Overload Protection: Yes
• Power Measurement: Yes
• Dimming: Yes
• Operational Current: 0.1-1.1 A
• Dimmable LED: 50-200VA / 10W ~ 200W
• Incandescent and Halogen Light Sources: 10-220W
• Works Without a Neutral Line: Yes

Features

• Colour Changing: No
• Predefined Effects: Yes
• Channels: 1 Channel
• Operating Temperature: 32 to + 104°F (0 ~ 40°C)
• Device Power Consumption: <1 W
• Intelligent On/Off: Yes
• Local and Remote Control: Yes
• Sunrise/Sunset: Yes
• Weekly Schedule: Yes
• UL Listed Option: No

Connectivity

• Wireless/WiFi Protocol: 802.11 b/g/n
• Radio Frequency: 2400 ~ 2500 MHz
• Range: up to 50 m outdoors and up to 30 m indoors (depending on the building materials)

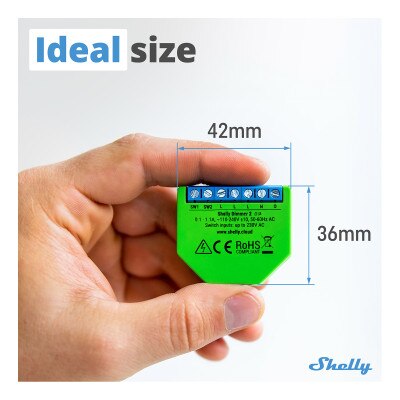

• Size: 42mm x 36mm x 14 mm
