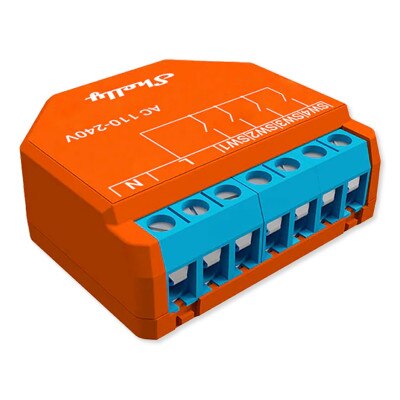

Shelly Plus i4 Input Controller

Easily Create & Activate Automation Scenes With A Push Of A Button

Activate home automation scenes or actions directly from a wall switch without having to use a smart home hub with the Shelly Plus i4 Input Controller. This input controller installs behind a wall switch and is specifically built for standard home installations that require AC power. It's powered by 110-240 V AC and can connect to 4 inputs that can each activate a different action or home automation scene. Featuring 4 switch/button inputs and 3 power supply inputs, it connects to your Wi-Fi network so you can utilize its embedded web server to access and manage it remotely from any location you have an Internet connection with a computer or mobile device. It can be used to control other Shelly switches, sensors, or devices controlled by HTTP and MQTT protocols, and it has Bluetooth connectivity to allow you to quickly add connected devices for the initial setup and pairing using the Shelly Cloud app (for iOS and Android).

The Shelly Plus i4 Input Controller operates without the need for a smart hub and is ideal for connecting to a wall switch that has up to 4 buttons. Each button supports up to four different actions, which means a single 4-button switch can trigger up to 16 individual actions. It's also designed with a Smart Schedule feature that will allow you to automatically trigger actions or home automation scenes at set times. You'll be able to create scenes that will turn On/Off lights, shut the blinds, turn off outlets, or adjust thermostats when a button is pressed or at a desired time such as every weekday at 7:00 a.m. Additionally, it's designed with an ESP32 fast processor for an improved API interface and offers Overheat Protection to cut power and prevent damage to connected devices that may overheat.

• Installs behind a wall switch (AC power) with up to 4 buttons that can each trigger automation scenes – no smart hub required
• Create automation scenes that can turn On/Off lights, shut blinds, adjust smart thermostat settings, and more
• Powered by 110-240 V AC, offers overheating protection, and is managed via its embedded web server
• Designed with fast, ESP32 processor with improved API interface
• Supports Java scripting, HTTP webhooks, MQTT, and integration with other automation platforms

Shelly Smart Control App – Everything at Home Connected

Enjoy enhanced home automation control and precise monitoring of your Shelly devices no matter where you are with the Shelly Smart Control app. The app connects to Shelly's cloud service to help you control your connected devices remotely and send notifications for all automated events in your home directly to your smart device. You can easily configure devices and manage their settings individually, or you can create personalized scenes by combining Shelly devices to trigger certain actions in your smart home network. The Shelly Smart Control App supports real-time power metering with power management (PM) devices, smart plugs, and smart bulbs in order to allow you to build complex automation solutions for improved energy efficiency and lower electricity bills. Shelly devices are compatible with other most widely accepted both local and cloud based home automation platforms. A Shelly Smart Control App user account is required to access, include, and control Shelly devices through the Shelly Smart Control application and include your Shelly devices to 3rd party home automation or voice assistant platforms like SmartThings, Amazon Alexa or Google Home.

• Easy Inclusion and Control: Include and name new devices in the Shelly Smart Control app, assign them to the rooms they are located in, and group them into scheduled or automated scenes.
• Custom Dashboard: Create multiple dashboards for quick access to your preferred devices, rooms, and scenes. Issue commands using your dashboards or your preferred voice assistant towards individual devices or a group of devices.
• Smart Scenes: Combine multiple devices into one smart scene with pre-set triggered actions. Lower the lights when the TV is turned on for a "Movie night". Cut off the power and send a notification when a space heater has been left on past 9am while you are "Away at Work".
• Custom Schedules and Timers: Teach your home how to make you more comfortable by setting custom schedules based on your agenda. You can set a Shelly controlled switch to turn on the outdoor lights at 7:00 PM on workdays, or turn on your heater an hour before you return from work.
• Energy Monitoring: An energy consumption panel gives you a detailed view of your live and recorded energy usage from devices controlled by Shelly Qubino products. The information is stored in a free cloud and fully accessible to you for further analysis of your energy consumption habits.
• Works with Alexa: The Shelly Smart Control app is natively compatible with Amazon Alexa.

Contents

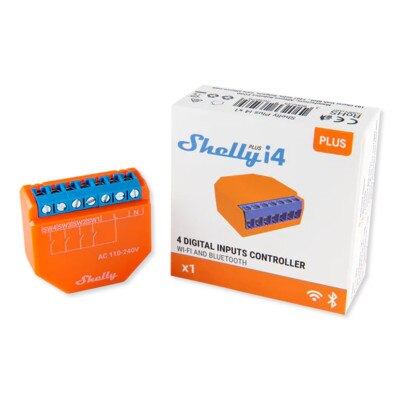

• Shelly Plus i4 Input Controller
• Manual

NOTE: Requires connection to a Wi-Fi network.

Shelly Provides A 100% Wireless Smart Home

Shelly creates innovative and affordable smart home devices for residential and business applications. Shelly, formerly Qubino, now focuses on providing Wi-Fi and Z-Wave compatible smart home solutions. Shelly devices are among the smallest automation control devices in the world, allowing them to find their place in nearly any sized smart home installation. Shelly utilizes the latest technologies to deliver superior automation, safety, and energy efficiency to their customers without breaking down their walls or bank accounts.

• Manufacturer Part #: Plus i4
• Model: SNSN-0024X
• EAN: 3800235265697
• Warranty: 3 Years

Physical

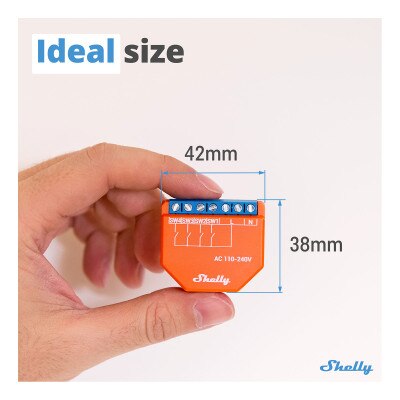

• Size (H x W x D): 1.46 x 1.65 x 0.63 inch (37 x 42 x 16 mm)
• Weight: 18 g / 0.63 oz
• Mounting: Wall box
• Screw Terminals Max. Torque: 0.4 Nm / 3.5 lb in.
• Conductor Cross Section: 0.5 to 1.5 mm² / 20 to 16 AWG
• Conductor Stripped Length: 5 to 6 mm / 0.20 to 0.24 in
• Shell Material: Plastic
• Shell Color: Orange

Environmental

• Ambient Temperature: -20°C to 40°C / -5°F to 105°F
• Humidity: 30 % to 70 % RH
• Max. Altitude: 2000 m / 6562 ft

Electrical

• Power Supply: 110-240 V, 50/60 Hz
• Power Consumption: <1 W
• Internal Temperature Sensor: Yes

Radio

• RF Band: 2400 – 2495 MHz
• Max. RF Power: <20 dBm
• Wi-Fi:
• Protocol: 802.11 b/g/n
• Range (Depends on Local Conditions): Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
• Bluetooth:
• Protocol: 4.2
• Range (Depends on Local Conditions): Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors

Microcontroller Unit

• CPU: ESP32-U4WDH
• Flash: 4 MB

Firmware Capabilities

• Webhooks (URL actions): 20 with 5 URLs per hook
• Scripting: Yes
• MQTT: Yes
