Shelly Plus Uni

Remote Control Old Appliances and Legacy Devices Using Wi-Fi

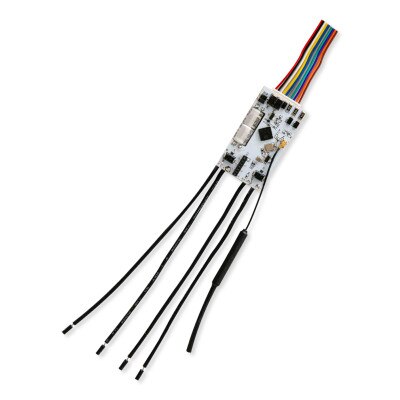

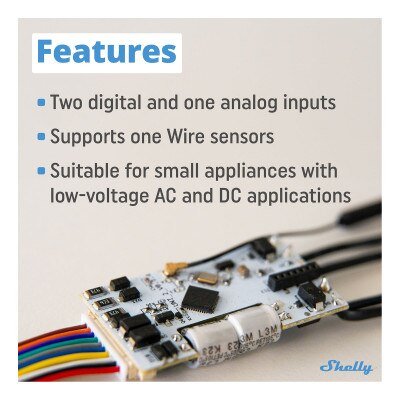

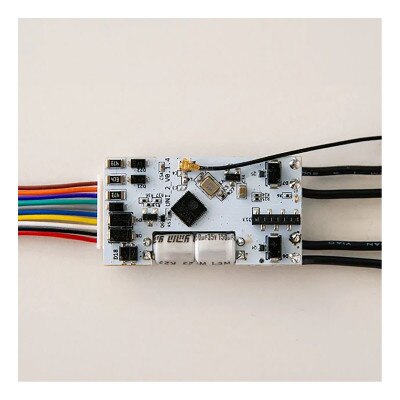

Add smart functionality to old appliances and legacy devices with the Shelly Plus Uni. This smart module is designed for low-voltage AC or DC applications (8-24 VAC, 9-28 VDC, and 5 VDC) and features one analog input, an 11-Wire data input, one pulse counter input, two digital inputs, one sensor power supply output, and two potential-free contacts solid-state relay outputs. The Shelly Plus Uni is specifically designed to retrofit and automate old devices and appliances such as intercoms, alarm systems, garage doors, exterior gates, old switches, and just about any low-voltage old device. Additionally, it offers pulse counting functionality for precise data readings from your energy, gas, or water meter so you can get a clear view of your electricity and water usage. You can also reduce monthly costs based on data information you get from your meter or connected device and integrate smart sensors that can trigger actions automatically – such as using a temperature sensor that can activate a fan to automatically turn On when the temperature rises above 75°F.

The Shelly Plus Uni is Wi-Fi operated, uses Bluetooth connectivity, and does not require the use of a smart hub. It can work as a Wi-Fi extender and Bluetooth Gateway, which can help improve the performance of your smart home network. You'll be able to easily control and manage it via the Shelly Smart Control app (for iOS and Android devices), and it's compatible with the majority of smart home platforms, protocols, and voice assistants like Alex and Google Assistant. Designed with an ESP32 fast processor and an embedded Web Interface, it provides quick and reliable actions when using it to remote control old electrical devices via a mobile phone, tablet, PC, or home automation system.

• Connects to old appliances and legacy devices to add Wi-Fi remote control, Bluetooth connectivity, and automation control
• Easily integrates into your Wi-Fi network and works as a Wi-Fi extender – no smart hub required
• Supports low-voltage devices (8-24 VAC, 9-28 VDC, and 5 VDC), such as intercoms, alarm systems, garage doors, exterior gates, and old switches
• Pulse Counting and Precise Voltmeter features allow data readings and voltage measurements in 2 ranges (0-15 VDC, 0-30VDC)
• Bluetooth connectivity for easy inclusion or can be used as a Bluetooth gateway
• Equipped with an upgraded ESP32 processor and expanded flash memory for improved performance
• Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates

Shelly Smart Control App – Everything at Home Connected

Enjoy enhanced home automation control and precise monitoring of your Shelly devices no matter where you are with the Shelly Smart Control app. The app connects to Shelly's cloud service to help you control your connected devices remotely and send notifications for all automated events in your home directly to your smart device. You can easily configure devices and manage their settings individually, or you can create personalized scenes by combining Shelly devices to trigger certain actions in your smart home network. The Shelly Smart Control App supports real-time power metering with power management (PM) devices, smart plugs, and smart bulbs in order to allow you to build complex automation solutions for improved energy efficiency and lower electricity bills. Shelly devices are compatible with other most widely accepted both local and cloud based home automation platforms. A Shelly Smart Control App user account is required to access, include, and control Shelly devices through the Shelly Smart Control application and include your Shelly devices to 3rd party home automation or voice assistant platforms like SmartThings, Amazon Alexa or Google Home.

• Easy Inclusion and Control: Include and name new devices in the Shelly Smart Control app, assign them to the rooms they are located in, and group them into scheduled or automated scenes.
• Custom Dashboard: Create multiple dashboards for quick access to your preferred devices, rooms, and scenes. Issue commands using your dashboards or your preferred voice assistant towards individual devices or a group of devices.
• Smart Scenes: Combine multiple devices into one smart scene with pre-set triggered actions. Lower the lights when the TV is turned on for a "Movie night". Cut off the power and send a notification when a space heater has been left on past 9am while you are "Away at Work".
• Custom Schedules and Timers: Teach your home how to make you more comfortable by setting custom schedules based on your agenda. You can set a Shelly controlled switch to turn on the outdoor lights at 7:00 PM on workdays, or turn on your heater an hour before you return from work.
• Energy Monitoring: An energy consumption panel gives you a detailed view of your live and recorded energy usage from devices controlled by Shelly Qubino products. The information is stored in a free cloud and fully accessible to you for further analysis of your energy consumption habits.
• Works with Alexa: The Shelly Smart Control app is natively compatible with Amazon Alexa.

Installation Details

Unlike most Shelly devices, which are designed to be installed behind wall switches and outlets, the Shelly Plus Uni is typically mounted inside equipment, panels, or enclosures. It operates on low-voltage AC or DC power (8–24 VAC, 9–28 VDC, or 5 VDC) and allows you to add Wi-Fi control, monitor sensors, and create automation without wiring directly behind a wall switch.

Contents

• Shelly Plus Uni
• Manual

NOTE: Requires connection to a Wi-Fi network.

Shelly Provides A 100% Wireless Smart Home

Shelly creates innovative and affordable smart home devices for residential and business applications. Shelly, formerly Qubino, now focuses on providing Wi-Fi and Z-Wave compatible smart home solutions. Shelly devices are among the smallest automation control devices in the world, allowing them to find their place in nearly any sized smart home installation. Shelly utilizes the latest technologies to deliver superior automation, safety, and energy efficiency to their customers without breaking down their walls or bank accounts.

• Manufacturer Part #: Plus Uni
• Model: SNSN-0043X
• EAN: 3800235265710
• Warranty: 3 Years

Physical

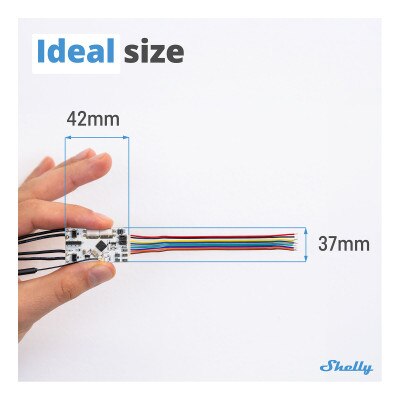

• PCB Size (H x W x D): 1.57 x 0.83 x 0.28 inch (40 x 21 x 7 mm)
• Weight: 8.5 g / 0.3 oz (with the cables)

Environmental

• Ambient Temperature: -20°C to 40°C / -5°F to 105°F
• Humidity: 30 % to 70 % RH

Electrical

• Power Supply:
• 8-24 VAC
• 9-28 VDC
• 5 VDC (stabilized, via +5 VDC and GND)
• Power Consumption: <1 W

Input Circuits Ratings

• Digital Inputs Resistance: 50 kΩ
• Digital Inputs Triggering Voltage: 1.5 V (active low level)

Output Circuits Ratings

• Max. Switching Voltage: 30 V
• Max. Switching Current: 300 mA

Sensors, Meters

• Voltmeter: 0-15 VDC / 0-30 VDC (Two-range)
• Voltmeter Accuracy:
• Pulse Counter Input Triggering Voltage: 1.5 V (active low level)
• Pulse Counter Max. Frequency: 1 kHz
• External Sensors Supported: Single DHT22 or up to five DS18B20

Radio

• Wi-Fi:
• Protocol: 802.11 b/g/n
• RF Band: 2400 – 2495 MHz
• Max. RF Power: <20 dBm
• Range (Depends on Local Conditions): Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
• Bluetooth:
• Protocol: 4.2
• Range (Depends on Local Conditions): Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors

Microcontroller Unit

• CPU: ESP32-U4WDH
• Flash: 4 MB

Firmware Capabilities

• Schedules: 20
• Webhooks (URL actions): 20 with 5 URLs per hook
• Scripting: Yes
• MQTT: Yes
• CoAP: Yes

»Shelly Plus Uni User Manual (Multilingual) (.pdf)
