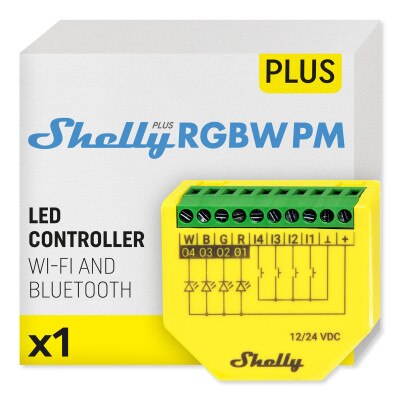

Shelly Plus RGBW PM

Control LED Strip From A Remote Location

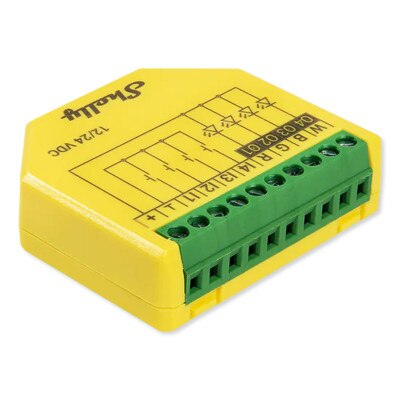

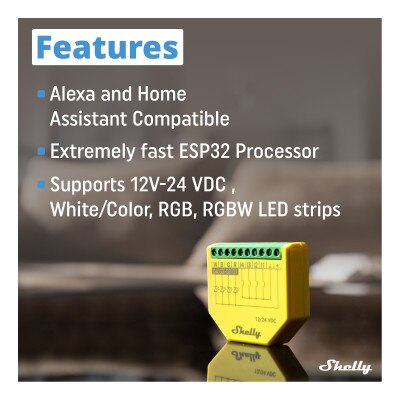

Add remote control and dimming functionality to your LED strip lights with the Shelly Plus RGBW PM. This RGBW controller installs behind a wall switch to add Wi-Fi and Bluetooth connectivity to enable On/Off/Dim/Brighten commands over a connected LED strip through the switch, or remotely via your smartphone, tablet, PC, without the use of a smart home hub. The Shelly Plus RGBW PM features 4 switch/button inputs, 2 power supply inputs, and 4 outputs as well as support for any 12V or 24VDC mono-color, RGB, and RGBW LED strips. It supports three profiles: RGBW, RGB, and Lights x4, with the Lights x4 mode enabling independent control of multiple LED strips. It's also designed with an ESP32 processor for faster performance, improved security, more memory, and greater reliability when used in automation applications within a Wi-Fi network.

The Shelly Plus RGBW PM also tracks power consumption with precise monitoring capabilities, allowing you to manage energy usage to help cut electricity costs without sacrificing the quality of the light. This RGBW controller lets you easily set the mood with dimming options and a wide selection of effects, offering up to 16 million colors to choose from. You can also add it to home automation scenes and combine it with other Shelly devices to set custom schedules, such as having your LED strips in your bedroom turn on each morning in a warm orange hue to mimic a sunrise. Using the Shelly Smart Control App (for iOS and Android), the Shelly Plus RGBW PM can be accessed, controlled, and monitored using your smartphone or tablet, and it's compatible with various home automation platforms and voice assistants such as Amazon Alexa and Google Assistant for easy voice commands.

• Wire-in RGBW controller installs behind a wall switch to add On/Off and Dim/Brighten commands to an LED strip
• 3 lighting profiles: RGBW, RGB, and Lights x4 and choose between 16 million colors, unique effects, and night mode
• Wi-Fi operated, works as a Wi-Fi range extender, and integrates into your Wi-Fi network – no smart hub required
• Bluetooth connectivity for easy inclusion or can be used as a Bluetooth gateway
• Smartphone control via the Shelly Smart Control App (for iOS or Android) or through your home automation system's app
• Set custom schedules based on daily routine or combine with other Shelly devices for home automation scenes
• Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates

Shelly Smart Control App – Everything at Home Connected

Enjoy enhanced home automation control and precise monitoring of your Shelly devices no matter where you are with the Shelly Smart Control app. The app connects to Shelly's cloud service to help you control your connected devices remotely and send notifications for all automated events in your home directly to your smart device. You can easily configure devices and manage their settings individually, or you can create personalized scenes by combining Shelly devices to trigger certain actions in your smart home network. The Shelly Smart Control App supports real-time power metering with power management (PM) devices, smart plugs, and smart bulbs in order to allow you to build complex automation solutions for improved energy efficiency and lower electricity bills. Shelly devices are compatible with other most widely accepted both local and cloud based home automation platforms. A Shelly Smart Control App user account is required to access, include, and control Shelly devices through the Shelly Smart Control application and include your Shelly devices to 3rd party home automation or voice assistant platforms like SmartThings, Amazon Alexa or Google Home.

• Easy Inclusion and Control: Include and name new devices in the Shelly Smart Control app, assign them to the rooms they are located in, and group them into scheduled or automated scenes.
• Custom Dashboard: Create multiple dashboards for quick access to your preferred devices, rooms, and scenes. Issue commands using your dashboards or your preferred voice assistant towards individual devices or a group of devices.
• Smart Scenes: Combine multiple devices into one smart scene with pre-set triggered actions. Lower the lights when the TV is turned on for a "Movie night". Cut off the power and send a notification when a space heater has been left on past 9am while you are "Away at Work".
• Custom Schedules and Timers: Teach your home how to make you more comfortable by setting custom schedules based on your agenda. You can set a Shelly controlled switch to turn on the outdoor lights at 7:00 PM on workdays, or turn on your heater an hour before you return from work.
• Energy Monitoring: An energy consumption panel gives you a detailed view of your live and recorded energy usage from devices controlled by Shelly Qubino products. The information is stored in a free cloud and fully accessible to you for further analysis of your energy consumption habits.
• Works with Alexa: The Shelly Smart Control app is natively compatible with Amazon Alexa.

Contents

• Shelly Plus RGBW PM
• Manual

NOTE: Requires connection to a Wi-Fi network.

Shelly Provides A 100% Wireless Smart Home

Shelly creates innovative and affordable smart home devices for residential and business applications. Shelly, formerly Qubino, now focuses on providing Wi-Fi and Z-Wave compatible smart home solutions. Shelly devices are among the smallest automation control devices in the world, allowing them to find their place in nearly any sized smart home installation. Shelly utilizes the latest technologies to deliver superior automation, safety, and energy efficiency to their customers without breaking down their walls or bank accounts.

• Manufacturer Part #: Plus RGBW PM
• Model: SNDC-0D4P10WW
• EAN: 3800235265635
• Warranty: 3 Year

Physical

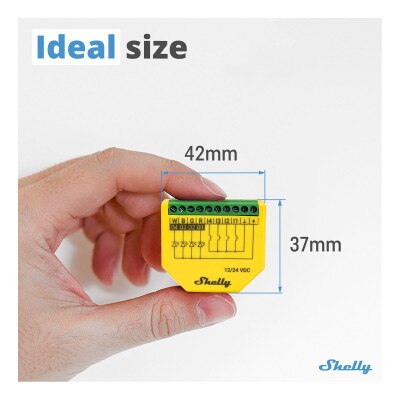

• Size (H x W x D): 1.65 x 1.46 x 0.66 ±0.02 inch (42 x 37 x 12 ±0.5 mm)
• Weight: 17 g / 0.60 oz
• Mounting: In-Wall
• Screw Terminals Max. Torque: 0.2 Nm / 1.8 lb in.
• Conductor Cross Section: 0.1 to 1 mm² / 30 to 16 AWG (solid, stranded, and bootlace ferrules)
• Conductor Stripped Length: 6 mm / 0.24 in
• Shell Material: Plastic
• Shell Color: Yellow
• Connectors Color: Green

Environmental

• Ambient Working Temperature: -20°C to 40°C / -5°F to 105°F
• Humidity: 30 % to 70 % RH

Electrical

• Power Supply: 12/24 VDC
• Power Consumption: <1.2 W

Output Circuits Ratings

• Max. Control Voltage: 24 VDC
• Max. Control Current: 4 A per channel (10 A total)
• PWM Frequency: 22 kHz

Sensors, Meters

• Voltmeter: 0-24 V
• Voltmeter Accuracy: ± 5%
• Ammeter: 0-10 A
• Ammeter Accuracy: ± 10%
• Power and Energy Meters: Power measurement
• No Load Threshold: 0.5 VA per channel
• Internal-Temperature Sensor: Yes

Radio

• Wi-Fi:
• Protocol: 4.2
• RF Band: 2400 – 2483.5 MHz
• Max. RF Power: <4 dBm
• Range (Depends on Local Conditions): Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
• Bluetooth:
• Protocol: 802.11 b/g/n
• RF Band: 2401 – 2495 ÐœHz
• Max. RF Power: <20 dBm
• Range (Depends on Local Conditions): Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors

Microcontroller Unit

• CPU: ESP-Shelly C38F
• Clock Frequency: 160 Mhz
• RAM: 400 KB
• Flash: 4 MB

Firmware Capabilities

• Schedules: 20
• Webhooks (URL actions): 20 with 5 URLs per hook
• Scripting: Yes
• MQTT: Yes
