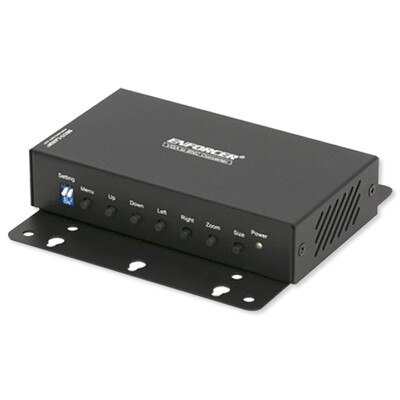

Seco-Larm Enforcer VGA-to-BNC Converter, 1024x768 Resolution

SKU: SEVC2VAQ

Usually ships in 3-5 days.

$88.96

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

View VGA Signals on Devices With BNC Connectors

Want to view a VGA signal on a TV, monitor, or other viewing device that only accepts a BNC connector? Simply use the Seco-Larm Enforcer VGA-to-BNC Converter (1024x768 Resolution) to convert the VGA signal to a BNC signal. It's great for connecting a DVR with a VGA output to an existing monitor with a BNC input.

  • Converts VGA signals to BNC signals
  • Perfect for CCTV/home surveillance applications
  • Auto-configures resolution up to 1024x768 (75Hz)
  • Gold-plated BNC connector for longer life
  • Desktop, wall, or VESA mountable

The Converter features an included VESA mounting bracket and screws for attachment to the VESA mount found on most VGA monitors. Additional screws are included for alternative mounting to a wall or non-VESA monitor, and rubber feet are included for tabletop placement.

Contents

  • VGA-to-BNC Converter
  • 5VDC Power Adapter
  • Mounting Bracket (VESA-compatible)
  • (4) VESA Mount Screws
  • (4) Monitor Mount Screws
  • (4) Wall-Mount Screws
  • (4) Plastic Wall Anchors
  • (4) Rubber Feet
  • Owner's Manual

Building A Secure Future Since 1971

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether it's physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers an extensive range of dependable, cost-effective security products with a full program of service and support.

Specifications

Product Features

  • Video standards: NTSC/PAL
  • Dual composite video (BNC) and VGA output ports
  • On-screen display (OSD) for image adjustments including size, brightness, contrast, hue, saturation, sharpness, and more
  • Quick installation – no driver or operating system requirements

Technical Details

  • Manufacturer Part #: VC-2VAQ
  • Type: VGA to BNC
  • Input Signal: VGA
  • Output Signal: VGA: 0.7 Vp-p RGB, 15 pin female D-sub, Composite Video 1Vp-p 75ohm BNC
  • Maximum Resolution: Up to 1024x768 NTSC: 720x480 PAL: 720x576
  • Current Draw: 500mA@5VDC
  • Power Supply: 1A@5VDC, 2.5mm
  • Dimensions: 4-13/16 x 3-3/16 x 1-1/16 inches (122 x 81 x 27 mm)
  • Weight: 9.3 ounces (265g)
  • Approvals: CE, RoHS
  • Warranty: 1 Year

Downloads

»Seco-Larm Enforcer VC-2VAQ VGA to BNC Converter Spec Sheet (.pdf)
»Seco-Larm Enforcer VC-2VAQ VGA to BNC Converter User Manual (.pdf)
»Seco-Larm Enforcer VC-2VAQ VGA to BNC Converter Diagram (.pdf)
